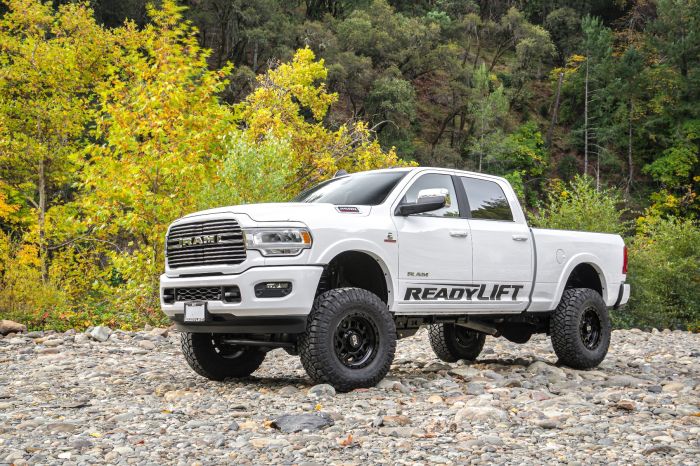

2019-2024 Ram HD 6" Lift Kit w/ Falcon Shocks (49-19610)

The ReadyLIFT 6-inch Lift Kit is a premium, all-new 4-corner coil spring suspension system designed for Ram 2500 HD trucks equipped with the Standard Output Cummins turbodiesel engine. This comprehensive kit provides a 6-inch front lift with a coil spring rear lift, delivering a beefy, tough look and plenty of clearance for aggressive tires. A key feature of this kit is the integrated Driveline Indexing System (DIS), which includes a transfer case clocking ring and a heavy-duty steel crossmember to re-clock the transfer case, align the front output shaft, and address potential driveline vibration issues common after lifting. The kit is designed to maintain factory suspension geometry, articulation, and turning radius when using recommended tire and wheel sizes.

Features

• Provides 6-inch front lift and coil spring rear lift for a perfect lifted stance.
• Includes a Driveline Indexing System (DIS) with a transfer case clocking ring and a heavy-duty steel transmission crossmember.
• Features proprietary front and rear coil springs.
• Includes heavy-duty radius arm drop brackets.
• Includes heavy-duty fabricated steel front and rear track bar brackets.
• Comes with a forged dropped Pitman arm.
• Includes front and rear sway bar relocation brackets and bump stop extensions.
• Comes with four Falcon 1.1 Monotube shocks tuned specifically for the Ram 2500 HD.

Notes

• This kit addresses a potential ratchet-type clicking noise heard in 4WD while turning by re-clocking the transfer case.
• Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT.
• Does not work with Factory Air suspension or Auto Level system (factory helper bags).

Compatibility Notes

• Only available for the 2500 HD Standard Output Motor and the 68RFE Transmission.
• For use on the Ram 2500 HD Diesel engine trucks only (excludes gasoline-engine applications).

Tire Fitment

• Allows for up to 37x12.50 tires.
• Maximum recommended wheel size is 9.5-10 inches wide with -18 offset for 37x12.50 tires.
• Maintains factory turning radius without rubbing when using the recommended wheel and tire size.

Specs

• Front Lift: 6.0 inches
• Rear Lift: Coil Spring lift (4-inch rear coil spring spacers listed in components)
• Maximum Tire Diameter: 37 inches
• Shock Type: Falcon 1.1 Monotube Front and Rear Shocks

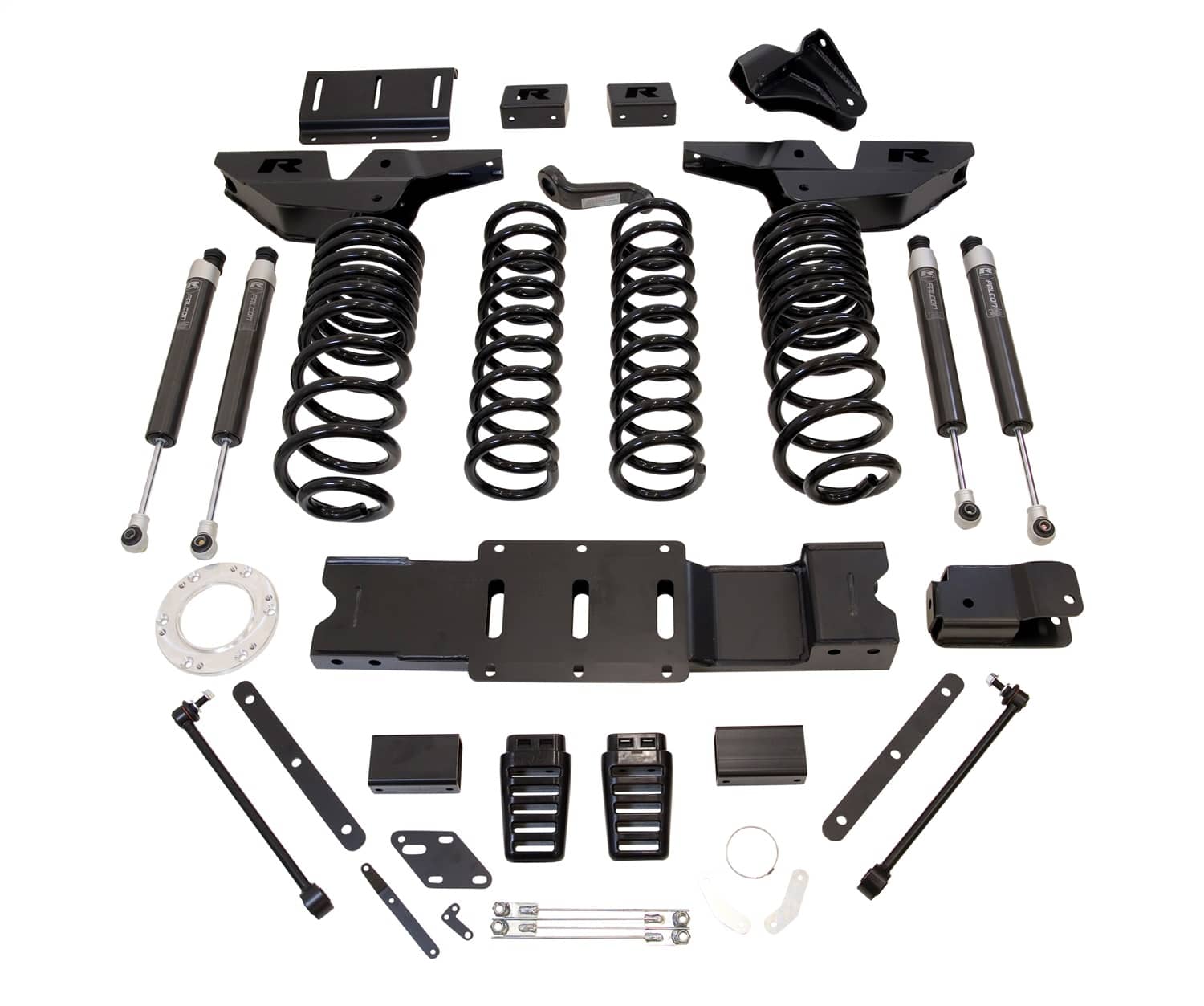

• Kit Contents: 6-inch Front Lift Spring, 4-inch Rear Lift Rear Coil Spring Spacers, Falcon Shocks (Front and Rear), Radius Arm Drop Brackets, Front and Rear Track Bar Brackets, Front and Rear Sway Bar Relocation Brackets, Pitman Arm Drop, Transmission Crossmember, 6-Bolt Clocking Ring, Brake Line Brackets, Bump Stop Extensions, and Hardware Pack.
