2019-2023 Ranger 2" Leveling Kit with FOX 2.0 Performance Shocks (BDS1544FS)

Level the front of your 2019-2023 Ford Ranger truck by installing this 2-inch leveling kit from BDS. Specially designed for the new Ranger, this 2 Inch leveling kit is engineered for additional Tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop.

Features

• Front Lift Method: Strut Spacer
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 Inch
• Rear Lift Height: 0 Inch
• Aftermarket wheels must have a minimum of 93.1mm center hub bore.
• Easy, 100 percent Bolt-on installation
• Maintains factory like ride quality
• Standard NX2 Nitro shocks with vehicle-specific valving for better control
• Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Details

To prevent maxing out ball joints or CV damage, BDS gets around this issue by using a 2-piece design with a smaller top mounted steel strut spacer in combination with a preload spacer.

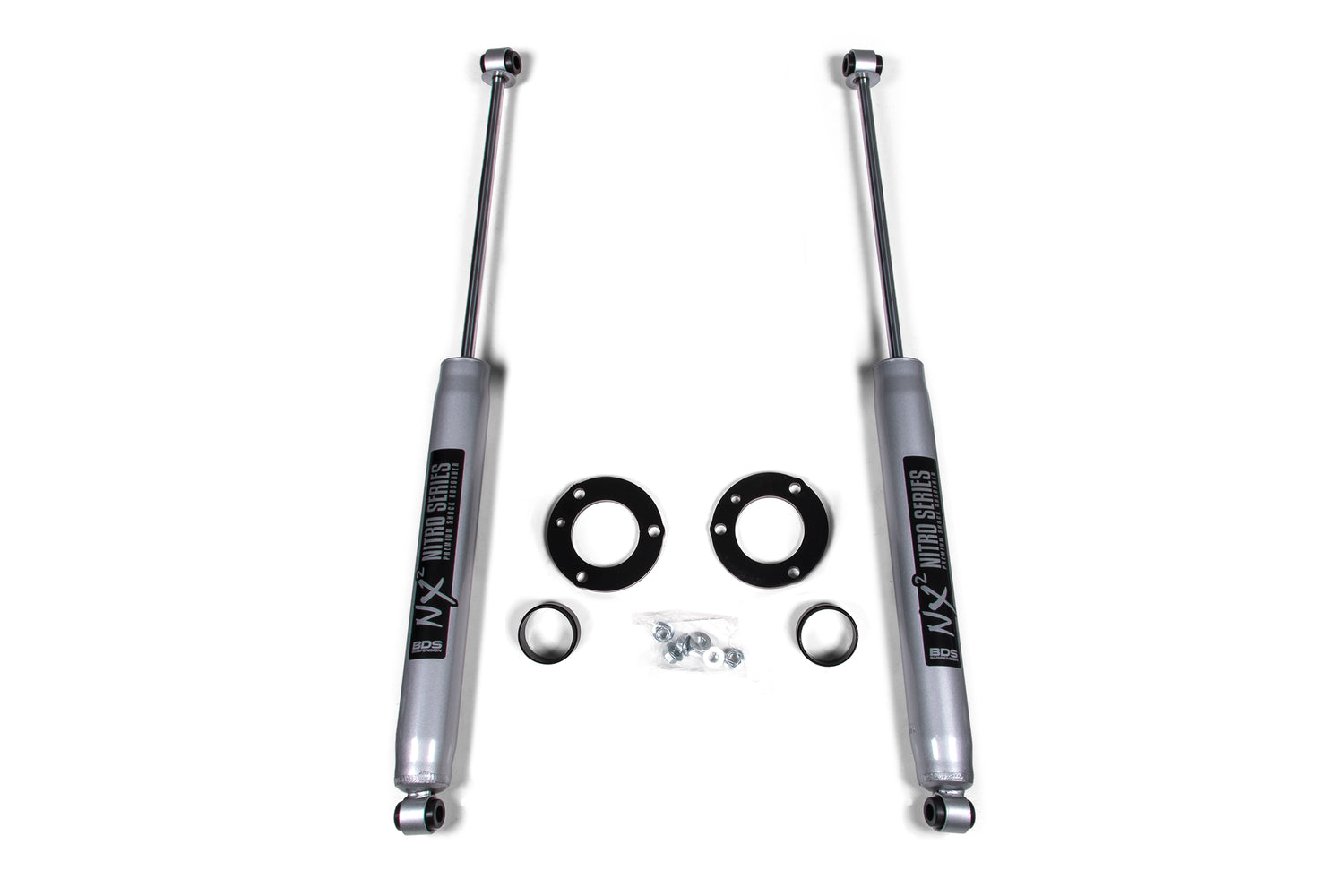

The lift kit includes steel top mount strut spacers, pre-load spacer and custom-tuned NX2 Nitro or FOX Performance series shocks. Give your new Ranger the extra boost with this 2 Inch leveling kit from BDS Suspension.

FOX 2.0 Performance Series

Tire Size: 285 / 65 Wheel Diameter: 18 x 9

Includes one BDS013203, 2019-2023 Ford Ranger 2 Inch Leveling Kit, UPC Code 658848613106

Includes two FOX98224880, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
