2019-2023 Ranger 3.5" Lift Kit with FOX 2.0 Performance Shocks (BDS1545FSL)

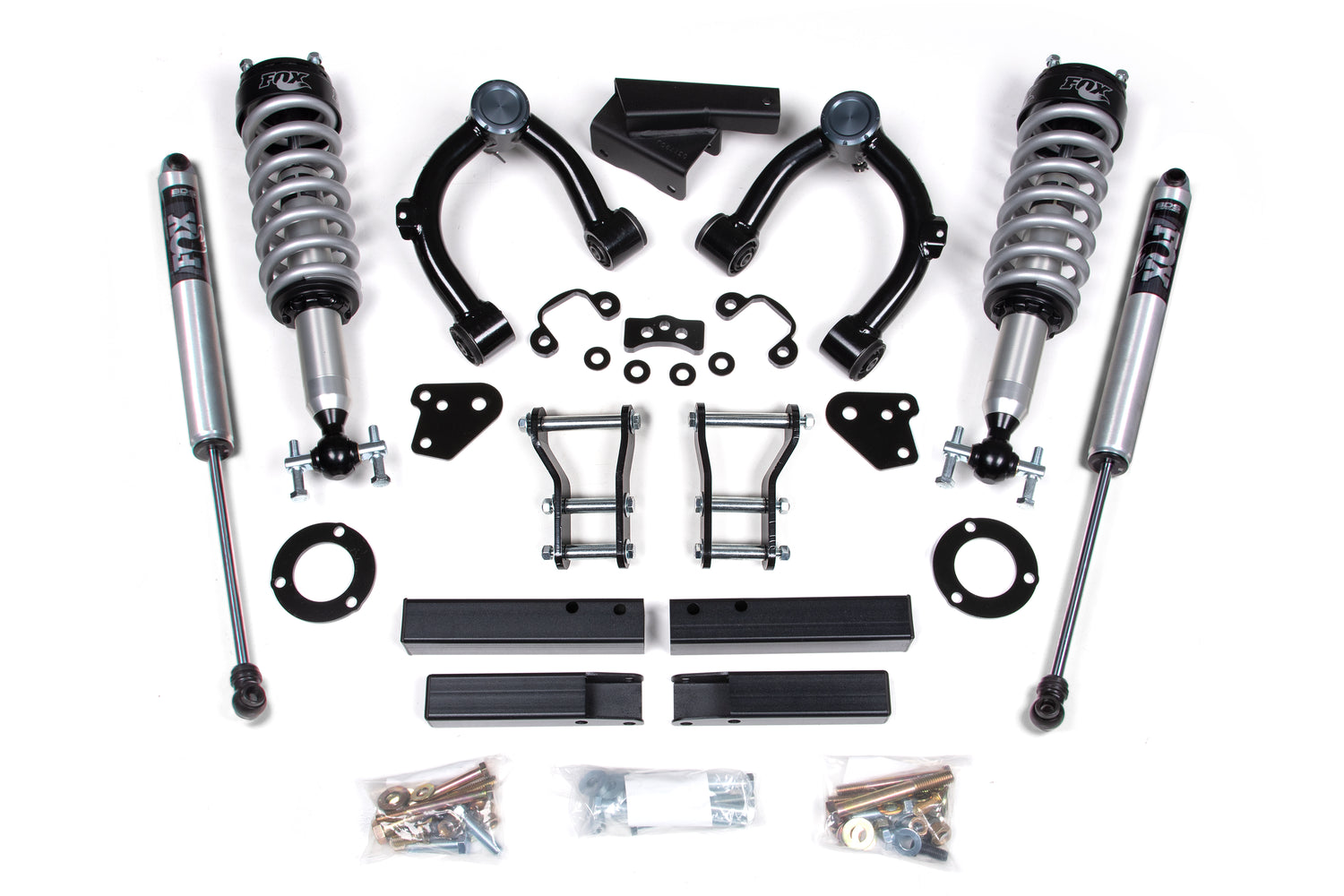

BDS 3.5" lift kit with FOX 2.0 coil-over shocks for 2019-2023 Ford Ranger trucks, with clearance for up to 285/65-18 and 305/55-20 tires. It is engineered for added tire clearance and performance without overextending suspension or driveline angles at full droop. Up front are steel top mount strut spacers, pre-load spacers, differential relocation brackets that correct CV axle angle while retaining the factory skid plates, and tubular HD upper control arms. The rear uses heavy-duty lift shackles and matching FOX 2.0 Performance shocks.

The FOX 2.0 coil-overs are a direct bolt-in replacement for the factory strut, with a 6061 T6 aluminum body, internal floating piston, and a 5/8" hard chrome plated alloy shaft. The HD upper control arms use 1.5" OD x .120-wall tubing with an indexed ball joint cup for additional down travel and camber adjustment, durometer-specific frame bushings, and a greaseable ball joint.

Features

• FOX Performance IFP shocks eliminate oil aeration for max performance from the factory-tuned valving
• HD upper control arms provide superior strength and proper alignment
• Adjustable height to fine tune
• 100 percent bolt-on installation
• FOX shocks are fully serviceable and corrosion resistant

Notes

• Trimming may be required
• Ford produces two knuckle/control arm configurations on 2020+ Rangers; cast steel knuckle models use different ball joints than aluminum knuckle models. Verify your factory knuckle before ordering using the help images.
• 285/65 with 18x9 and 5.75" backspace
• 305/55 with 20x9 and 5" backspace

Includes

• BDS013350, 2019-2023 Ford Ranger Coilover 2.5 inch-3.5 inch Box kit (UPC 658848613311)
• BDS123614, 2019-2023 Ford Ranger Intrusion Beam Kit (UPC 711745604414)
• FOX98224880, Fox 2.0 Shock 26.35 x 16.75 x 2- EB1/EB1
• FOX98502133, 19-ON Ford Ranger, Front Coilover, PS, 2.0, Internal Floating Piston, 4.5 inch, 0-3 inch Lift (UPC 788000424551)
