2019-2023 Ranger 3.5" Lift FOX 2.5 DSC Coilover UCA Kit (BDS1587FPE)

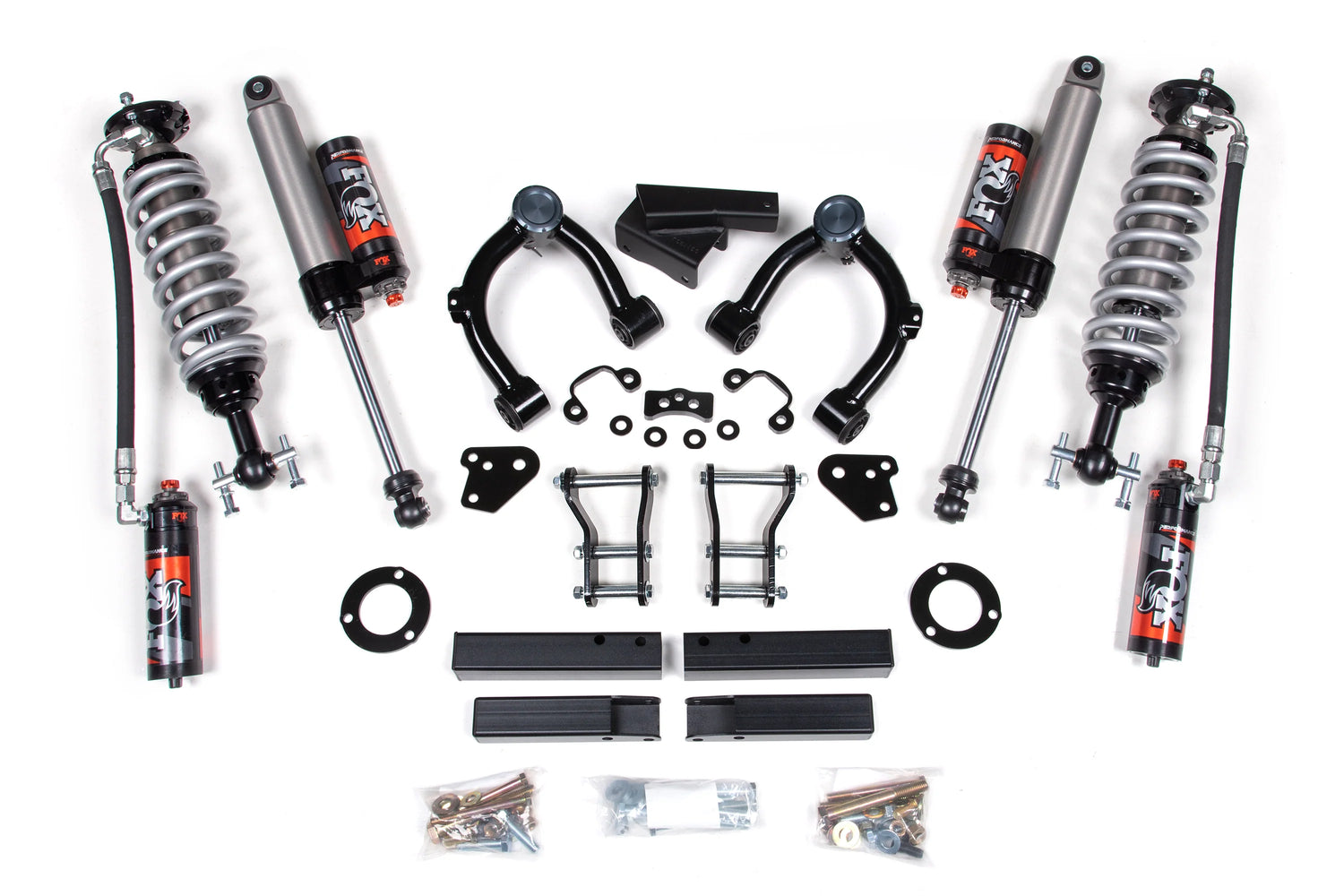

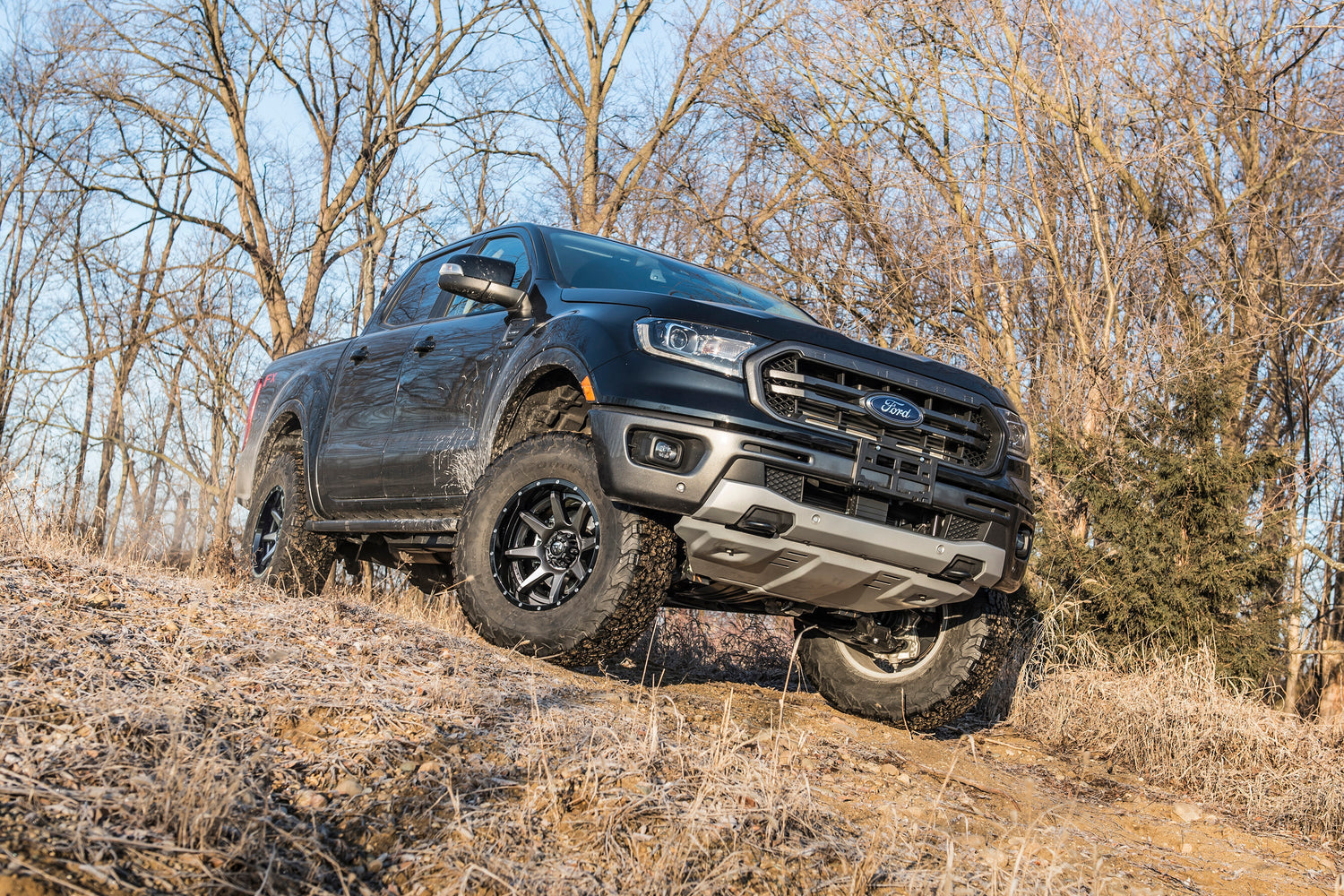

Engineered for the Ford Ranger, this 3.5-inch lift system pairs FOX 2.5 DSC coil-over shocks with a complete upper control arm kit to deliver enhanced off-road capability without sacrificing highway composure. The coil-over design maximizes suspension articulation on technical terrain while maintaining predictable handling on pavement. This bolt-on kit includes all necessary hardware and geometry-corrected components to accommodate up to 33-inch tires and preserve proper drivetrain angles. Purpose-built for serious Ranger owners seeking balanced performance across varied driving conditions.

Features

• FOX 2.5 coil-over shocks designed specifically for increase travel and the ability to soak up the roughest terrain
• DSC adjuster adds remarkable versatility and precise tuning with a simple twist of either two adjuster knobs
• High clearance crossmembers improve strength and offroad capability
• Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
• Top mounted strut spacers to provide lift and install easily
• Differential skid plate for improved offroad protection
• Rear lift blocks and u-bolts to lift and level the stance


Shock Features

• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• DSC - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Notes

• Aftermarket wheels must have a minimum of 93.1mm center hub bore.
• Tires larger than 285/70r17 or 285/65r18 cannot be installed on factory wheels due to steering knuckle clearance.
• Will NOT work on trucks equipped with cast steel steering knuckles
• For 3" - Ford produces two knuckle/control arm configurations In 2019-2023 Model Rangers. Cast Steel Knuckle Equipped Models Have Different Ball Joints Than Models Equipped With Aluminum Knuckles. Be Sure To Verify Which Factory Knuckle Your Truck Has Before Ordering.
• Does not work on Tremor models

Specifications

• Front Lift Method : Coil-Over
• Front Lift Height : 3.5"
• Rear Lift Method : Block
• Rear Lift Height : 1.5"
• Shocks Included : Yes
• Lift Height : 2-3.5"

Tire Fitment

• 285 / 65 with 18 x 9 and 5.75 in. Backspace
• 305 / 55 with 20 x 9 and 5 in. Backspace
