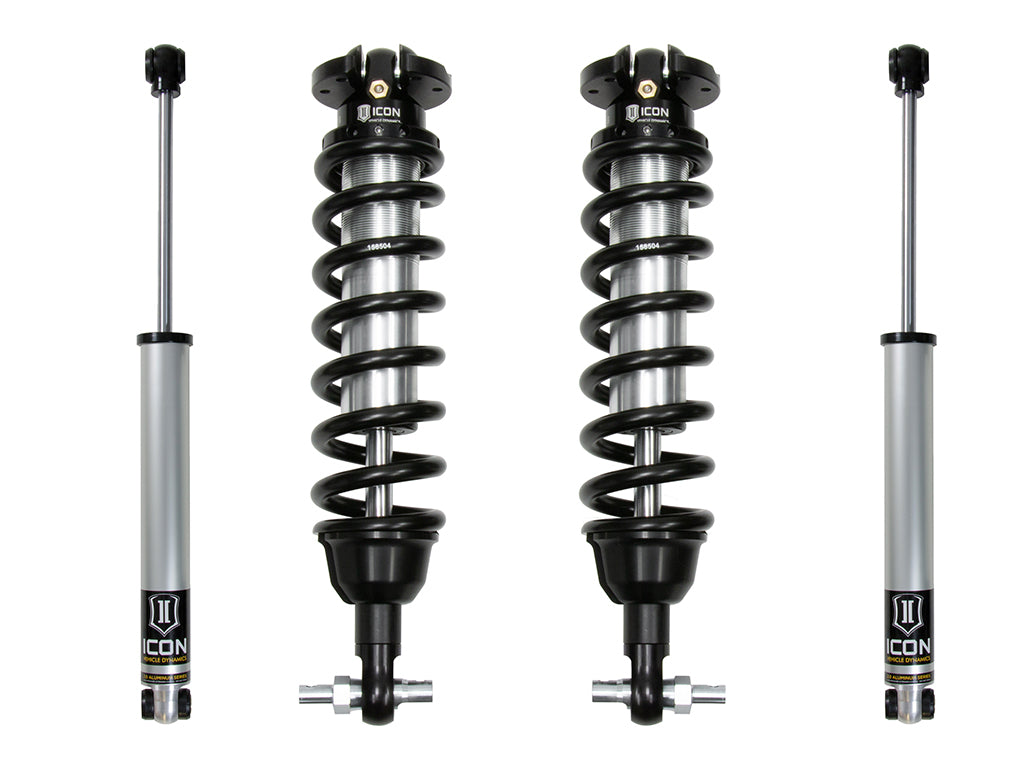

2019-2023 Ranger Front and Rear Lift Kit (ICOK93201)

Level up your 2019-2023 Ranger with this complete ICON suspension system. 0-3.5" of lift gets you the clearance for bigger tires without killing your ride quality. Everything in this kit is tuned to work together — springs, shocks, and hardware designed as a complete package.

Features

• Height-adjustable coilovers provide a range of 0-3.5" of front lift height
• Fits 2WD & 4WD applications
• Increased lift height allows for fitment of larger and more aggressive tires
• Up to 25% increase in front wheel travel over stock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Corrosion resistant anodized shock body with 5/8″ shaft (2.0 Aluminum Series shocks)
• Corrosion resistant CAD plated shock body with 7/8″ shaft (2.5 Series shocks)
• FK Rod End bearings provide extended longevity and minimal deflection
• Shocks are fully rebuildable and revalvable
• Direct bolt-in design makes for a simple and straightforward installation
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

Wheel & Tire Recommendations

• ICON Alloys - 17x8.5" w/ 5.75" Backspace / 25mm Offset
• ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
• Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Important Notes

• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Minor Trimming Required For Recommended Tire Size
• Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
• Not compatible with Ranger Raptor
• Included rear shocks are compatible with 0-1.5" of rear lift over stock.

Manufacturer Description

ICON Vehicle Dynamics 2019-2023 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel" through the range of travel. These coilovers are also height adjustable from 0-3.5" allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2023 Ford Ranger Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
