2019-2024 GM 1500 1.5" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS773FDSC)

Up the ante in your Chevy Trail Boss or GMC AT4 1500 (2019-2024) with this BDS 1.5" lift kit featuring FOX Performance Elite 2.5 coil-over shocks, with clearance for up to 35" tires (Chevy) or 33" tires (GMC). Up front it includes FOX 2.5 Performance Elite remote reservoir coil-over shocks and heavy duty tubular upper control arms. The rear uses fabricated steel lift blocks, longer u-bolts, and a complementary set of FOX 2.0 Performance shocks. The coil-overs add a remote reservoir for cooling and Dual Speed Compression Adjust offering 10 low-speed and 12 high-speed settings.

Features

• FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
• Dual Speed Compression Adjust adjuster allows easy high-speed and low-speed compression tuning
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 Performance Series IFP rear shocks included
• FOX 2.0: 2" Impact extruded aluminum body, IFP monotube design, 6061-T6 mounting ends, 5/8" hard chrome shaft, clear anodized finish
• FOX 2.5 Performance Elite: 2.5" Impact extruded aluminum body, 7/8" hard chrome shaft, external reservoir, fully serviceable
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent bolt-on installation
• 1-year manufacturer's warranty

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 1.5 inch
• Rear Lift Height: 0 inch

Recommended Tire & Wheel Fitment

• Tire Size: 33x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.5

Notes

• Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
• Requires a maximum of 5.5" backspacing wheel for tire clearance to the upper ball joint.
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper; some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition.

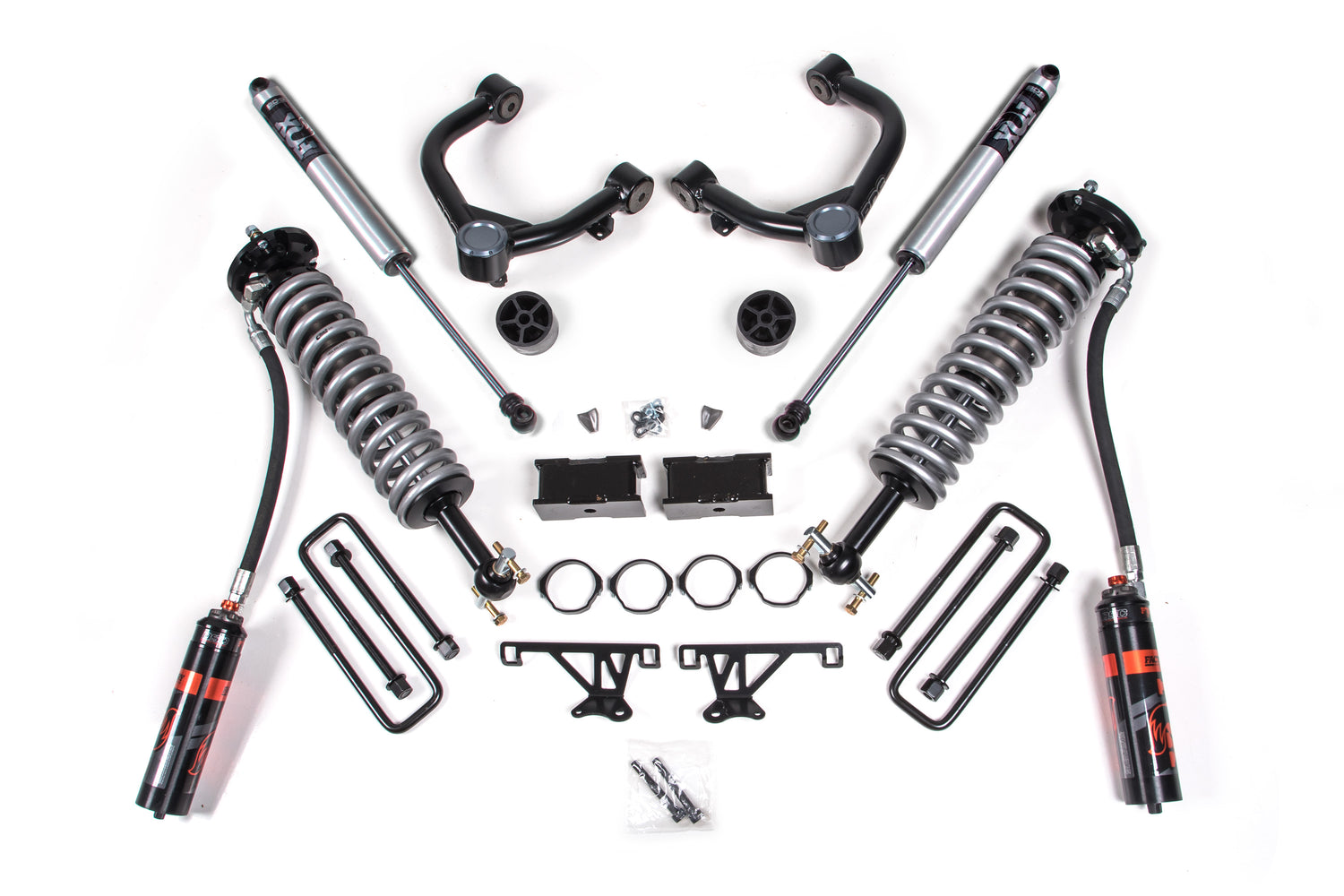

Includes

• BDS011350, 2019-2024 Chevrolet Silverado/GMC Sierra 1500 Coilover 3.5 inch Box Kit (UPC 658848611775)
• FOX88306162, Kit: 2019-2024 GM 1500, w/UCA, Front Coilover, 2.5 Series, AL, R/R, 6.0 inch, Non-TB/Non-AT4 3.5 inch Lift, TB/AT4 1.5 inch Lift (UPC 711745603943)
• FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
