2019-2024 GM 1500 1.5" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS774FDSC)

Up the ante in your Chevy Trail Boss or GMC AT4 1500 truck with style and performance by installing this 1.5-inch lift kit featuring FOX Performance Elite 2.5 coil-over shocks from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires (Chevy) or 33 inch tires (GMC). Up front the lift kit includes FOX 2.5 Performance Elite Series remote reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes fabricated steel lift blocks, longer u-bolts and a complementary set of FOX 2.0 Performance shocks for the smoothest ride. FOX Performance Elite

Features

• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper. Some wheel profiles will not clear the brake caliper. These can be test fitted before the vehicle is lifted in a stock condition
• Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
• FOX 2.5 Performance Elite coil-overs offer improved damper performance over stock
• Dual Speed Compression Adjust Adjuster allows easy high-speed and low-speed compression tuning for optimal performance in any terrain
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series Internal Floating Piston rear shocks included
• Factory Protection Plus drivetrain warranty included
• Easy, 100 percent Bolt on installation
• Increased off-road capabilities
• Easily adjust your shock for terrain, load and speed
• 2.5-inch Impact extruded aluminum body
• Massive 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjust - Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 1.5 inch
• Rear Lift Height: 0 inch
• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 1.5 inch
• Rear Lift Height: 0 inch

Recommended Tire & Wheel Fitment

• Tire Size: 33x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.5

Notes

• Requires a maximum of 5.5 inch BS Wheel for tire clearance to the upper ball joint

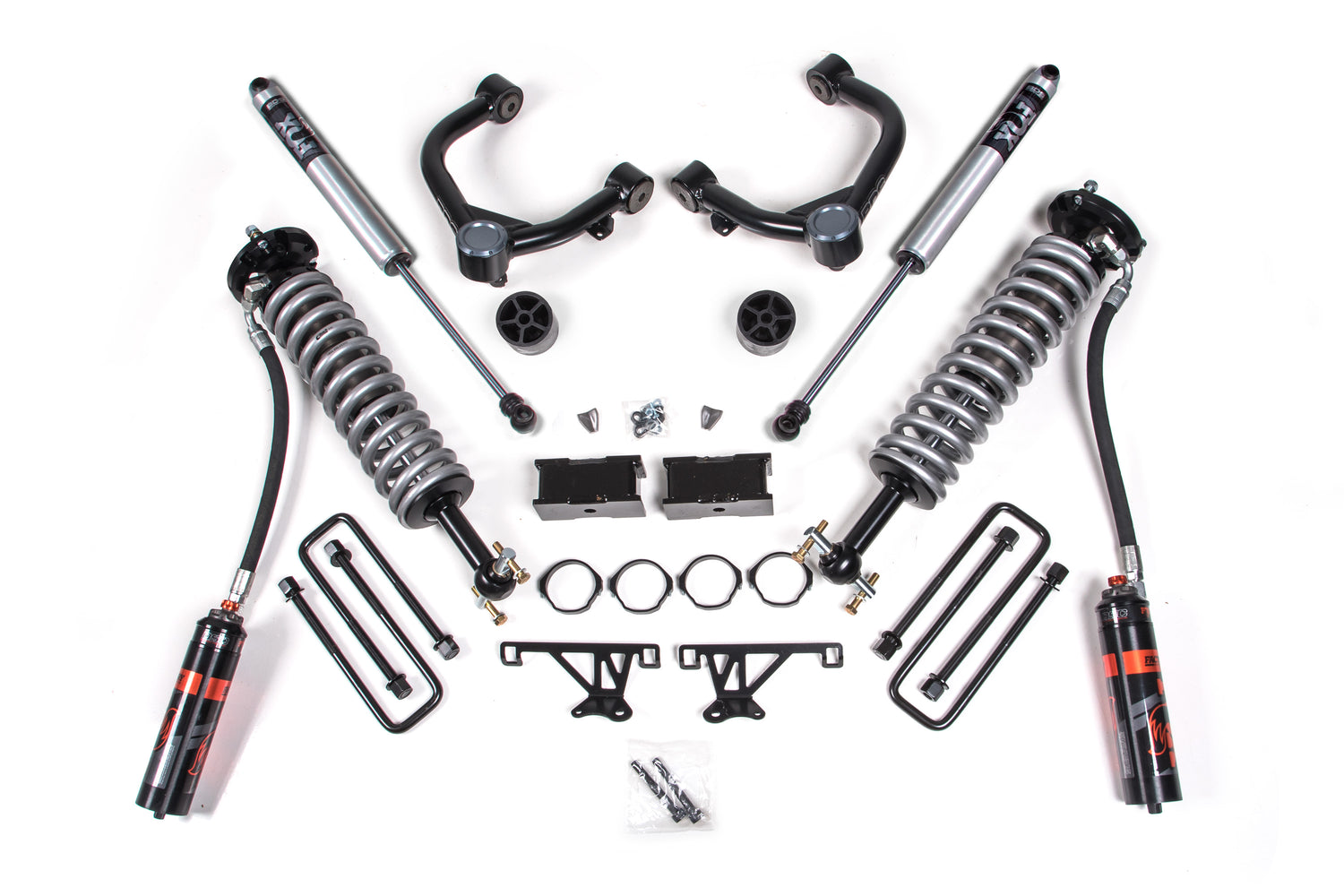

Includes

• BDS011350, 2019-2024 Chevrolet Silverado/GMC Sierra 1500 Coilover 3.5 inch Box Kit (UPC 658848611775)
• FOX88306162, Kit: 2019-2024 GM 1500, w/UCA, Front Coilover, 2.5 Series, AL, R/R, 6.0 inch, Non-TB/Non-AT4 3.5 inch Lift, TB/AT4 1.5 inch Lift (UPC 711745603943)
• FOX88326087, 2019-2024 GM 1500, Rear, 2.5 Truck Fox Performance Elite Series, R/R, 10.5 inch, Non-TB/Non-AT4 2.5-4 inch Lift, TB/AT4 0-2 inch Lift, Dual Speed Compression Adjust (UPC 711745591349)
