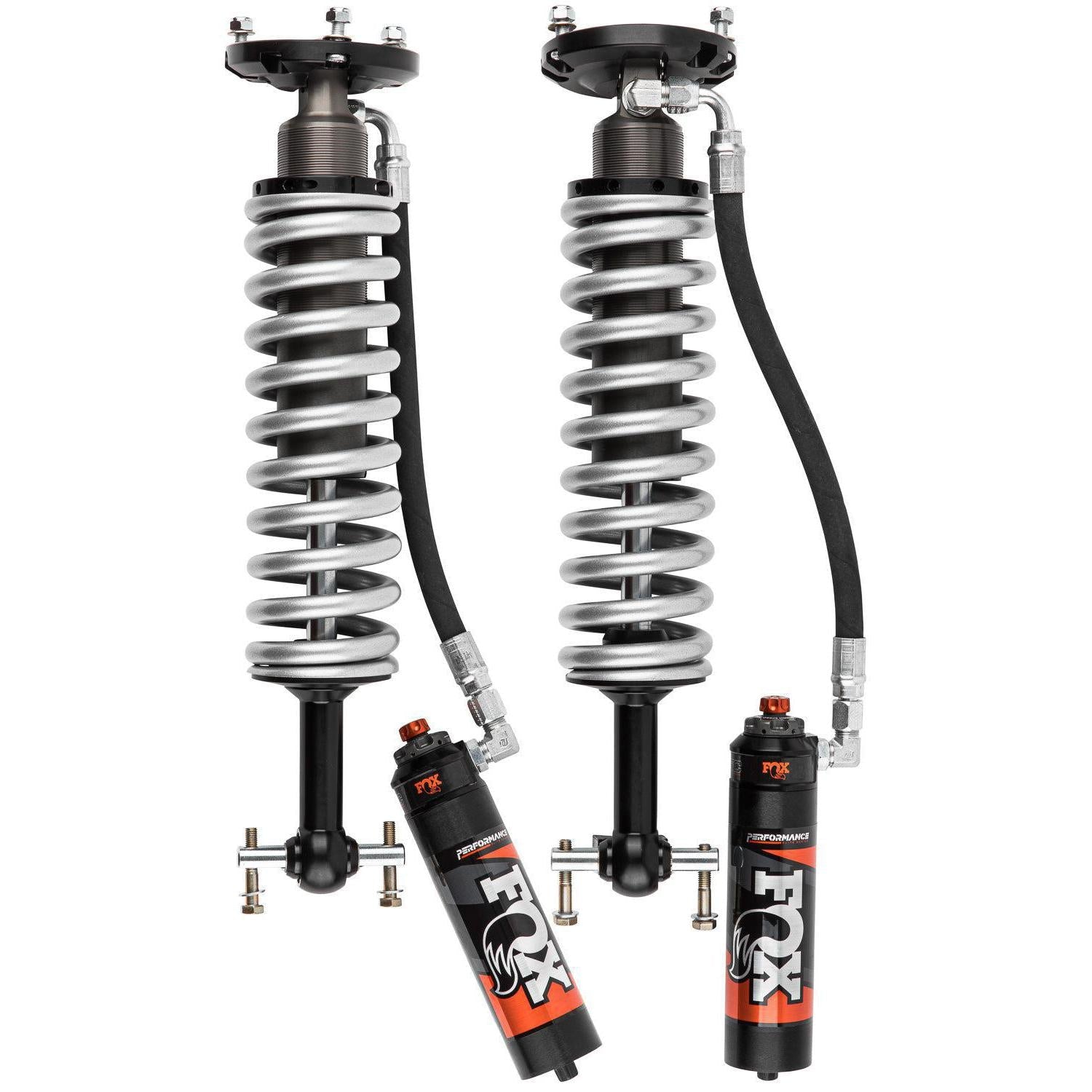

2019-2025 1500 2.5 Elite Series 3.5" Front R/R Coilover (883-06-162)

Description

Coil-over shocks provide suspension damping and suspend the weight of the vehicle. The integrated coil spring can be adjusted for preload and ride height and comes pre-set to level your vehicle right out of the box. Experience the incredible performance and precise control the Elite Series Coil-over Reservoir shocks deliver.

Part Number: 883-06-162

Features

• Includes Reservoir Bracket
• Durable Zinc Plated Seamless Alloy Body
• External Reservoir System Dissipates Heat Fast

• Body Plating Hard-anodized for a durable finish
• Black-anodized CNC-machined 6061-T6 billet aluminum
• 7/8" hard chrome plated steel Shaft
• Piston 6061-T6 hard-anodized, high flow aluminum Piston
• Application specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, scraper seal
• PTFE-lined, heat-treated, alloy steel spherical bearings

Specs:

• Extended Length 22.81
• Compressed Length 16.94
• Top Mount TM

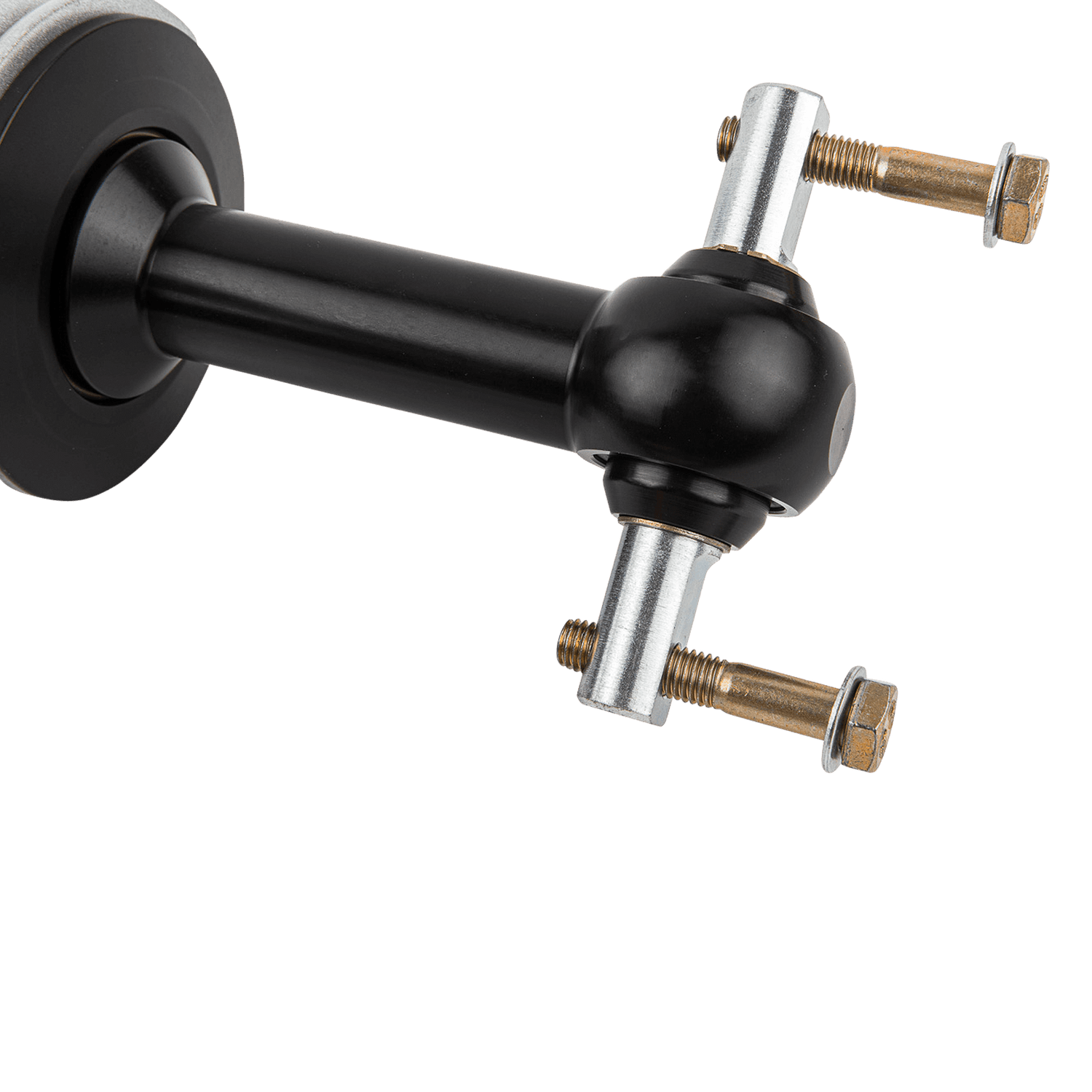

• Bottom Mount BP7
• Travel 5.87
• Front Lift Height 3.5


Notes

• Requires Upper Control Arm

• Trail Boss Models Fit 1.5" Lift Only
