2014-2025 GM 1500 Lift Kit with FOX 2.5 Performance Elite Shocks (BDS790FDSC)

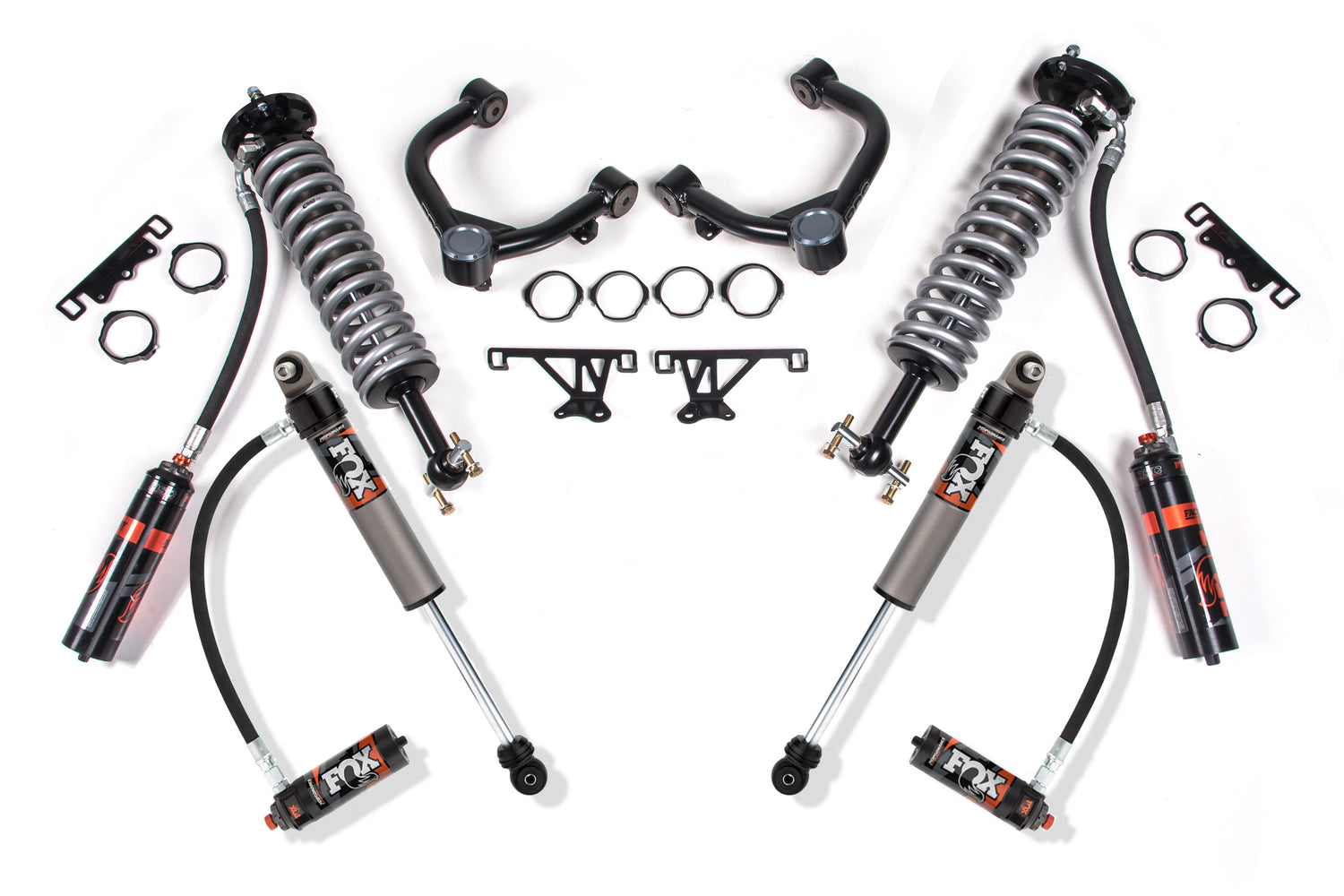

Maximize the performance of your 2014-2025 Chevy Trail Boss / GMC AT4 1500 with this BDS FOX Performance Elite 2.5 coil-over kit, with clearance for up to 33" tires. Up front it includes FOX 2.5 Performance Elite remote-reservoir coil-over shocks and heavy duty tubular upper control arms for increased strength; the rear runs a complementary set of FOX 2.0 Performance shocks. The race-proven 2.5" remote-reservoir shocks tune out of the box, with a Dual Speed Compression adjuster offering 10 low-speed and 12 high-speed compression levels.

Features

• FOX 2.5 Performance Elite coil-overs for improved damper performance over stock
• Dual Speed Compression adjuster for high-speed and low-speed compression tuning
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series rear shocks included
• Factory Protection Plus drivetrain warranty included
• 100 percent bolt-on installation

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 0 Inch
• Rear Lift Height: 0 Inch

Recommended Tire & Wheel Fitment

• Tire Size: 295/65, 295/60
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5.5/5.53

Notes

• Requires a maximum 5.5 inch backspacing wheel for tire clearance to the upper ball joint.
• All aftermarket wheels should be test fit prior to mounting the tire to ensure proper clearance to the brake caliper; some wheel profiles will not clear the caliper. Test fit before lifting the vehicle.
• Will NOT fit models with a single leaf spring (monoleaf) rear suspension.
• 2.7L Turbo models use the Diesel kit for proper skid plate fitment.

Includes

• BDS121253, X - 2019-2024 GM 1500 Upper Control Arm Kit - 2 Inch and 6 Inch Lift Applications Only (UPC 658848618941)
• FOX88306157, Kit: 2019-2024 GM 1500 Front Coilover, 2.5 Series, AL, R/R, Non-TB/Non-AT4 0-2 Inch Lift, TB/AT4 No Lift (UPC 711745603936)
• FOX88326087, Kit: 2019-2024 GM 1500, Rear, 2.5 Truck FRS, R/R, 0-1.5 Inch Lift, Dual Speed Compression Adjust (UPC 711745603950)
