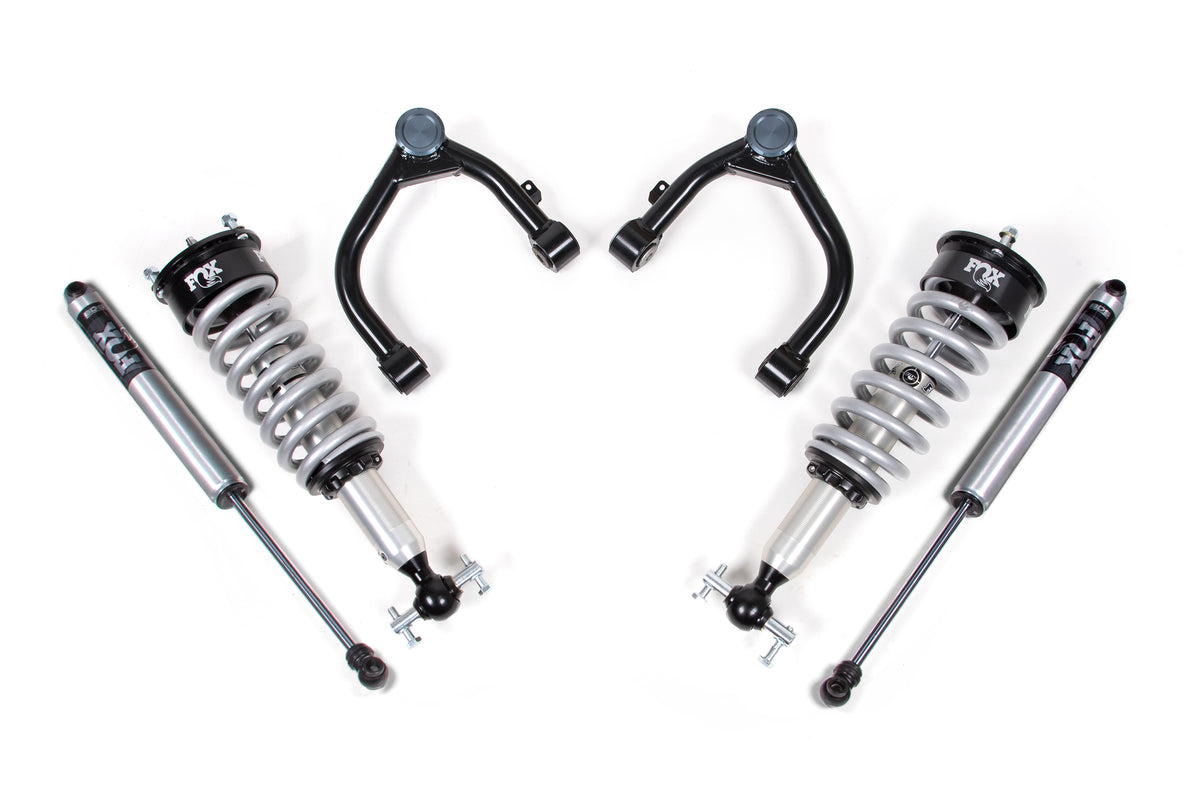

2014-2025 GM 1500 2" Lift Kit (BDS770FSL)

Level out your 2014-2025 Chevy Silverado / GMC Sierra 1500 and improve the ride with this BDS 2" leveling kit featuring FOX 2.0 coil-over shocks, with clearance for up to 33" tires. Up front it includes FOX 2.0 Performance Series coil-over shocks and heavy duty tubular upper control arms for increased strength; the rear runs a matching set of FOX 2.0 Performance shocks. The direct bolt-in coil-overs use a 2.0" extruded 6061-T6 aluminum body, internal floating piston, 5/8" hard chrome heat-treated shaft, and ship preloaded with springs and top-plate.

Features

• FOX 2.0 performance series coil-overs for improved damper performance, a direct bolt-in replacement
• 2.0 inch extruded and machined 6061-T6 aluminum body for better heat dispersion
• Internal floating piston eliminates oil aeration
• 5/8 inch hard chrome plated heat-treated alloy shaft
• Preloaded with springs and top-plate for easy installation
• Performance UCAs increase strength and allow for more suspension travel
• FOX 2.0 performance series rear shocks included
• Factory Protection Plus drivetrain warranty included
• 100 percent bolt-on installation

Specs

• Front Lift Method: Coil-Over
• Rear Lift Method: Stock
• Shocks Included: Yes
• Front Lift Height: 2 inch
• Rear Lift Height: 0 inch

Recommended Tire & Wheel Fitment

• Tire Size: 295/65, 295/60
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5.5/5.53

Notes

• Requires a maximum 5.5 inch backspacing wheel for tire clearance to the upper ball joint when used on 2-3.5 inch kits.
• Can be used on Trail Boss / AT4 models, but will net 0 inch lift.
• Will not fit models equipped with ARC.

Includes

• BDS121253, X - 2019-2024 GM 1500 Upper Control Arm Kit - 2 inch and 6 inch Lift Applications Only (UPC 658848618941)
• FOX98224719, Fox 2.0 Shock 26.85 x 16.75 x 2- EB1/EB1
• FOX98502134, 2019-2024 GM 1500 Front Coilover, PS, 2.0, Internal Floating Piston, NON-TB/NOT-AT4 0-2 inch Lift, TB/AT4 NO inch Lift (UPC 658848620593)
