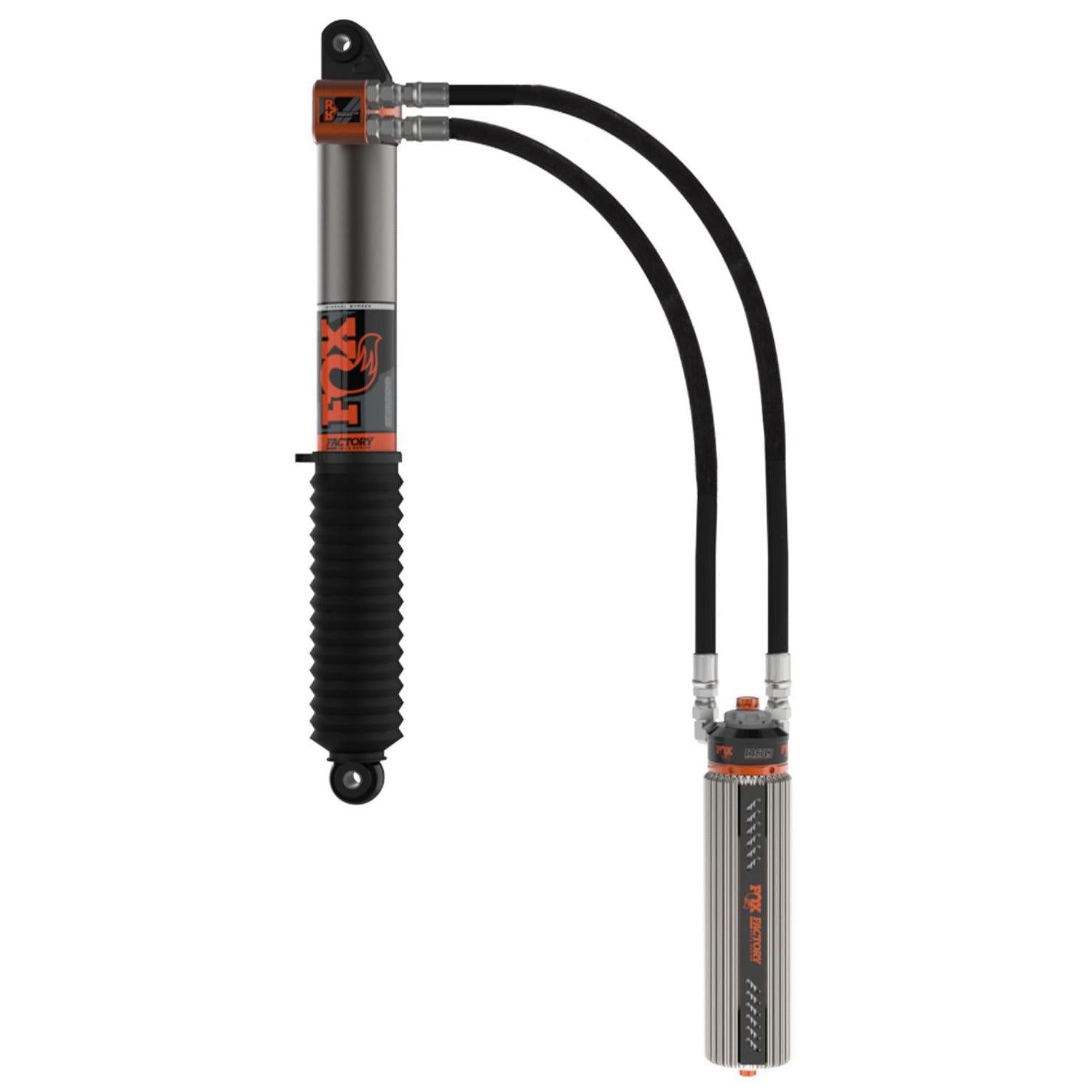

2019-2025 1500 3.0 Race Series 0-1" Lift Internal Bypass Rear RR Shock (883-26-105)

Description

FOX Factory Race Series 3.0 Internal Bypass shocks for the GMC pickups deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping capacity through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing.

Part Number: 883-26-105

Features

• 3" impact-extruded and CNC machined 6061-T6 Type III anodized aluminum Body
• Patented, internal bypass design
• Application-specific springs
• 7/8" hard chrome-plated steel Shafts
• Vehicle-specific tuning maximizes performance
• Redundant sealing pack system: main seal, wiper seal, scraper seal

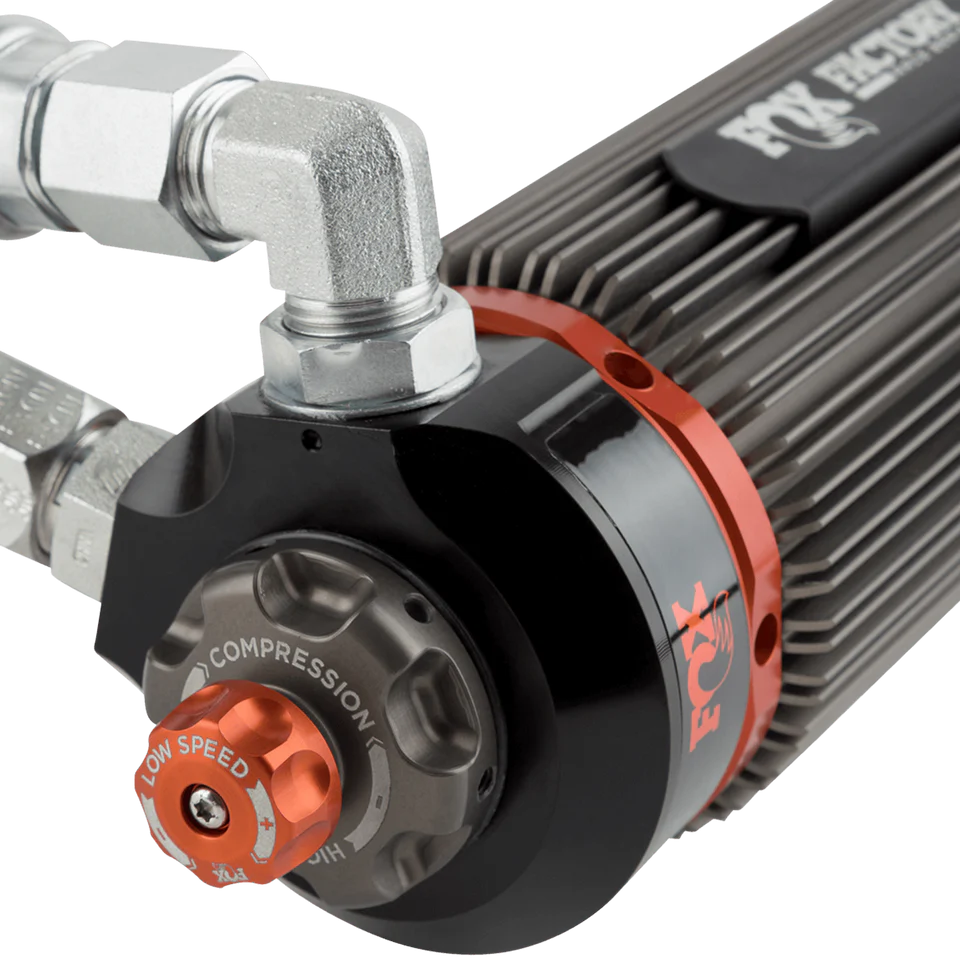

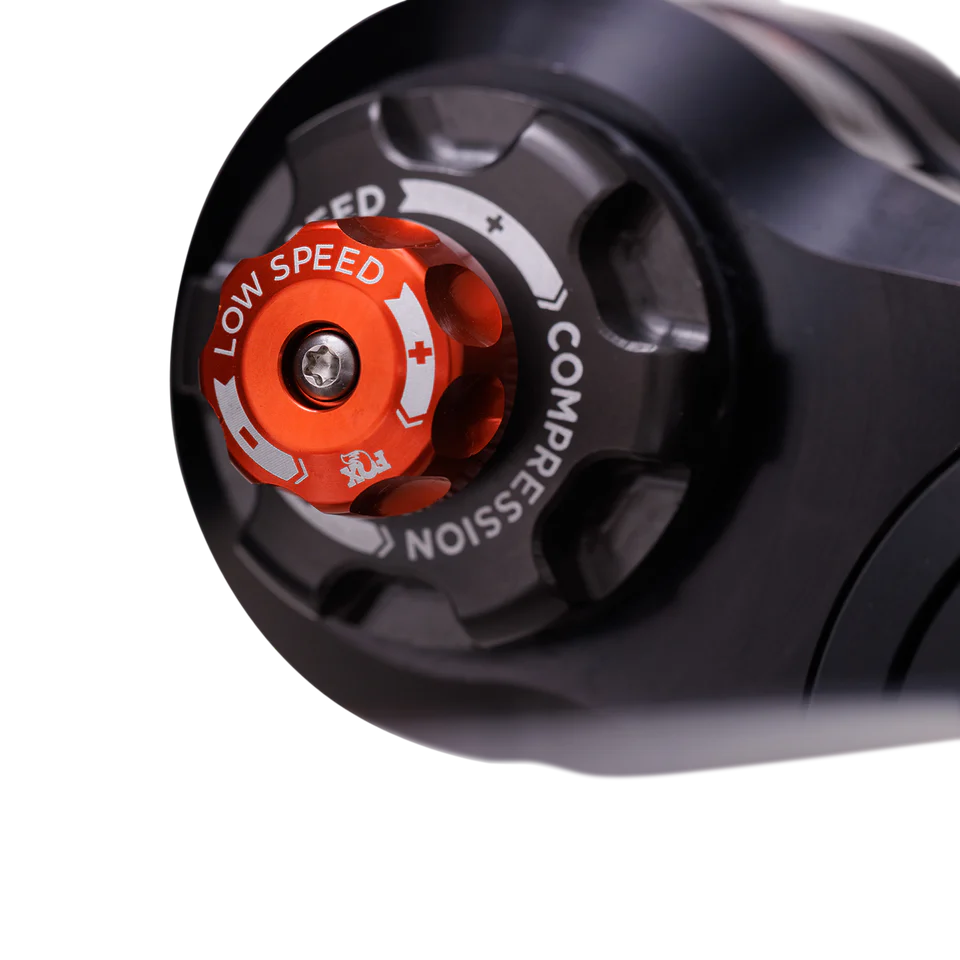

• Finned Reservoir, with DSC adjuster

Specs:

• Travel 10.32
• Extended Length 27.73
• Compressed Length 17.16
• Top Mount Eyelet
• Bottom Mount Eyelet

Notes

• Trail Boss Models Fit 0-1" Lift Only
• Non-TB requires a minimum of 2" bump stop spacer and a 1" lift block
