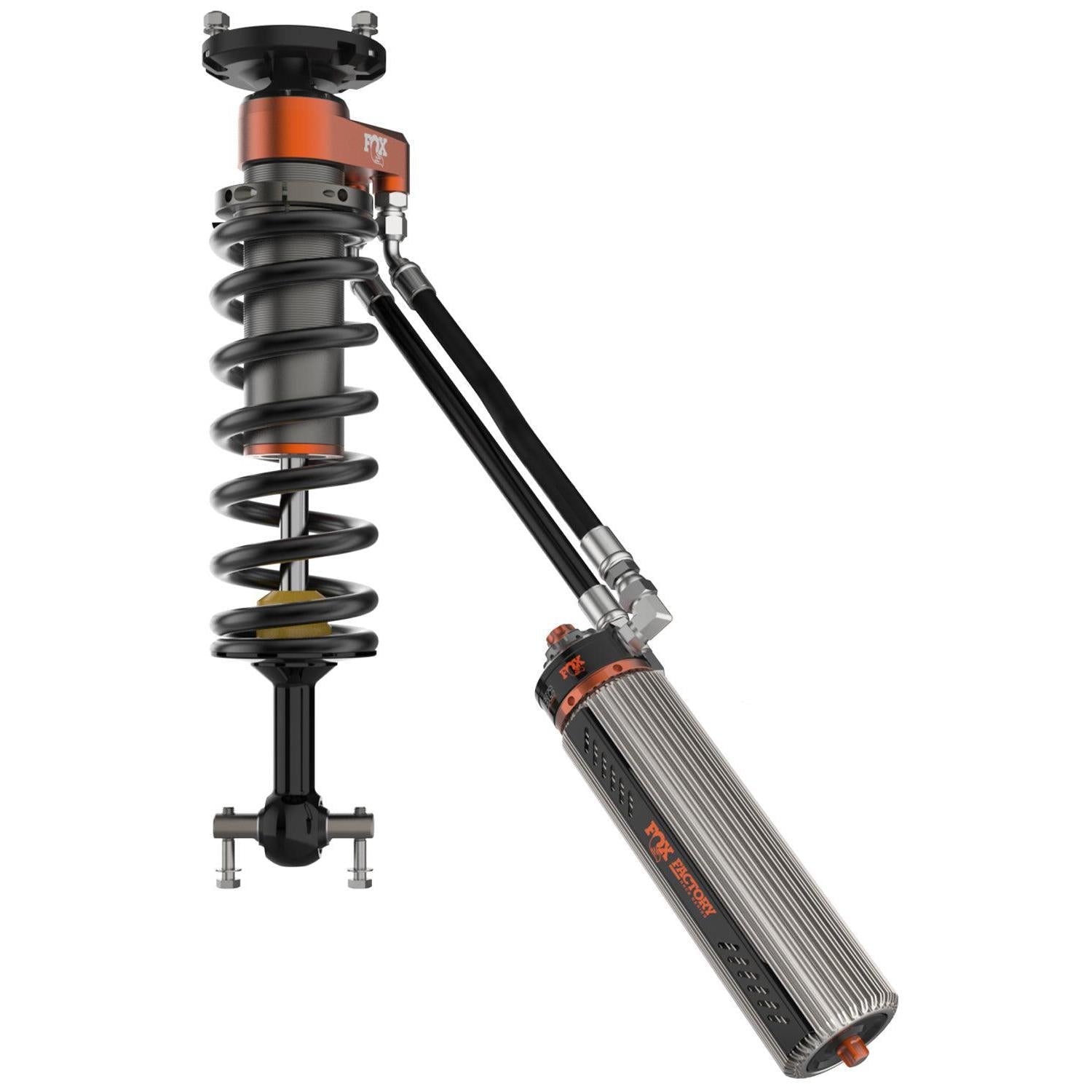

2019-2025 1500 3.0 Series 3" Lift Front Factory Race Coilovers w/ DSC (883-06-175)

Description

FOX Factory Race Series 3.0 Internal Bypass shocks for the Chevrolet 1500 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment, and high-speed ready performance in a bolt-on kit.

Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs, and provide an initial catch for landing.

Part Number: 883-06-175

Features

• Includes Reservoir Bracket
• Finned External Reservoir System Dissipates Heat Fast
• DSC adjuster allows you to dial in your 1500 for load, environment, and driving style
• Quick Switch Compression And Rebound Adjusters
• 3" impact-extruded and CNC machined 6061-T6 hard-anodized aluminum body resists corrosion and weighs less than steel
• Body Plating Hard-anodized for a durable finish
• Aluminum finned remote Reservoir with Recirculating Reservoir Bridge dissipates heat fast

• 7/8" hard chrome plated heat-treated alloy steel
• Race-developed high-flow Piston design
• Patented internal bypass design, and application-specific Valving to maximize performance
• Redundant sealing pack system main seal, wiper seal, and scraper seal resist leaks in harsh conditions
• Bearings PTFE-lined, heat-treated, alloy steel spherical keep the shock movement quiet and smooth

Specs:

• Extended Length: 22.74"
• Compressed Length: 17.15"
• Top Mount: OEM
• Travel: 5.34"
• Front Lift Height: 3"
• Bottom Mount: Bar Pin

Notes

• Requires Upper Control Arm
• Trail Boss Models Fit 1" Lift Only
