2019-2025 GM 1500 3" Standard Leveling Lift Kit (110-90797)

Description

Level up your GM 1500 with this all-inclusive 3" Standard Leveling Lift Kit!

The Standard Upper Control Arms provide style, function and performance. Built with a modified ball joint angle to eliminate travel limitations of the ball joint in lifted applications. This design also eliminates the need to cut the service perch off of the truck if they are used as part of the Cognito package or as a stock replacement.

The 1.5" Strut Spacers are crafted out of heavy-duty steel and are finished with a durable semi-gloss black powder coating. The .5" Steel Preload Spacers are finished with a silver zinc plated finish.

The 1.5" Block and U Bolt kit includes 1.5" tall powder-coated semi-gloss black cast steel blocks and heavy-duty zinc-plated U-Bolts. Standard White Body extended length rear shocks are also included in the kit.

Part Number: 110-90797

Features

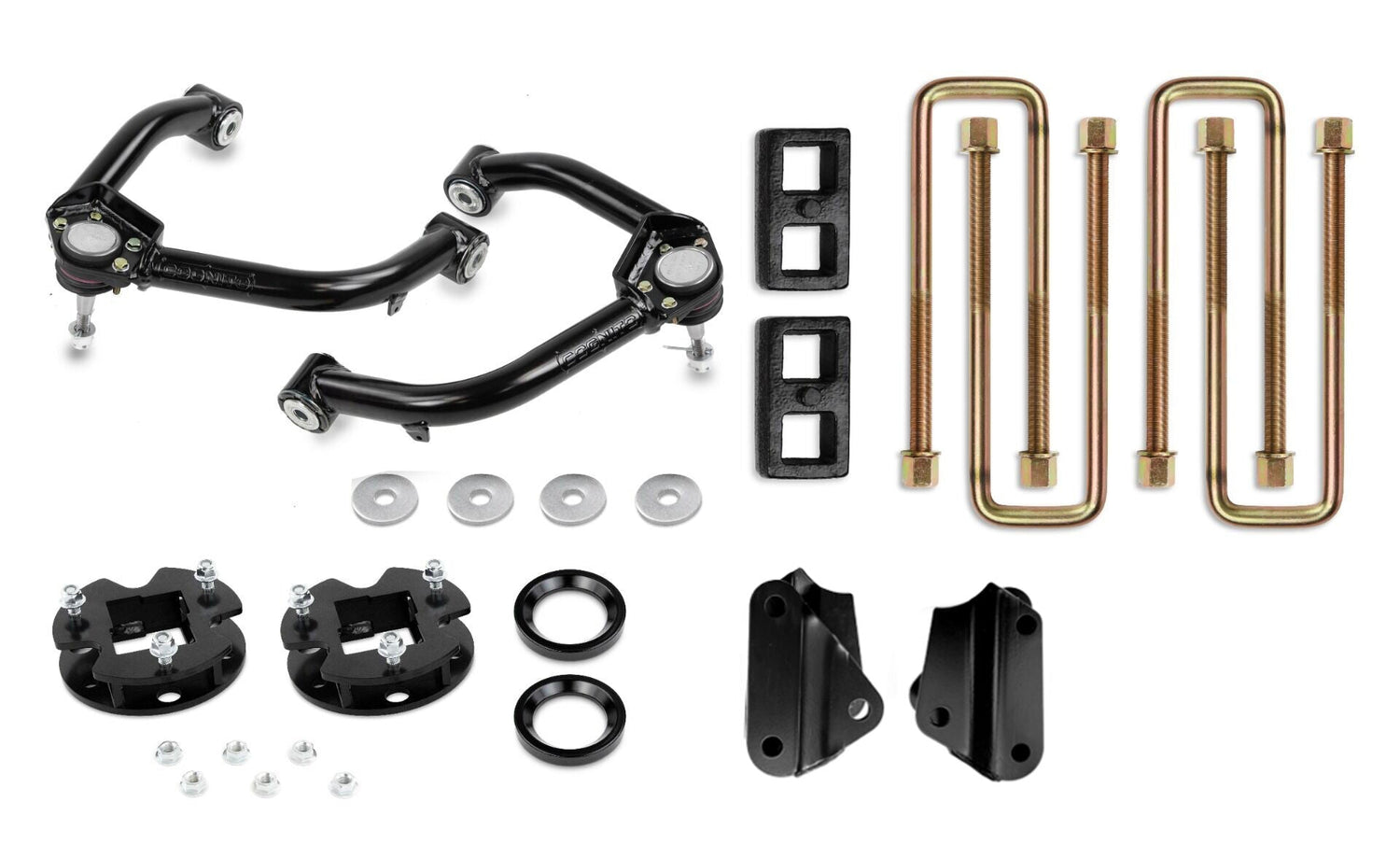

• Yields 3" of front lift & 1.5" of rear lift
• Standard Upper Control Arm Kit
• 1.5" Strut Spacer Kit
• .5" Preload Spacer Kit
• 1.5" Block & U Bolt Kit
• Standard White Body Rear Shocks
• Improved ball joint angle
• Enhances the trucks appearance and reduces the factory nose down rake
• Maintains Adequate Droop Travel for Superior Ride Quality

• Made in the USA

Installation

• 4-hour DIY install time
• Click Here 7236
• Click Here 7238

Notes

• NOT compatible with trucks equipped with composite mono-leaf rear spring.
• This product is compatible with vehicles equipped with ARC Adaptive Ride Control (includes all 1500 Denali models).
• 2025 Models add the Leaf Spring Top Plate Conversion

Tire Fitment

• Fits up to 34 x 12" tire and 9" wide wheel with 5.75" back space

Additional Fitment

Warranty

Parts Only

• Limited Lifetime Warranty - Cognito Branded Products
