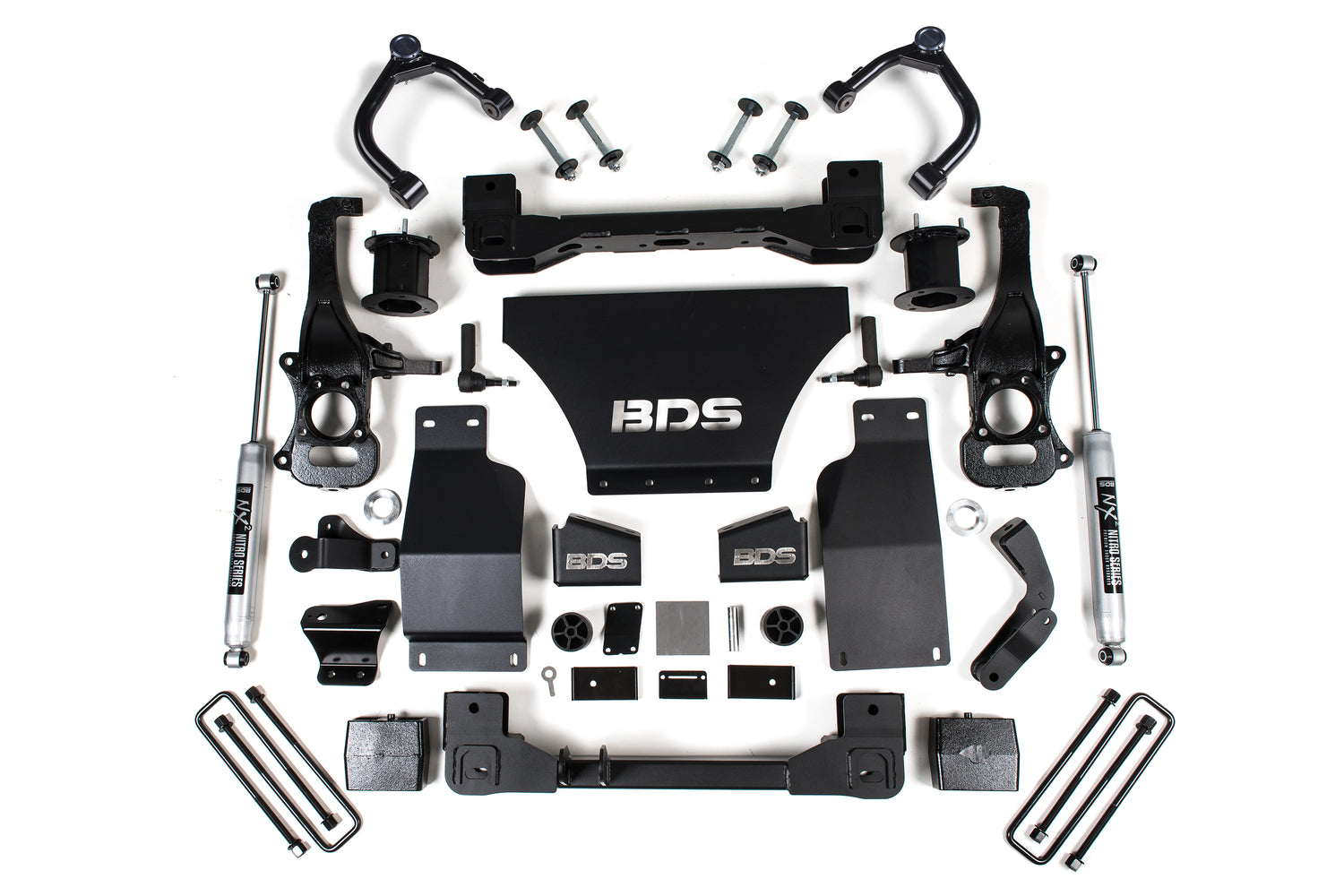

2019-2025 GM 1500 4" Lift Kit with NX2 Nitro Shocks (BDS1805H)

Take your Chevy Trail Boss and GMC AT4 1500 truck to the next level with this BDS 4" suspension lift that clears up to 35" tires. Up front it runs top-mounted strut spacers, tubular upper control arms, high-arched 1/4" steel crossmembers, multi-piece differential relocation brackets, and heavy-duty skid plates, with CNC-machined ductile iron steering knuckles and replacement tie rod ends to correct steering geometry and keep ESC compatibility. The rear uses a heavy-duty lift block, new u-bolts, brake line brackets, and precision-tuned NX2 Nitro or FOX 2.0 performance shocks.

The upper control arms use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup for additional down travel and camber adjustment, durometer-specific frame bushings, greaseable ball joints, and a black powder coat finish.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• Tubular upper control arms with indexed ball joint cup for added down travel and camber adjustment
• Greaseable ball joints and durometer-specific frame bushings; black powder coat finish
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• NX2 shocks: nitrogen-charged, twin-tube design with 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston
• Self-lubricating seals, silver powder coat finish

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 4 inch

Recommended Tire & Wheel Fitment

• Tire Size: 34x12.5, 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 4.5/6.25

Notes

• Requires frame bracket modification.
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference; stock 20" wheels can be reinstalled.
• 17" wheels with 4.5" backspacing should be test fit before mounting tires to ensure clearance to the steering knuckle / tie rod.
• All aftermarket wheels should be test fit before mounting tires to ensure clearance to the brake caliper. Some wheel profiles will not clear the caliper; test fit in stock condition before lifting.
• 2.7L Turbo models use the Diesel kit for proper skid plate fitment. If equipped with a mono-leaf rear spring, use part #UBT4064.

Includes

• BDS011518, 2019-2024 Chevy/GMC 1500 5 inch Rear Box Kit (UPC 658848611935)
• BDS021405, 2019-2024 Chevy/GMC 4 inch Strut Spacer Box (UPC 658848614639)
• BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible) (UPC 658848615056)
• BDS021665, 2019-2024 Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4 inch and 6 inch Compatible (UPC 658848615063)
• BDS021682, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 1of2 (UPC 658848615131)
• BDS021683, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 2of2 (UPC 658848615148)
• BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 (UPC 711745609686)
