2014-2024 GM 1500 4" Lift Kit with FOX 2.0 Performance Shocks (BDS1802FSR)

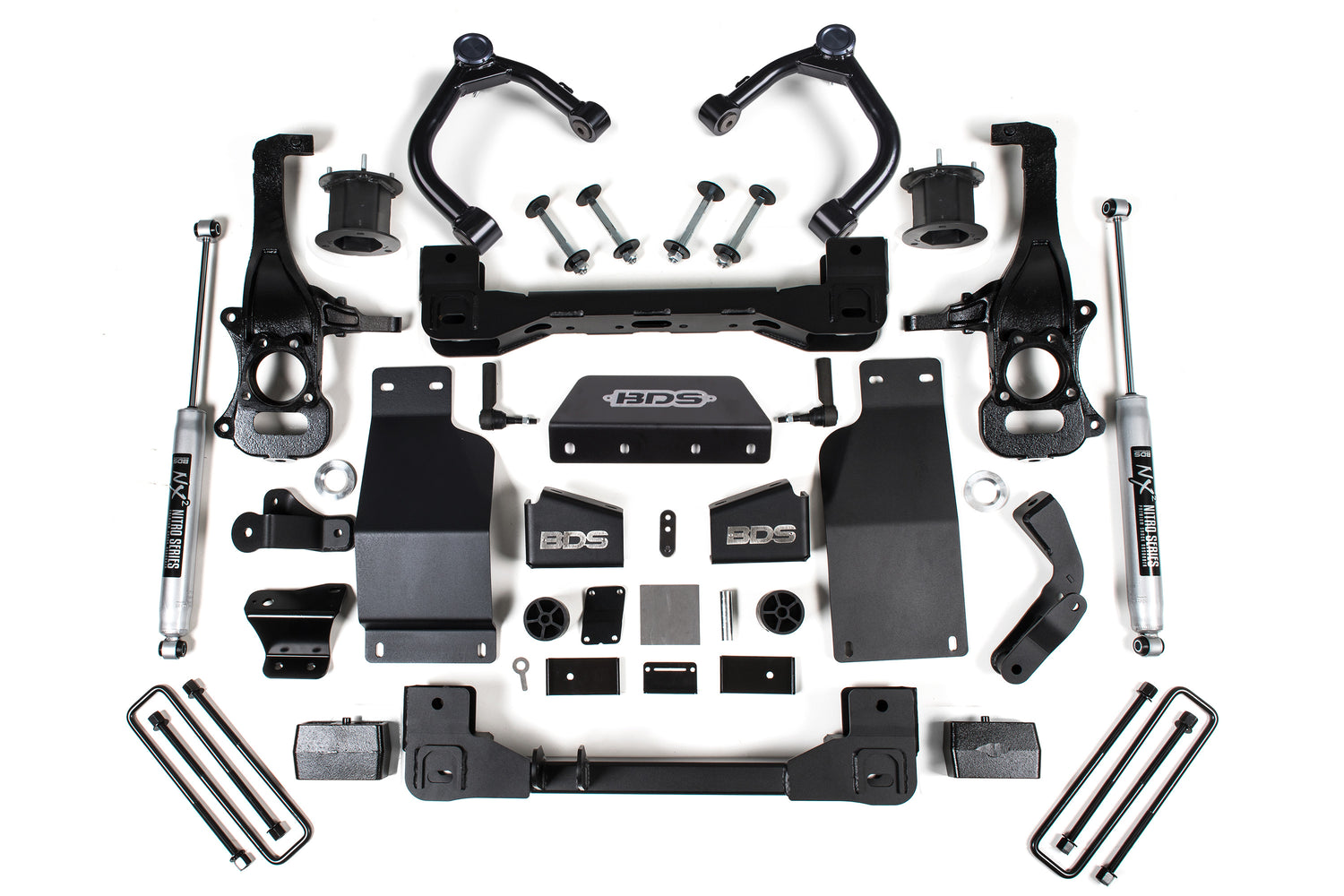

BDS steps up the Chevy Silverado and GMC Sierra 1500 with this 4" suspension lift that clears up to 33" tires. Up front it runs top-mounted strut spacers, high-arched 1/4" steel crossmembers, multi-piece differential relocation brackets, and heavy-duty skid plates, with CNC-machined ductile iron steering knuckles and replacement tie rod ends to correct steering geometry and keep ESC compatibility. The rear uses a heavy-duty lift block, new u-bolts, brake line brackets, and precision-tuned NX2 Nitro or FOX 2.0 reservoir performance shocks.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included
• Custom-molded spring seat lets you reuse the stock spring and mounting hardware
• FOX 2.0: 2" Impact extruded and CNC-machined 6061-T6 clear anodized aluminum one-piece body resists rust
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston, application-specific valving
• Internal IFP mono-tube reservoir design

Specs

• Front Lift Method: Cross-Member
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 33x12.5, 35x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5/6.25

Notes

• Requires frame bracket modification.
• Factory 17" and 18" wheels cannot be reinstalled due to tie rod end interference; stock 20" wheels can be reinstalled.
• 17" wheels with 4.5" backspacing should be test fit before mounting tires to ensure clearance to the steering knuckle / tie rod.
• All aftermarket wheels should be test fit before mounting tires to ensure clearance to the brake caliper. Some wheel profiles will not clear the caliper; test fit in stock condition before lifting.
• 2.7L models use the Diesel kit for proper skid plate fitment. If equipped with a mono-leaf rear spring, use part UBT4064.

Includes

• BDS011316, 2019-2024 Chevy/GMC 1500 4 inch Rear Box Kit (UPC 658848611737)
• BDS021664, 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible) (UPC 658848615056)
• BDS021665, 2019-2024 Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4 inch and 6 inch Compatible (UPC 658848615063)
• BDS021682, 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 1of2 (UPC 658848615131)
• BDS021685, 2019-2024 Chevy/GMC 1500 6 inch Diesel Front Box Kit 2 of 2 (UPC 658848615162)
• FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 (UPC 692878899062)
• FOX98662000, Kit: BDS, 2019-2024 Chevy 1500, Front C/O, Snap Ring, PS, 2.0, Internal Floating Piston, 5.8 inch, 4.5 & 6.5 inch Lift (UPC 814897013483)
