2019-2025 GM 1500 6" Elite Lift Kit W/ Fox 2.5 Elite Performance Series Shocks (210-P1224)

Description

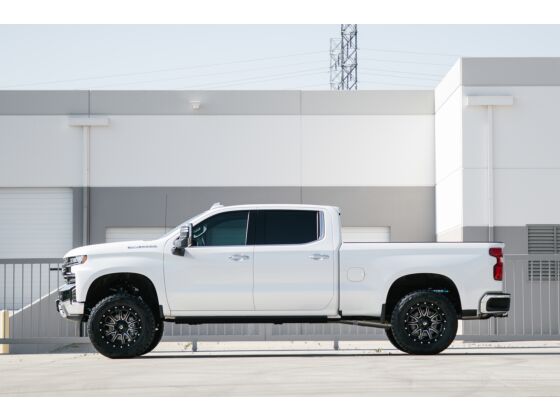

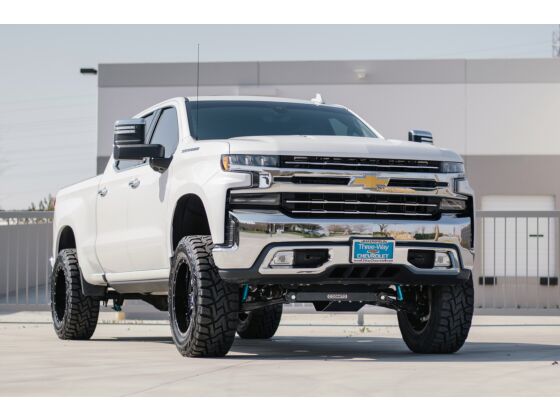

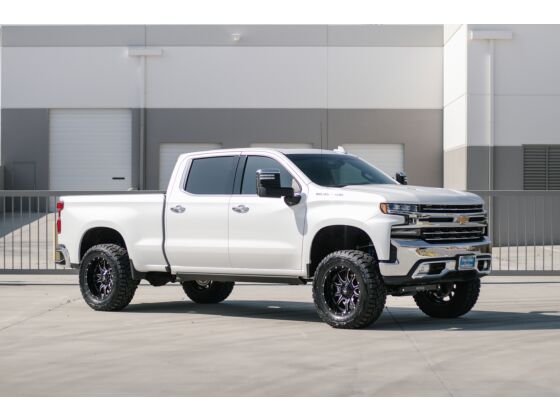

Elevate your 2019-2025 GM 1500 with this all-inclusive 6" Elite Lift Kit W/ Fox 2.5 Elite Performance Series Shocks!

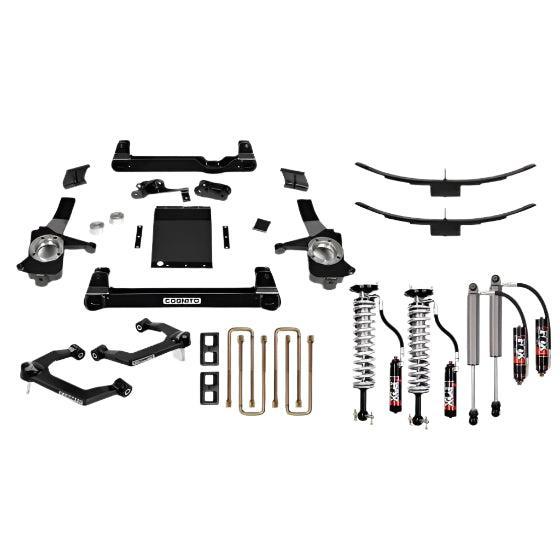

The 6" Elite lift kit comes complete with everything required to have you clearing 35s on a 10" wide wheel. This kit offers superior ride quality and corrected CV joint angles.

Fox 2.5" Performance Elite shocks deliver jaw-dropping ride quality while giving your truck that head-turning stance everyone wants. Unlike the competition, Cognito has thrown in a stiffer sway bar to handle that new height.

The Ball Joint SM Series Upper Control Arms are made from boxed sheet metal, CNC robot-welded, and powder-coated semi-gloss black. They add style, function and performance to your ride by correcting the Ball Joint Angle in lifted and leveled applications. Ball joints are included as well as new crush sleeves and polyurethane bushings.

Part Number: 210-P1224

Features

• Yields 6" of front lift and 4 inches of rear lift
• 6" Front Lift Components
• SM Series Ball Joint Upper Control Arms
• Fox 2.5" Elite Performance Series Shocks
• 2" lift Deaver mini pack
• 2" block and U-bolt kit
• Improved ball joint angle
• Maintains Adequate Droop Travel for Superior Ride Quality
• Levels vehicle front to rear
• Made in the USA

Notes

• CV Front Driveline is required on 4WD models if operating in 4WD above 20mph
• This product requires bypassing ARC Adaptive Ride Control system (1500 Denali models).
• NOT compatible with trucks equipped with composite mono-leaf rear spring.
• Required for 2025 models - 210-P1224 Leaf Spring Top Plate Conversion.

Tire Fitment

• Allows for up to a 35 x 12.5" Tire on a 10" Wide Wheel with 4.5" Backspacing
