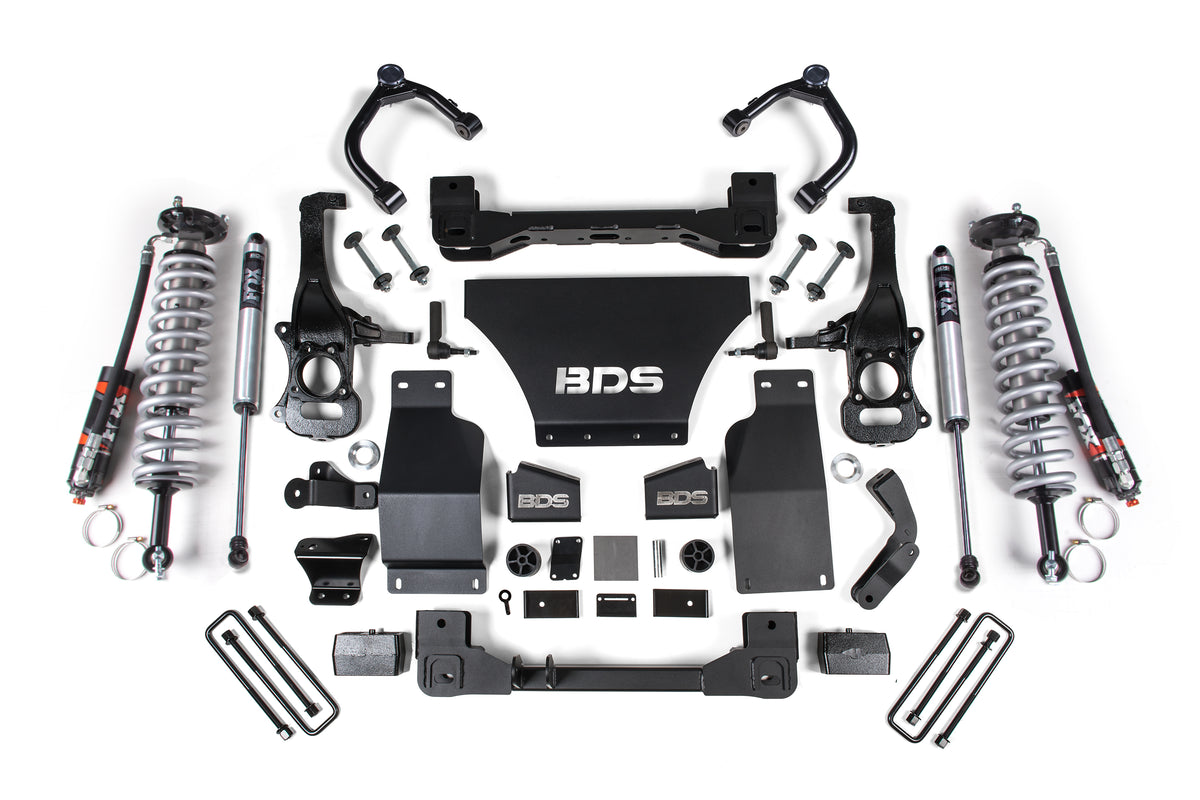

2014-2025 GM 1500 6" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1801FPE)

BDS steps up the performance and capability of the Chevy Silverado and GMC Sierra 1500 trucks with a 6-inch suspension lift kit. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Features

• High clearance crossmember design maximizes ground clearance
• Robust steering knuckles maintain ESC system compliance
• High-strength replacement upper control arms provide durability and serviceability
• HD skid plate system for improved offroad protection
• Multipoint differential relocation brackets to secure the front axle and improve CV angles
• Factory Protection Plus drivetrain warranty included

Leaf Spring Features

• Made from heavy-duty steel that guarantees its durability
• Maintains factory like ride quality
• Fast and easy to install

Shock Features

• 2-inch Impact extruded aluminum body
• Internal floating piston (IFP) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Height: 6 inch

Notes

• Trimming may be required.

Includes

• BDS011518 - 2019-2024 Chevy/GMC 1500 5 inch Rear Box Kit (UPC 658848611935)
• BDS021664 - 2019-2024 Chevy/GMC 1500 Knuckle Box 1of2 w/UCA (4 inch and 6 inch Compatible) (UPC 658848615056)
• BDS021665 - 2019-2024 Chevy/GMC 1500 Knuckle Box 2of2 w/UCA (4 inch and 6 inch Compatible) (UPC 658848615063)
• BDS021682 - 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 1of2 (UPC 658848615131)
• BDS021683 - 2019-2024 Chevy/GMC 1500 6 inch Front Box Kit 2of2 (UPC 658848615148)
• BDS121633 - 2019-2024 Chevy/GMC 1500 Coilover Reservoir Mounting Bracket Kit (UPC 658848619184)
• FOX88406323 - Kit: BDS 2019-2024 GM 1500, 2.5 Fox Performance Elite Series, R/R, Front, C/O, 6 inch Lift, Dual Speed Compression Adjust
• FOX98224759 - Fox 2.0 Shock 30.05 x 18.45 x 2, EB1/EB1, Qty 2

Tire Specs

35 x 12.5 with 17 x 9 and 4.5 in. Back Spacing | 35 x 12.5 with 20 x 9 and 6.25 in. Back Spacing | 37 x 12.5 with 20 x 9 and 6.25 in. Back Spacing

Manufacturer Description

This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics.

Up front, the kit utilizes top mounted strut spacers, high-arched 1/4-inch thick steel crossmembers along with multipiece differential relocation brackets and heavy duty skid plates built for offroad protection. Steering geometry is corrected at the new taller ride height with CNC-machined ductile iron steering knuckles and replacement tie rod ends allowing for ESC system compatibility. These combined with the provided sway bar drops, bump stop extensions, brake line brackets, CV spacers, supplied hardware and more provide a comprehensive front suspension lift ready for whatever you throw at it.

In the rear BDS offers a heavy duty lift block. The lift block installs in place of the stock block and retains ride quality and load capacity. Also for the rear are new u-bolts, brake line brackets and precision tuned NX2 Nitro or premium FOX 2.0 Performance Series shocks.

BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers, paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection. Steering geometry is corrected at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckles designed to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
