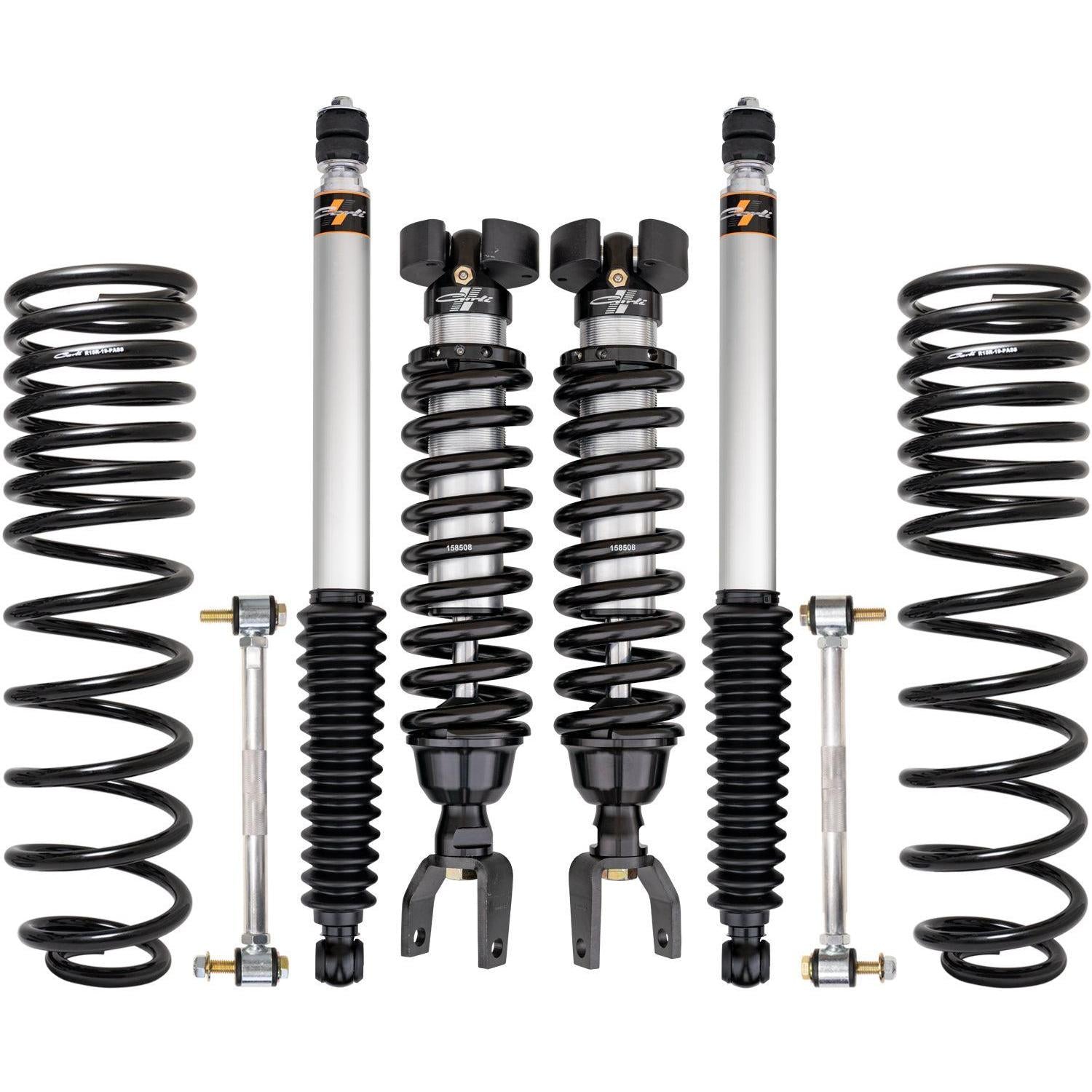

2019-2023 Ram 1500 Rebel Carli-Spec 1.5" Lift Commuter System (CS-RAM15COM-CS-RBL-19)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$3,710.88 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

Upper Control Arm

Optional

With the Commuter system, it’s not necessary to purchase the Carli Upper Control Arm. The factory arm DOES limit the travel of the Commuter kit. The Commuter kit is actually capable of about 1" more travel than it's spec'd with BUT, we had to install a short internal spacer in the coilover to limit the travel of the shock and ensure customers were not topping out on the factory ball joint in the upper control arm. The King Shocks we offer include our control arms and achieve this extra 1" down travel. Being more budget and on-road focused, we limited the travel of the Commuters for safe operation with the factory control arm. If a customer decided to purchase the Commuter for it's on-road prowess and elects to purchase the Carli Control Arms, the internal spacer could be removed by the user (or user's selected shock service facility) to achieve the same suspension travel as the Performance Kits.

Extended Brake Line Kit

Optional

If one were to purchase the Commuter System and the Carli Upper Control Arm, then removed the internal shock spacer to achieve the full down-travel of which these shocks are capable, this brake line kit would be required as the factory lines will not be sufficient length. These are NOT required for the standard Commuter System.

Subtotal

Part Specs
Warranty
Description

The perfect comprehensive suspension setup for your 1500, with front Carli-tuned coilovers that provide smooth highway driving and a stiffer, more controlled ride on rough terrain or hauling heavy loads. Paired with Carli's 2.0 6063 Aluminum shocks with 6061 Billet rod ends to further maintain stability, control, and provide superior bottom-out protection. Perfect for the daily driver that's sticking to city streets and highways with the occasional off-road adventure.

Part Number: CS-RAM15COM-CS-RBL-19

Features
  • Carli Spec 2.5" internal reservoir coilovers and rear 2.0 IFP shocks provide great on-road ride quality and improved handling, and are ready for some light off-roading
  • Specifically developed for Ram 1500 Rebel Models
  • Multi-rate rear coil springs provide 1" of rear lift with a lighter rate for optimal ride quality
  • Provides 8" of travel in front and 12" in the rear
  • Includes machined aluminum rear sway bar links and braided steel front brake line kit
Notes
  • Lift height will vary if you have a Multi-Function Tailgate or Ram Box options
  • EcoDiesels can expect 1/2" LESS of front lift than stated above
  • Carli offers three springs for the 2019+ Ram 1500 Platform. The 1500 1/2" Rear Spring included with the 1500 system is ONLY applicable for non-Rebel/Off Road Package trucks without the Ram Box of Multi-Function Tailgate
  • The Rebel 1/2" Rear Spring is included with the Rebel system. These will work for standard 1500s with Ramboxes/MFT OR small constant loads
  • Lastly, a 1/2" Rebel HD (500lb Constant Load) that will work for Standard 1500s with Ram Box/MFT or around 700lb constant loads or Rebels with Rambox/MFT or 500lb bed-loads

Warranty
Limited 1 (One) Year Warranty

Vehicle Fitment

Part Specifications

  • Part No.
    CS-RAM15COM-CS-RBL-19
  • Vendor
    Carli Suspension
  • Shipping Weight
    108.0 lb
  • Prop 65
    ⚠️ Warning: Cancer & Reproductive Harm
