2019-2024 Ram HD 3" Lift Kit with FOX 2.0 Performance Shocks (BDS1713FS)

BDS 3" radius arm lift kit for the 2019-2024 Ram 2500 diesel with factory rear air ride, clearing up to 35" tires. The front uses diesel-specific progressive-rate Pro-Ride coil springs, high-strength tubular replacement radius arms, a 1-3/8" solid steel adjustable track bar that recenters the front axle and bolts to the factory mounts, sway bar links, and brake line brackets. The rear runs a high-strength fabricated coil spacer, a track bar relocation bracket, bump stop extensions, and sway bar links.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs
• Front adjustable 1-3/8" solid steel track bar re-centers the axle
• Front sway bar correction maintains handling performance
• FOX 2.0 Performance Series IFP monotube shocks
• 2" Impact extruded aluminum body with CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design with application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Spacer
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 2 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• When installing this rear air ride system with a 4-Link or radius arm drop bracket system, use the provided air tank spacers in this box kit to clear the brackets.

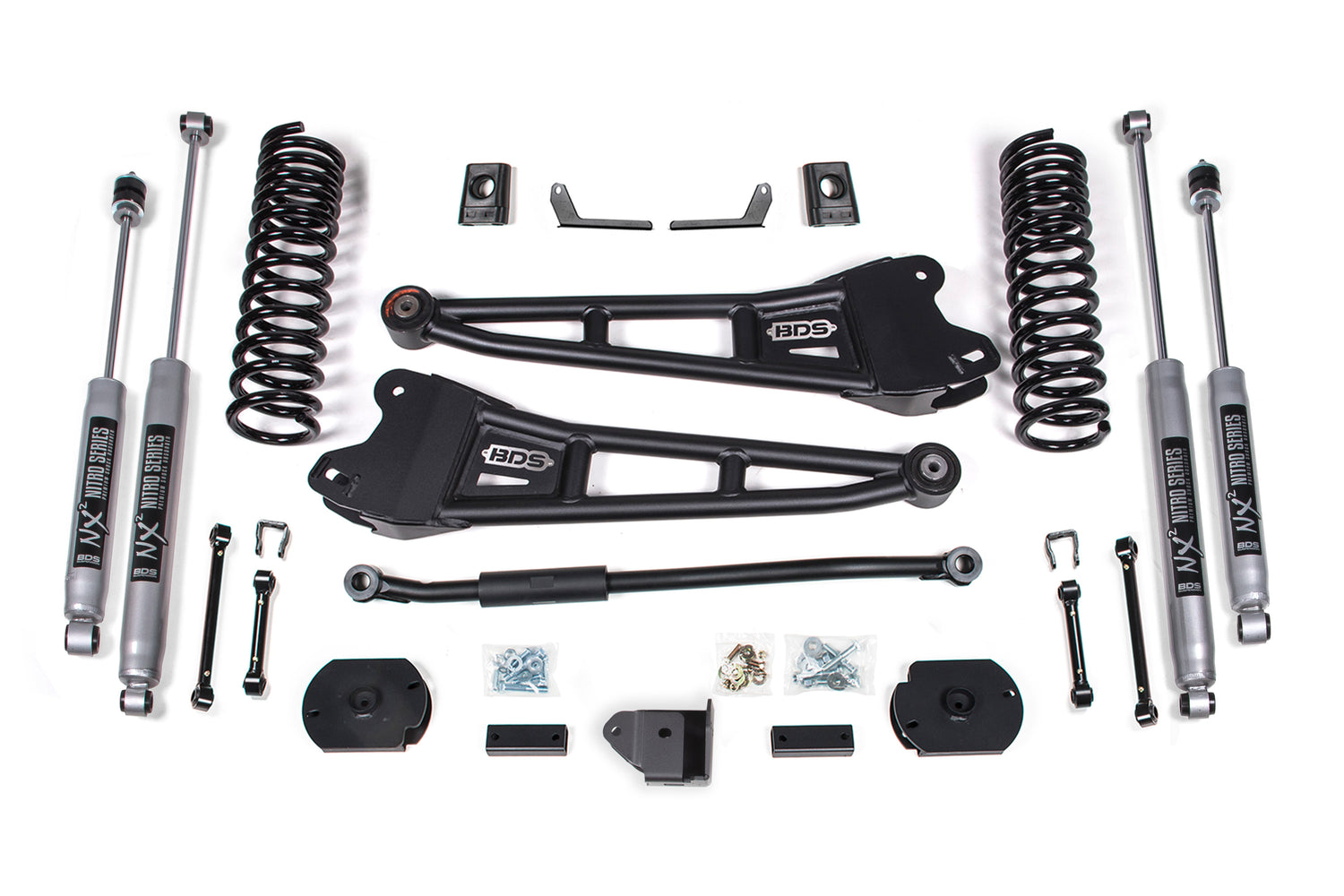

Includes

• BDS012257, 2014-2024 Dodge Ram 2500 2.5 inch Rear Air Ride Box Kit (UPC 658848612154)
• BDS012312, 2014-2024 Ram 2500 / 2013-2024 Ram 3500 3 inch Front Box Kit (UPC 711745611436)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• FOX98224706, Fox 2.0 Shock - 23.65 x 15.05 x 2- Special/EB1
• FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
