2019-2024 Ram HD 3" Lift Kit with FOX 2.0 Performance Shocks (BDS1653FS)

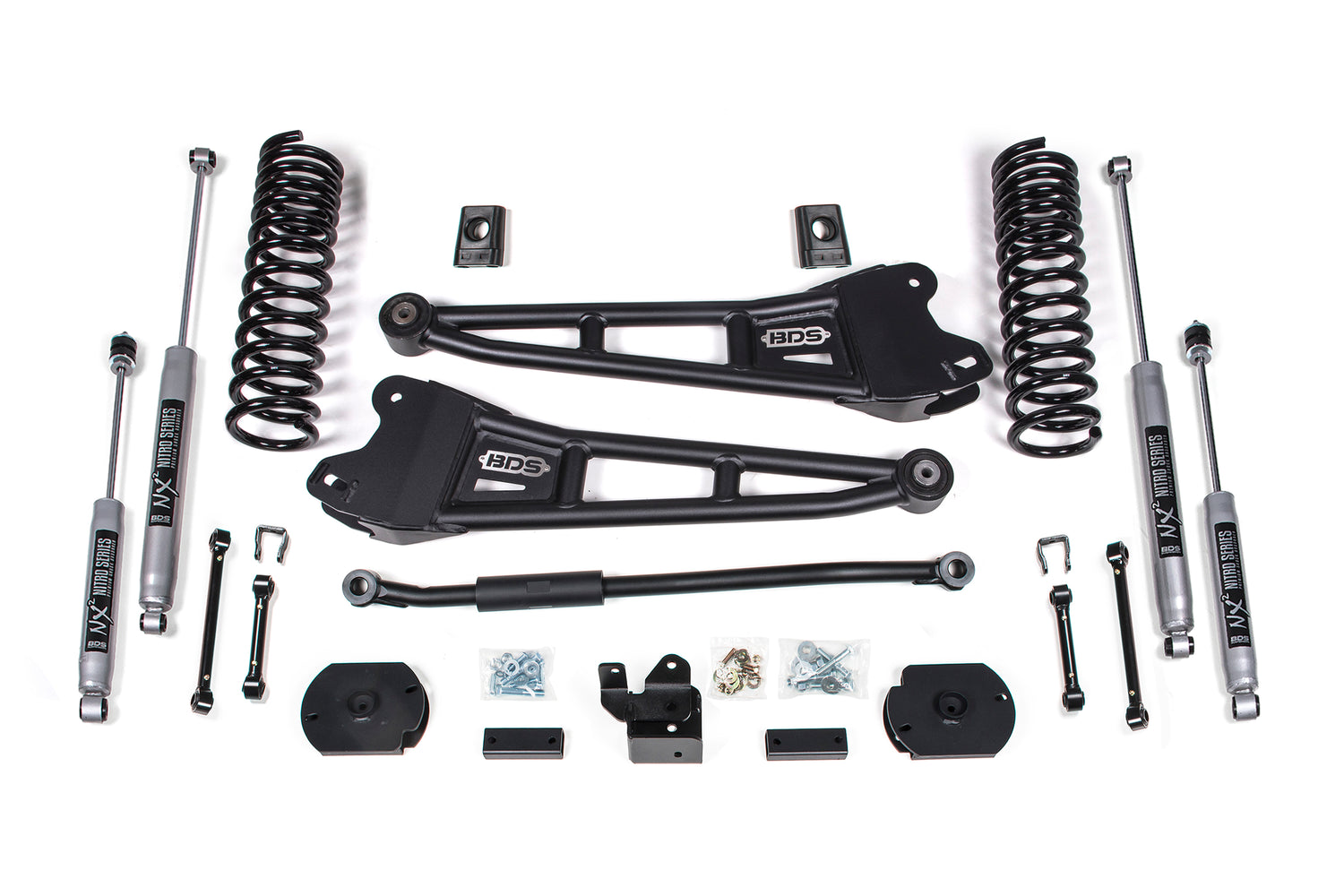

Level out your 2019-2024 RAM 2500 diesel with this BDS 3" radius arm lift kit, clearing up to 35" tires. Up front it includes diesel-specific progressive rate Pro-Ride coil springs, heavy-duty replacement tubular radius arms, a high strength 1-3/8" solid steel track bar for steering correction, sway bar links, brake line brackets and NX2 or FOX 2.0 shocks. The rear runs a high-strength fabricated coil spacer, a track bar relocation bracket, bump stops and matching NX2 Nitro or FOX 2.0 Performance shocks. The adjustable track bar lets you recenter the front axle across a range of lift heights and bolts to the factory mounting points.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate Pro-Ride coil springs for a great ride on any terrain
• Front adjustable 1-3/8" solid steel track bar to re-center the axle, pre-assembled with bushings
• Front sway bar correction to maintain handling
• NX2 gas or FOX Performance Series Internal Floating Piston shocks for improved ride and off-road performance
• FOX 2.0: 2" Impact extruded aluminum body, Internal Floating Piston monotube, CNC machined 6061-T6 aluminum ends, 5/8" hard chrome shaft, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Spacers
• Shocks Included: Yes
• Front Lift Height: 3 inch
• Rear Lift Height: 1.25 inch

Recommended Tire & Wheel Fitment

• Tire Size: 35x12.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5/5

Notes

• Designed for rear air-ride equipped models only.
• For use on diesel models only.
• Not for use on Power Wagon models.
• If you experience front driveline vibration, a t-case indexing ring is available for 6-bolt and 8-bolt equipped models. Select the correct one for your application.

Includes

• BDS012128, 2014-2024 Ram 2500 1.25 inch Rear Spacer Box Kit (UPC 658848612031)
• BDS012312, 2014-2024 Ram 2500 / 2013-2024 Ram 3500 3 inch Front Box Kit (UPC 711745611436)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• FOX98224706, Fox 2.0 Shock - 23.65 x 15.05 x 2- Special/EB1
• FOX98224710, Fox 2.0 Shock 23.27 x 14.65 x 2- S50/EB1
