2019-2024 Ram HD 4" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1715FS)

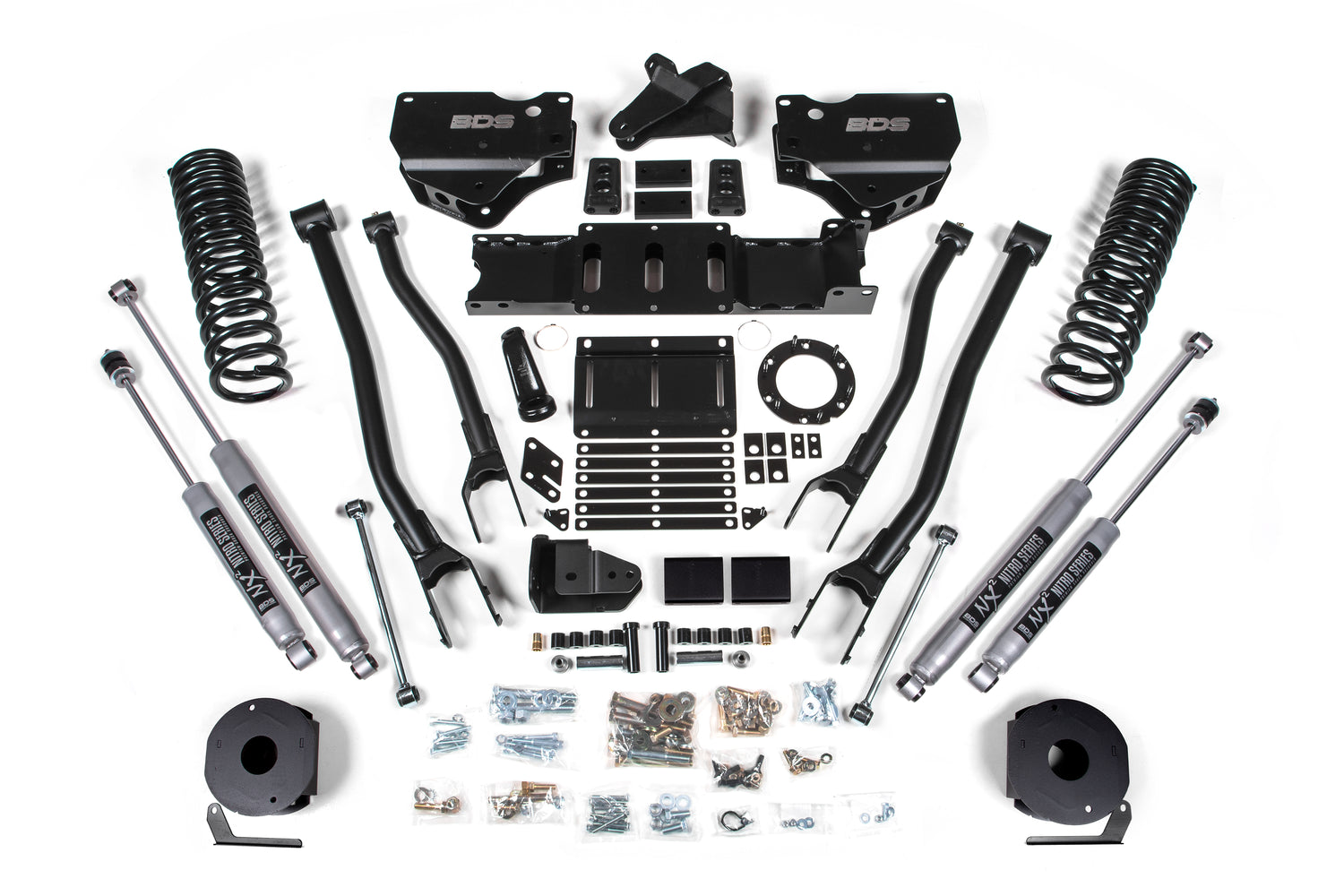

BDS Suspension engineered this 4" lift kit with 4-link conversion for your 2019-2024 Ram 2500 diesel, with clearance for up to 35" tires. Up front it runs diesel-specific progressive-rate Pro-Ride coil springs, 4-link control arms with conversion mounts, a forged drop pitman arm and track bar drop bracket for steering correction, bump stops, brake line brackets and tuned FOX 2.0 Performance shocks. A t-case indexing ring and new HD transmission crossmember keep the factory front driveshaft usable at this height. The rear uses heavy-duty air bag spacers, a track bar relocation bracket, bump stop extensions, sway bar links and matching FOX 2.0 shocks.

Features

• Heavy duty 4-link arms improve strength, handling and caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• 2-inch Impact extruded aluminum shock body
• Internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Spacer
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.625

Notes

• Not for use with factory rear coil spring suspensions.
• Will not fit Ram 2500 Power Wagon models.
• Models with a 2-piece rear driveshaft may require carrier bearing drop kit #122406.
• Will not fit Cab and Chassis models.

Includes

• BDS012358, 2019-2024 Ram 2500 3.5 inch Rear Air Ride Box Kit (UPC 658848612307)
• BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2 (UPC 658848612437)
• BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2 (UPC 658848612444)
• BDS032403, 2019-2024 Ram 2500/3500 Coil 4 inch Diesel - 5.5 inch Gas (UPC 711745612792)
• BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel (UPC 658848619764)
• FOX98224706, Fox 2.0 Shock - 23.65 x 15.05 x 2- Special/EB1
• FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
