2019-2024 Ram HD 4" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1717H)

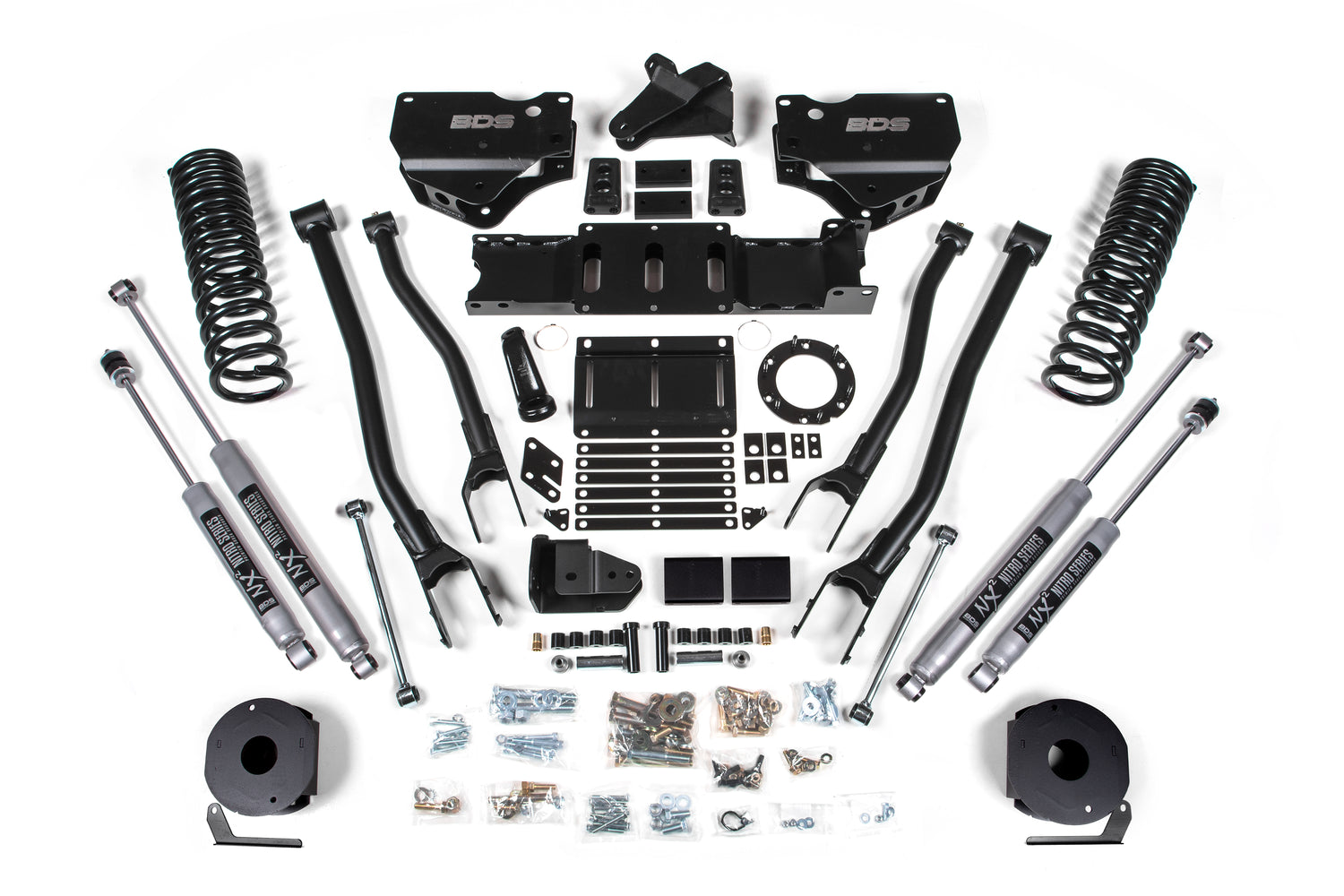

BDS engineered this 4" lift kit with 4-Link conversion for the 2019-2024 Ram 2500 gas truck, with everything needed to set it up right and clearance for up to 35" tires. Up front it includes gas-specific Pro-Ride progressive rate coil springs, 4-Link control arms with conversion mounts, a forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets, and precision tuned NX2 Nitro nitrogen-charged shocks. The transfer case is indexed with the supplied indexing ring and new transmission crossmember to keep the factory front driveshaft, while the rear uses heavy duty air bag spacers, a track bar relocation bracket, bump stop extensions, sway bar links, and a matching set of NX2 Nitro shocks.

Features

• Heavy duty 4-link arms improve strength, handling and caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas shocks to improve ride and offroad performance
• Nitrogen-charged twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Spacer
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.625

Notes

• Not for use with factory rear coil spring suspensions
• Will not fit Ram 2500 Power Wagon models
• Models equipped with a 2-piece rear driveshaft may require carrier bearing drop kit #122406
• Will not fit Cab and Chassis models

Includes

• BDS012358, 2019-2024 Ram 2500 3.5 inch Rear Air Ride Box Kit (UPC 658848612307)
• BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2 (UPC 658848612437)
• BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2 (UPC 658848612444)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas (UPC 658848619788)
• BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 (UPC 711745609495)
• BDS85764, Shock- 24.80 x 14.80 x 2 - Special/EB1 (UPC 711745609730)
