2019-2025 Ram HD 4" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1675FS)

BDS engineered this 4" lift kit with 4-link conversion for your 2019-2024 RAM 2500 gas truck, clearing up to 35" tires. Up front it includes gas-specific progressive rate Pro-Ride coil springs, 4-link control arms with conversion mounts, forged drop pitman arm and track bar bracket for steering correction, bump stops, brake line brackets and NX2 or FOX 2.0 shocks. At this height a transfer case indexing ring and new transmission crossmember are supplied. The rear runs progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links and matching NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Heavy duty 4-link arms improve strength, handling and caster control
• High strength progressive rate Pro-Ride coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position the axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling
• HD transmission crossmember and t-case indexing ring correct front driveline angles and allow use of factory driveshafts
• NX2 gas or FOX Performance Series Internal Floating Piston shocks for improved ride and off-road performance
• FOX 2.0: 2" Impact extruded aluminum body, Internal Floating Piston monotube, CNC machined 6061-T6 aluminum ends, 5/8" hard chrome shaft, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5, 37x13.5
• Wheel Diameter: 20x9
• Back Spacing: 5/5.625

Notes

• Will NOT fit air-ride equipped models.
• Gas models only.
• Will NOT fit Power Wagon models.
• Exhaust modification is required to clear the front driveshaft. Vehicle can be driven w/o the front driveshaft to an exhaust shop.

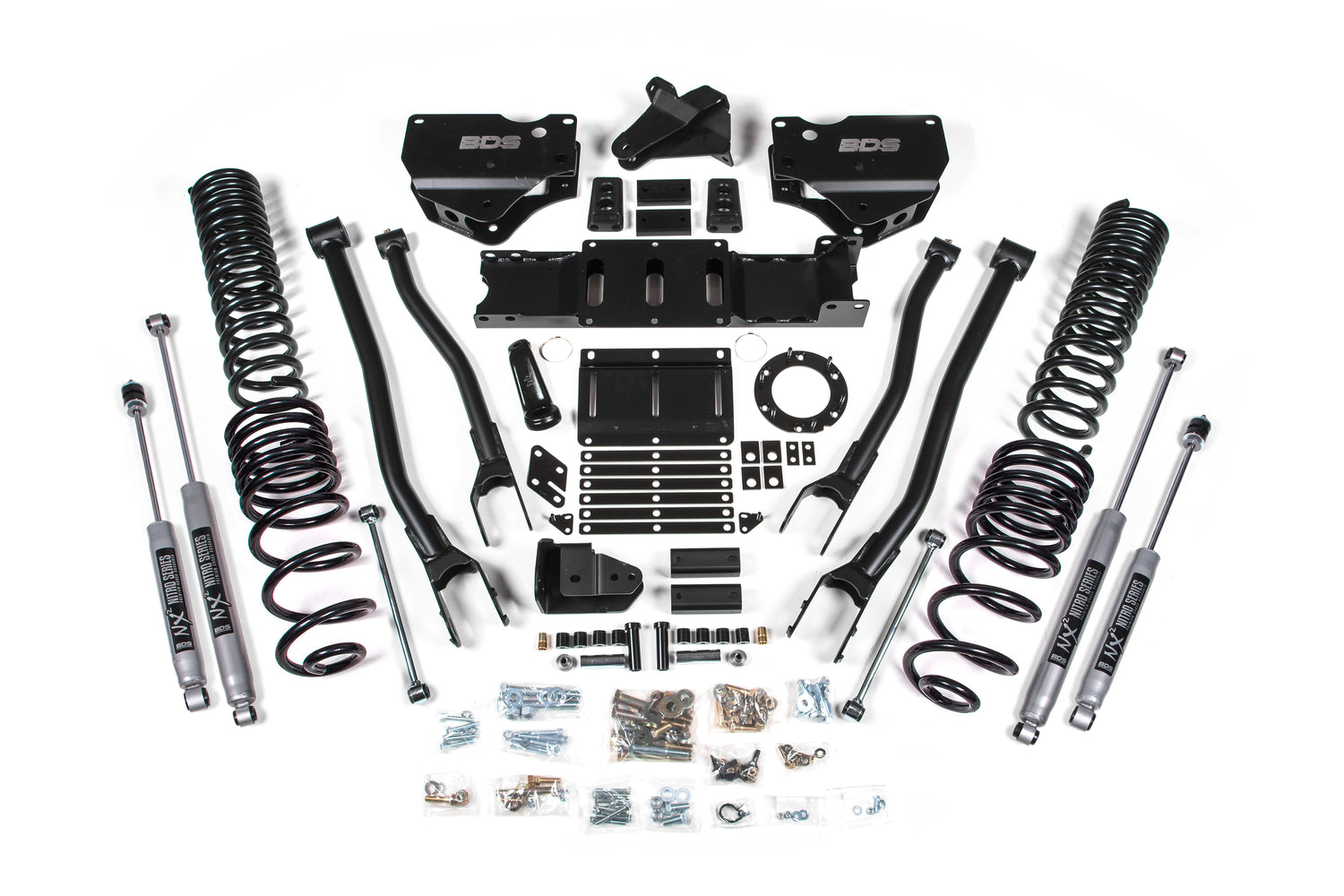

Includes

• BDS012269, 2019-2024 Ram 2500 2.5 inch Rear Coil Box Kit (UPC 658848612185)
• BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2 (UPC 658848612437)
• BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2 (UPC 658848612444)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas (UPC 658848619788)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224753, Fox 2.0 Shock - 26.85 x 16.75 x 2- Special/EB1
