2019-2025 Ram HD 5.5" 4-Link Conversion Kit with FOX 2.5 Performance Elite Shocks (BDS1689FPE)

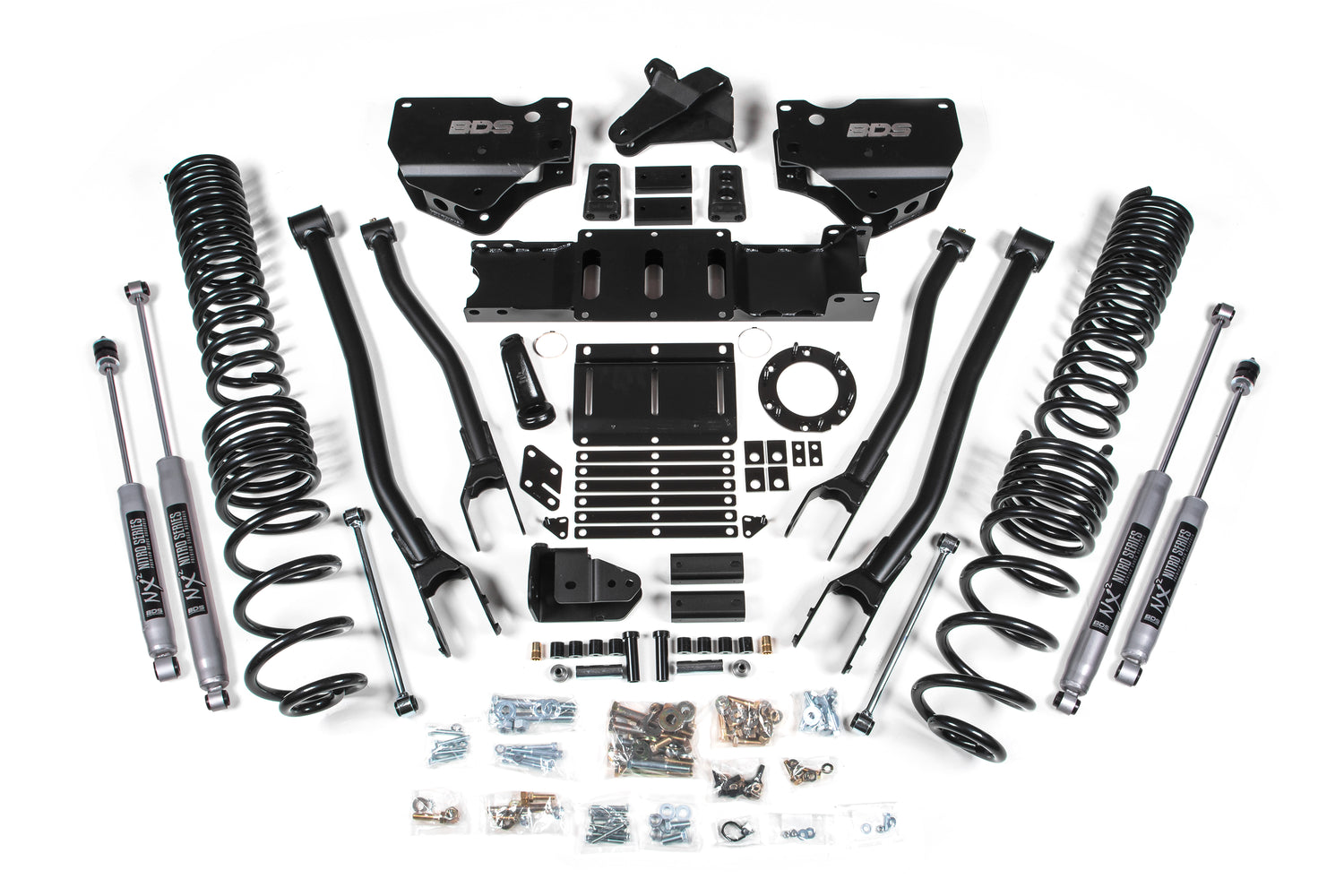

BDS engineered this 5.5" lift kit with 4-Link conversion for the 2019-2024 Ram 2500 gas truck, with clearance for up to 37" tires. Up front it converts the factory stamped steel radius arms to a BDS 4-link using high-strength 1/4" steel brackets and HD upper and lower control arms, plus gas-specific Pro-Ride progressive rate coil springs, a forged drop pitman arm and track bar drop bracket for steering correction, bump stops, brake line brackets and FOX 2.5 Performance Elite shocks. At this height the transfer case is indexed with a supplied indexing ring and new transmission crossmember to allow use of the factory front driveshaft. In the rear it uses progressive rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, sway bar links and a matching set of shocks.

Features

• Heavy duty 4-link arms improve strength, handling and caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 or FOX series IFP gas shocks for improved ride and offroad performance
• 2.5" Impact extruded aluminum body
• 7/8" hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 4.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x13.5
• Wheel Diameter: 18x9
• Back Spacing: 5.625/5.625

Notes

• Will NOT fit air-ride equipped models.
• Gas models only.
• Will NOT fit Power Wagon Models.
• Exhaust modification is required to clear front driveshaft. Vehicle can be driven without the front driveshaft to an exhaust shop.

Includes

• BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2 (UPC 658848612437)
• BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2 (UPC 658848612444)
• BDS012459, 2019-2024 Ram 2500 4.5 inch Rear Coil Box Kit (UPC 658848612482)
• BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas (UPC 658848616374)
• BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas (UPC 658848619788)
• FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• FOX88326067, Kit: 2014-2023 Ram 2500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 11.1 inch, 4-6 inch Lift, Dual Speed Compression Adjust
