2019-2024 Ram HD 6" Lift Kit with NX2 Nitro Shocks (BDS1680H)

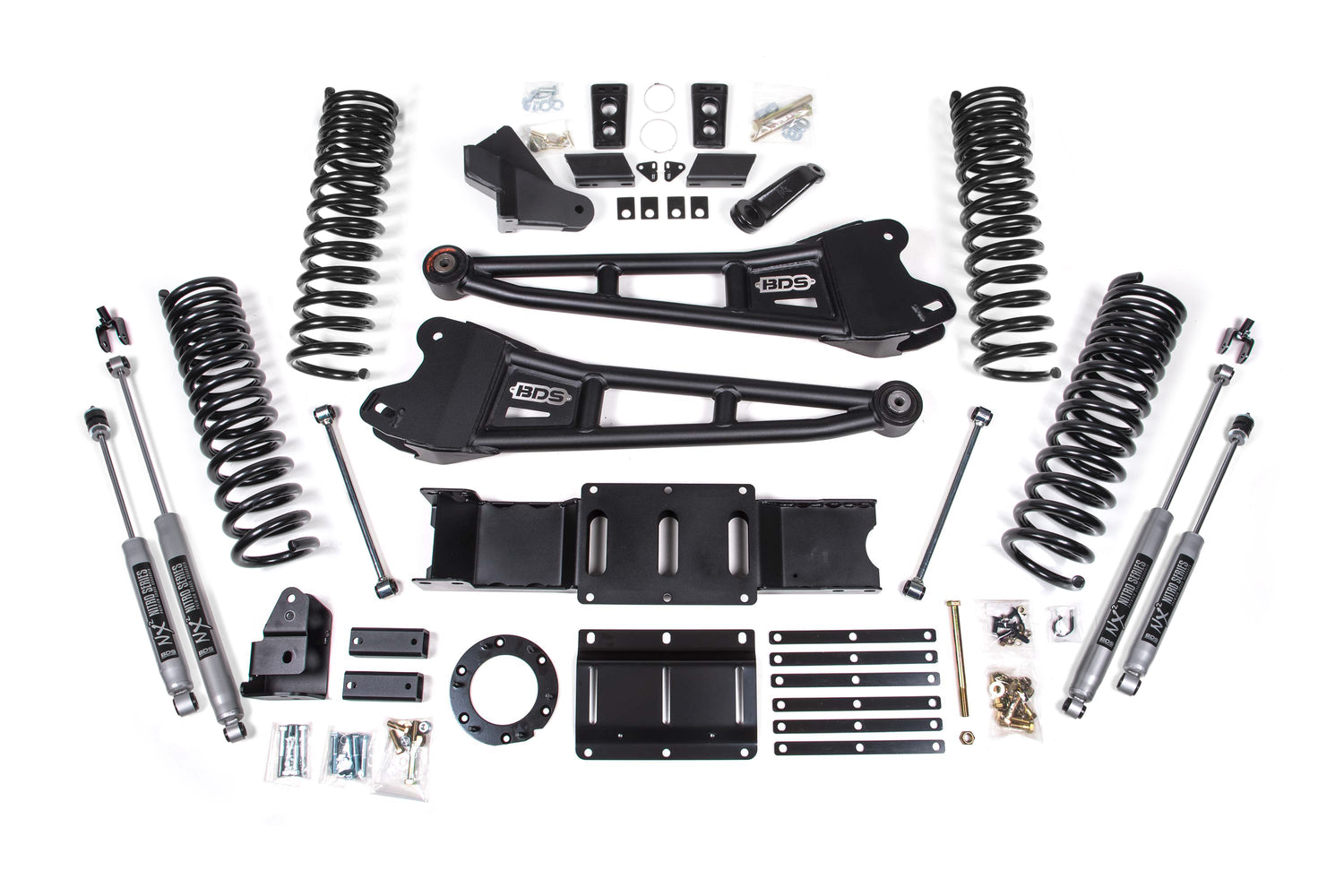

Take your RAM 2500 diesel powered truck to the next level with this 6-inch radius arm lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes progressive rate Pro-Ride coil springs, track bar relocation bracket to correct axle positioning, bump stop extensions, sway bar links and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Will NOT fit air-ride equipped models
• Diesel models only
• Heavy duty 4-link arms improve strength, handling and caster control
• High strength progressive rate coil springs for a great ride on any terrain
• Track bar relocation brackets to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x13.5
• Wheel Diameter: 18x9
• Back Spacing: 5.625/5.625

Includes

• BDS012459, 2019-2024 Ram 2500 4.5 inch Rear Coil Box Kit (UPC 658848612482)
• BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 inch Radius Arm Front Box Kit (UPC 658848612758)
• BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel (UPC 658848616428)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel (UPC 658848619764)
• BDS85752, Shock- 27.40 x 16.20 x 2-3/8 - S50/EB2 (UPC 711745609624)
• BDS85756, Shock- 27.9 x 16.6 x 2-3/8 - Special/EB1 (UPC 711745609655)
