2019-2024 Ram HD 6" Lift Kit with FOX 2.0 Performance Shocks (BDS1680FS)

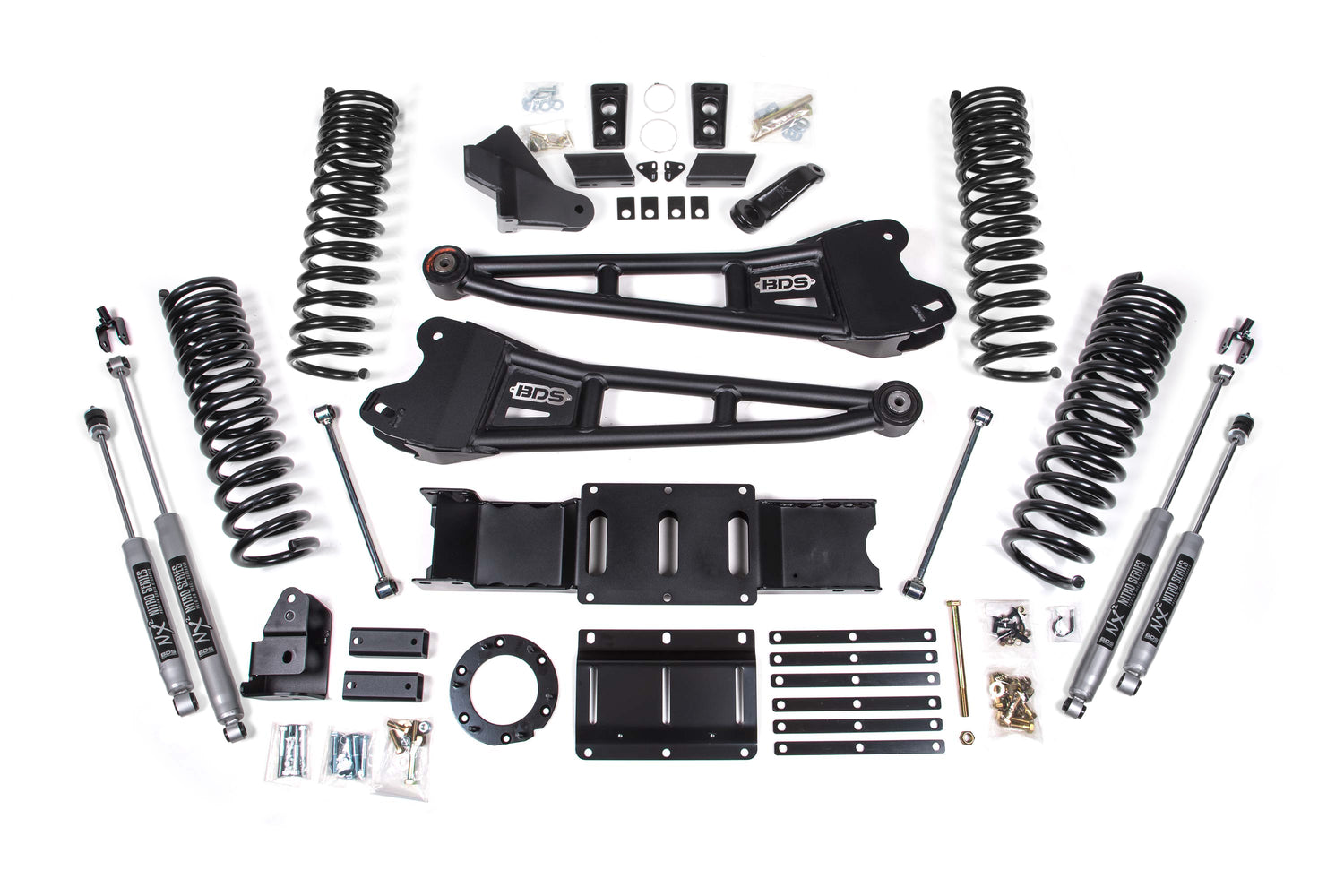

BDS 6" radius arm lift kit for the 2019-2024 Ram 2500 diesel, clearing up to 37" tires. The front uses diesel-specific progressive-rate Pro-Ride coil springs, high-strength tubular replacement radius arms that mount in the factory location and offer caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. A t-case indexing ring and new transmission crossmember let you keep the factory front driveshaft. The rear runs progressive-rate Pro-Ride coil springs, a track bar relocation bracket, bump stop extensions, and sway bar links.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• High strength progressive rate coil springs
• Track bar relocation brackets re-position the axle
• Forged drop pitman arm corrects steering angles
• Front sway bar correction maintains handling performance
• HD transmission crossmember and t-case indexing ring allow use of factory driveshafts
• FOX 2.0 Performance Series IFP monotube shocks
• 2" Impact extruded aluminum body with CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design with application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 4.5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x13.5
• Wheel Diameter: 18x9
• Back Spacing: 5.625/5.625

Notes

• Diesel models only.
• Will NOT fit air-ride equipped models.

Includes

• BDS012459, 2019-2024 Ram 2500 4.5 inch Rear Coil Box Kit (UPC 658848612482)
• BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 inch Radius Arm Front Box Kit (UPC 658848612758)
• BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel (UPC 658848616428)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel (UPC 658848619764)
• FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224756, Fox 2.0 Shock - 27.95 x 17.35 x 2- Special/EB1
