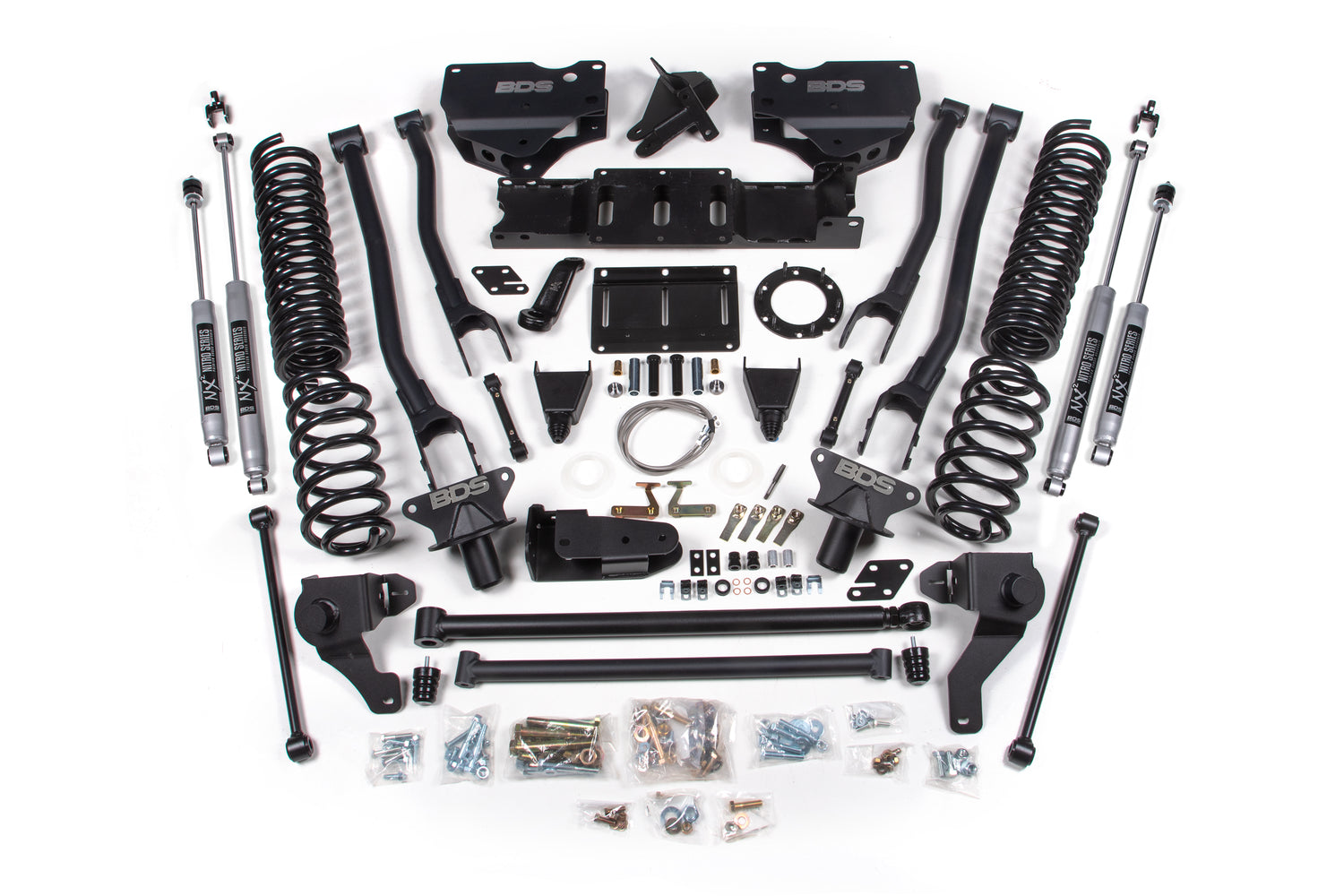

2019-2024 Ram HD 8" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1727H)

BDS 8" 4-Link conversion lift kit for the 2019-2024 Ram 2500 diesel, clearing up to 40" tires. The front converts the factory stamped steel radius arms to a BDS 4-link with HD upper and lower control arms on 1/4" steel brackets, plus diesel-specific progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar bracket for steering correction, bump stops, and brake line brackets. A t-case indexing ring and new transmission crossmember are supplied. The rear uses new outboard frame-mounted coil bucket seats (minor drilling required) for a shorter, more stable coil that resists bowing, plus a track bar relocation system, adjustable track bar, extended sway bar links, and matching shocks.

Features

• Heavy duty 4-link arms improve strength, handling and caster control
• High strength progressive rate coil springs
• Outboard rear coil bucket seats for a shorter, more stable coil that resists bowing
• New heavy duty adjustable rear track bar and extended sway bar links
• Forged drop pitman arm corrects steering angles
• Front sway bar correction maintains handling performance
• HD transmission crossmember and t-case indexing ring allow use of factory driveshafts
• BDS NX2 nitrogen-charged gas shocks
• Twin-tube design with 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston and self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Front Lift Height: 8 inch
• Rear Lift Height: 6 inch

Recommended Tire & Wheel Fitment

• Tire Size: 40x13.5
• Wheel Diameter: 20x9
• Back Spacing: 5.5

Notes

• For diesel models only.
• Fits rear coil sprung models only (will not fit air-ride models).
• Requires an aftermarket front driveshaft (not provided) in addition to the provided indexing ring kit BDS122624 (6-bolt). Both must be installed. Due to truck-to-truck variation, install the kit before measuring for the aftermarket front driveshaft to ensure correct length. The vehicle can be driven without a front driveshaft. Tested with a Drive Line Plus flange and driveshaft, though other high-angle driveshafts can be used.

Includes

• BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2 (UPC 658848612444)
• BDS012627, 2019-2024 Ram 2500 6 inch Rear Box Kit (UPC 658848612833)
• BDS012811, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 8 inch 4- Link Front Box Kit 1 of 2 (UPC 658848612901)
• BDS032619, 2014-2024 Ram 2500 Rear 6 inch Coil Box Kit (UPC 658848616435)
• BDS032802, 2013-2024 Ram 3500 8 inch Front Coil-Diesel (Single Coil Only) (UPC 658848616459)
• BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel (UPC 658848619764)
• BDS85754, Shock - 29.43 x 17.24 x 2-3/8 - S50/EB2 (UPC 711745609631)
• BDS85763, Shock- 29.8 x 17.6 x 2-3/8 - Special/EB1 (UPC 711745609723)
