2019-2024 Ram HD 4" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1705FPE)

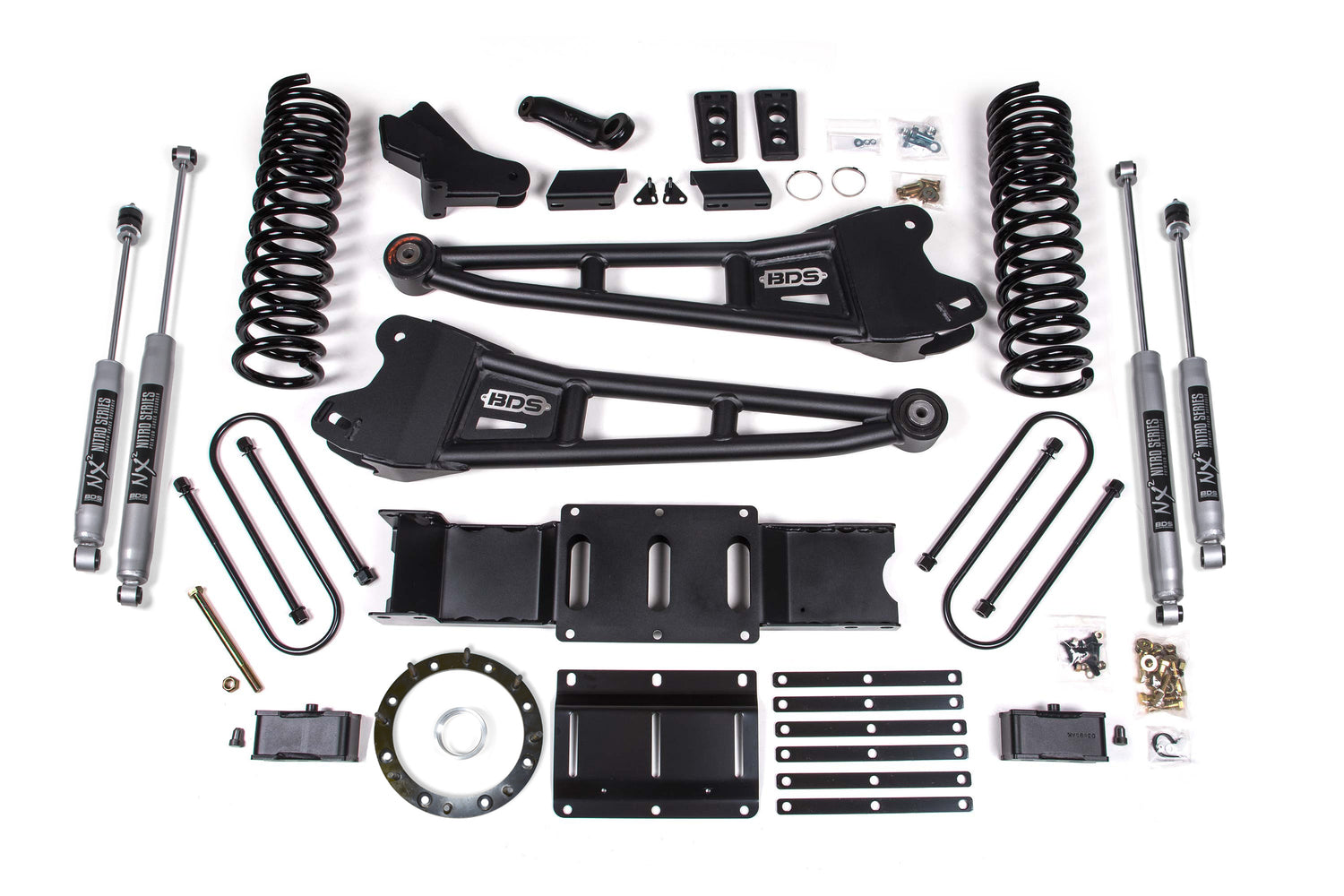

Take your 2019-2024 Ram 3500 diesel to the next level with this BDS Suspension 4" radius arm lift kit, with clearance for up to 35" tires. Up front it runs diesel-specific progressive-rate Pro-Ride coil springs, heavy-duty tubular radius arms with caster adjustment, a forged drop pitman arm and track bar drop bracket for steering correction, sway bar relocation, brake line brackets and tuned FOX 2.5 Performance Elite shocks. A t-case indexing ring and new HD transmission crossmember keep the factory front driveshaft usable at this height. The rear uses a high-strength fabricated lift block, longer u-bolts and matching FOX 2.5 shocks.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• 2 inch rear block w/o overload
• 2.5-inch Impact extruded aluminum shock body
• 7/8-inch hard chrome plated heat-treated alloy steel shaft
• External reservoir separates shock oil from the high-pressure nitrogen
• Dual Speed Compression adjuster standard
• Fully serviceable for a lifetime of use
• 1-year manufacturer's warranty

Specs

• Front Lift Method: Radius Arm
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 2 inch

Notes

• Dually or Mega Cab models with the Aisin (8-bolt) transmission require BDS122409 DEF tank relocation kit.
• Vehicles with a manual transfer case require BDS122423 manual transfer case shifter extension.
• Vehicles with a 2-piece rear driveshaft (carrier bearing) require BDS122406 carrier bearing drop.
• Select the rear box kit based on whether your Ram has the factory rear overload leaf.

Includes

• BDS012216, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/ overload (UPC 658848612123)
• BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit (UPC 658848612420)
• BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas (UPC 658848616374)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel (UPC 658848619764)
• FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchРЎСљ Lift, Dual Speed Compression Adjust
