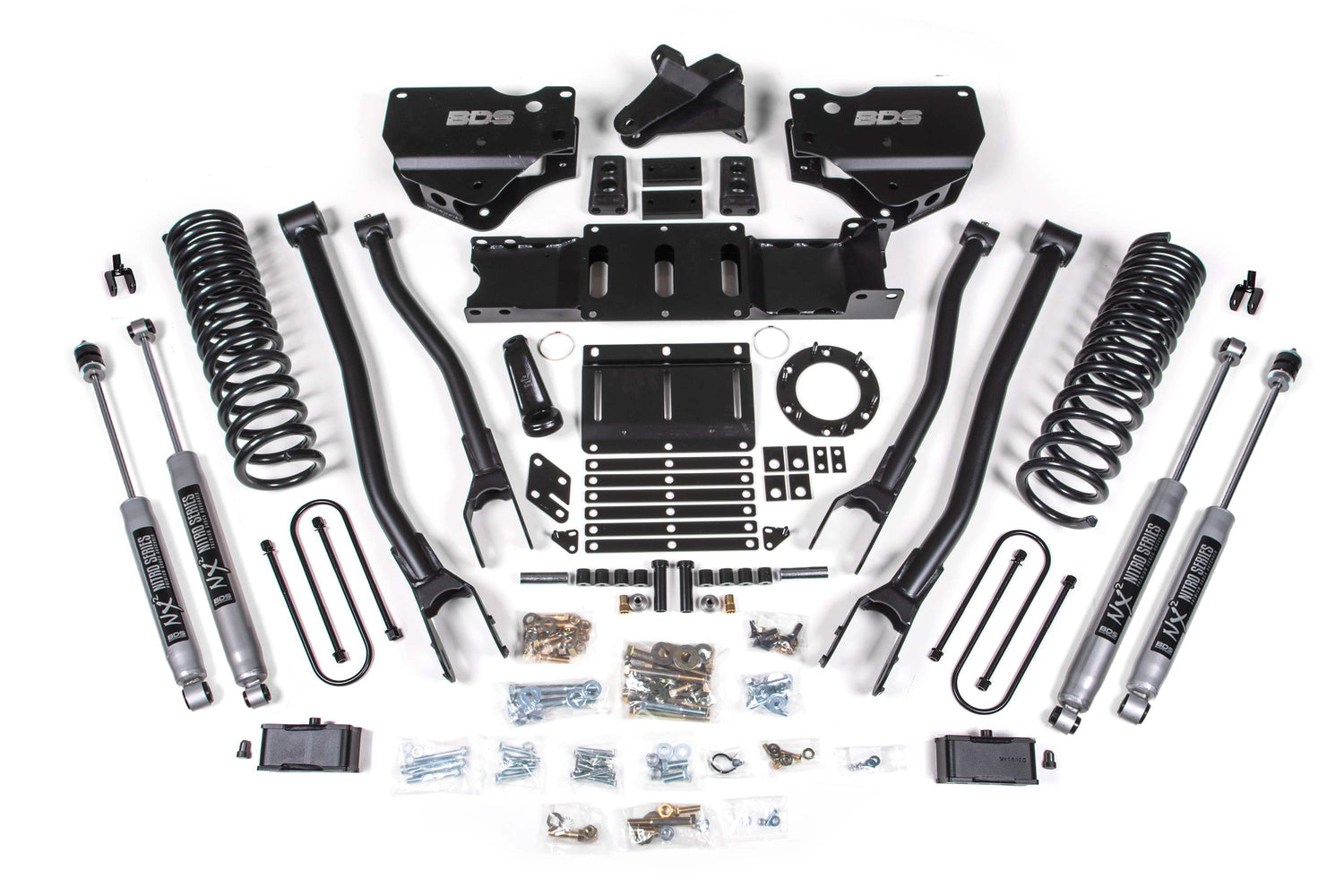

2019-2024 Ram HD 4" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1671H)

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch
• Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
• Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
• Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
• Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.
• Heavy duty 4-link improve strength, handling and caster control
• Front high strength dual rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• With Factory Rear Overload Leaf
• Kits come standard with 6-Bolt indexing ring kit.
• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish
• Includes one BDS012216, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/ overload, UPC Code 658848612123
• Includes one BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2, UPC Code 658848612437
• Includes one BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2, UPC Code 658848612444
• Includes one BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas, UPC Code 658848616374
• Includes one BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel, UPC Code 658848619764
• Includes two BDS85714, Shock - 26.78 x 15.96 x 2-3/8 - S50/EB2, UPC Code 711745609549
• Includes two BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1, UPC Code 711745609686

Details

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength 1/4-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, dual rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Tire Size: 37 x 12.5 Tire Size 2: 37 x 12.5 Wheel Diameter: 17 x 9 Wheel Diameter 2: 20 x 9 Back Spacing: 5.625/5.625

Indexing Ring Option 6 Bolt Indexing Ring

Shock Option NX2 Nitro Series
