2019-2024 Ram HD 4" Lift 4-Link Diesel 3" Rear Block 6-Bolt T-Case (BDS1667H)

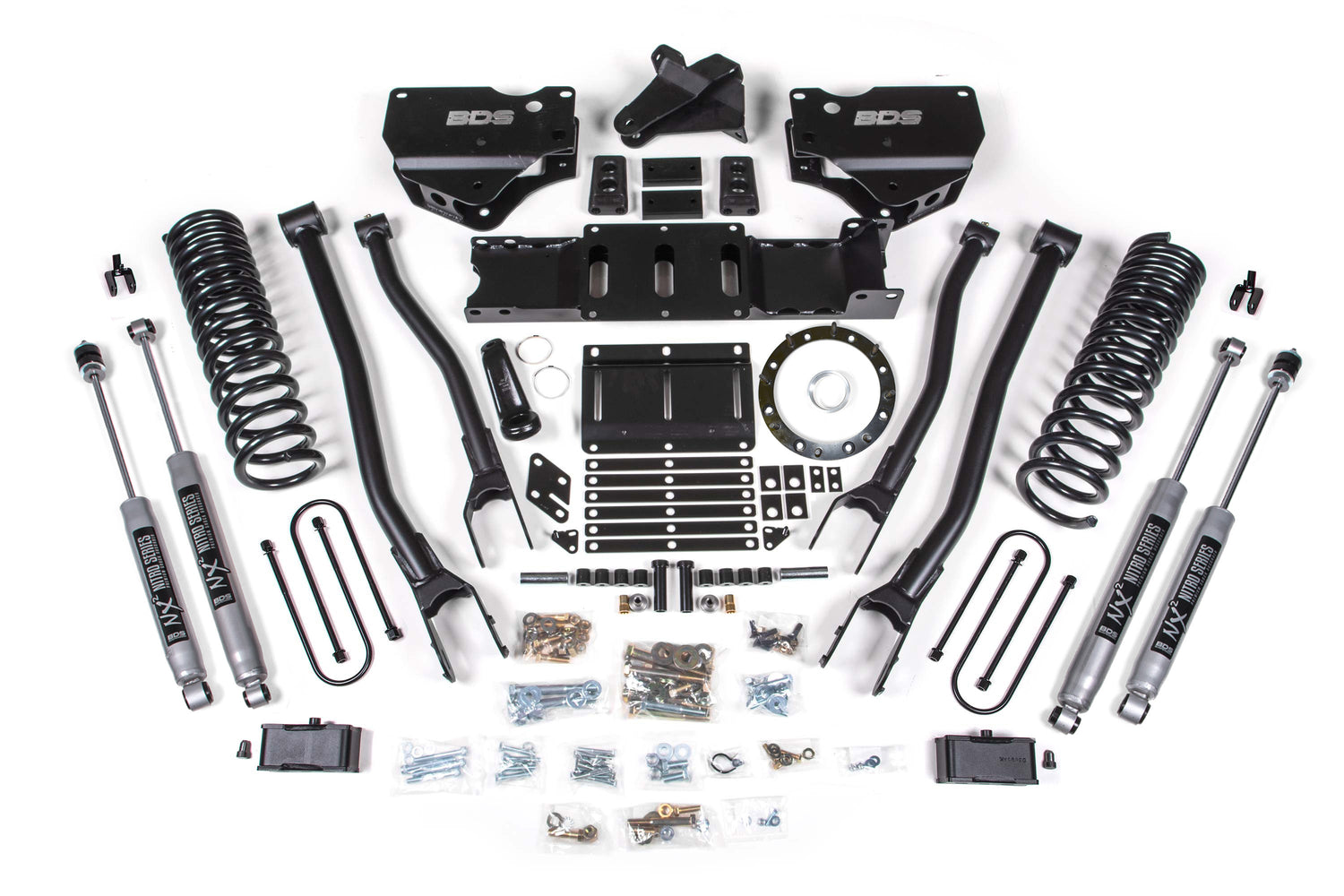

BDS Suspension's 4" lift for 2019-2024 Ram 3500 diesel (3" rear block, 6-bolt transfer case) converts the factory radius arms to a heavy-duty 4-link for better handling, strength, and caster control, clearing up to 37" tires. It comes complete with diesel-specific dual-rate Pro-Ride coil springs, a forged drop pitman arm, track bar relocation bracket, sway bar relocation, brake line brackets, NX2 or FOX 2.0 nitrogen-charged shocks, a fabricated 3" rear block with longer u-bolts, and an indexing ring with new transmission crossmember to keep the factory front driveshaft.

Features

• Heavy duty 4-link system improves strength, handling, and caster control
• Front high strength dual rate coil springs provide a smooth, predictable ride across various terrains
• Front track bar relocation bracket repositions the axle for optimal steering geometry
• Includes everything needed for a 4” lift with 4-link conversion for Ram 3500 diesel trucks (2019-2024)
• Designed to allow clearance for up to 37” tires
• Forged drop pitman arm and heavy-duty track bar drop bracket for steering correction
• Replacement radius arms, sway bar relocation, brake line brackets, and tuned NX2 or FOX 2.0 nitrogen charged shocks included
• Transfer case indexing ring and new transmission crossmember supplied for factory front driveshaft compatibility
• High-strength fabricated 3” rear lift block with longer u-bolts and matching rear shocks
• Aftermarket product by BDS Suspension designed specifically for diesel-powered Ram 3500 models
