2019-2024 Ram HD 4" Lift 4-Link Diesel Block (BDS1673FPE)

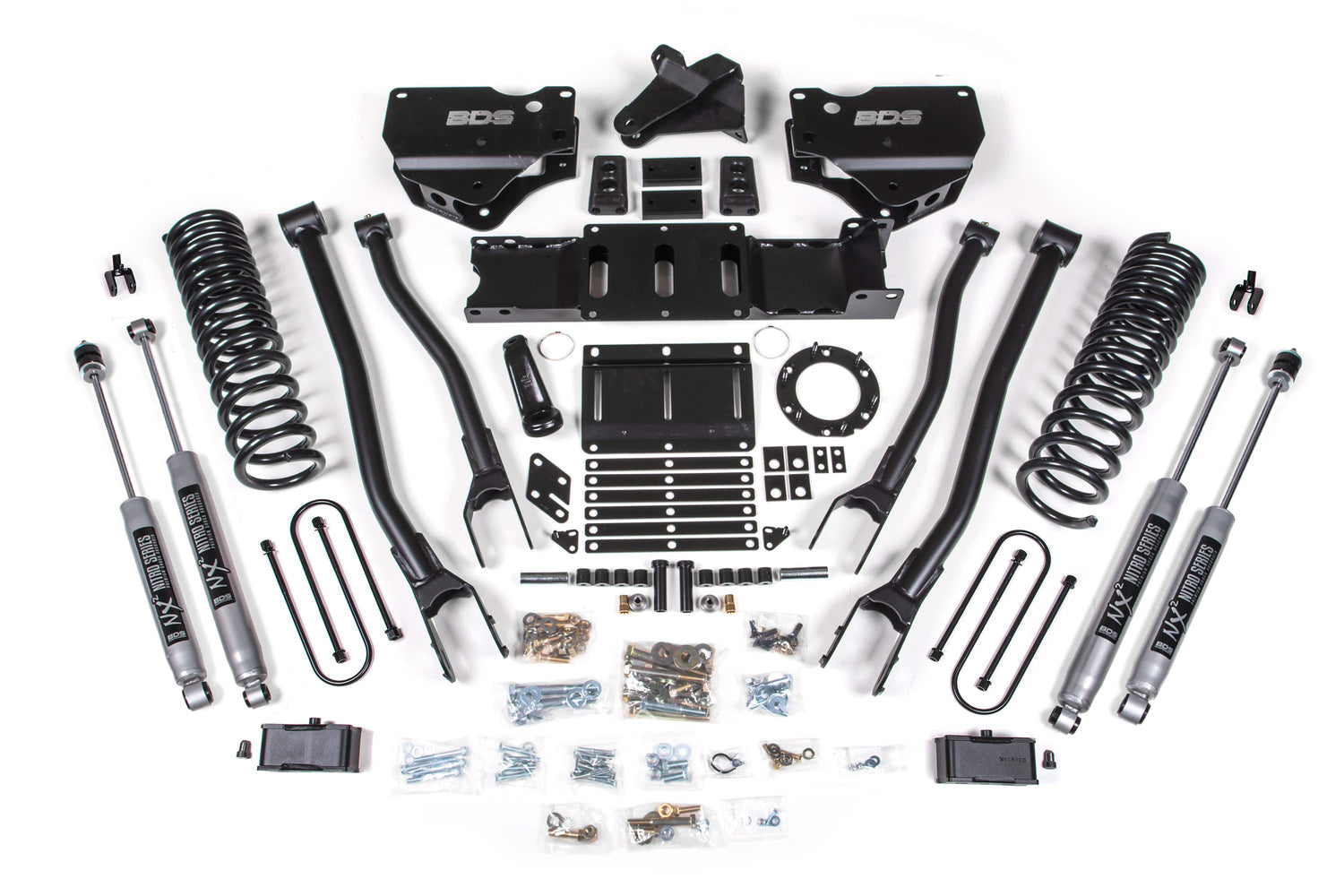

BDS Suspension's 4" lift for 2019-2024 Ram 3500 diesel uses a heavy-duty 4-link to improve handling, strength, and caster control while clearing up to 37" tires. It includes diesel-specific Pro-Ride coil springs, heavy-duty radius arms, a forged drop pitman arm, track bar bracket, brake line brackets, sway bar relocation, NX2 or FOX 2.0 shocks, a fabricated rear block with longer u-bolts, plus an indexing ring and new transmission crossmember for factory front driveshaft use.

Features

• Heavy duty 4-link system improves strength, handling, and caster control
• Front high strength dual rate coil springs provide a smooth ride on any terrain
• Front track bar relocation bracket repositions the axle for optimal steering geometry
• Includes diesel-specific Pro-Ride coil springs and heavy-duty replacement radius arms
• Forged drop pitman arm and track bar bracket correct steering
• Brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks included
• Lift kit provides clearance for up to 37” tires
• High-strength fabricated rear lift block with longer u-bolts and matching shocks
• Transfer case indexing ring and new transmission crossmember supplied for front driveshaft use
