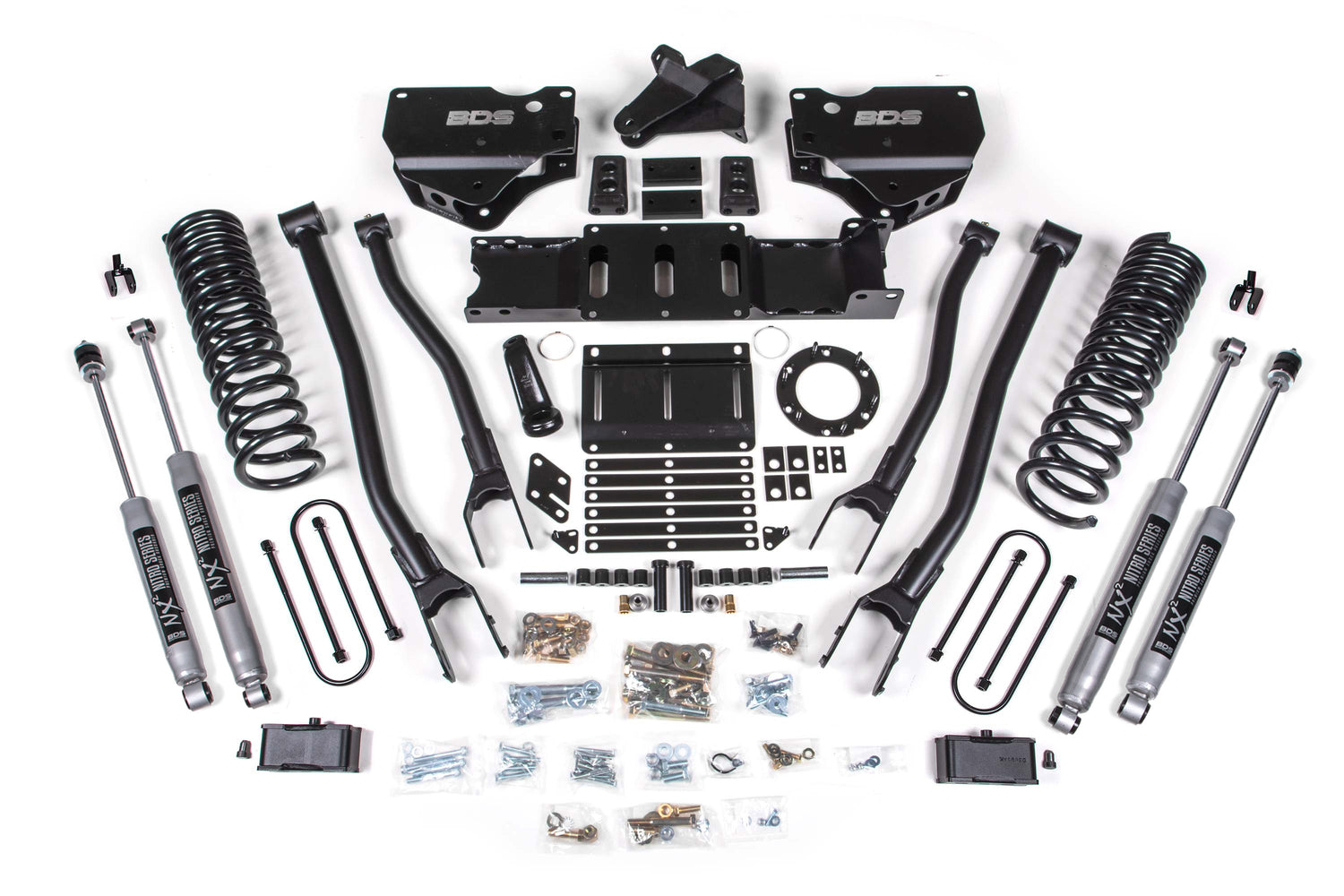

2019-2024 Ram HD 4" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1671FS)

Built to outperform, BDS Suspension engineered a 4-inch lift kit with 4-Link conversion for your RAM 3500 diesel powered truck that will surely impress. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37 inch Tires. Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty replacement radius arms, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 or FOX 2.0 nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength fabricated lift block, longer u-bolts and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength dual rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance
• With Factory Rear Overload Leaf
• Kits come standard with 6-Bolt indexing ring kit.
• 2-inch Impact extruded aluminum body
• Internal floating piston (Internal Floating Piston) monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 17x9, 20x9
• Back Spacing: 5.625/5.625

Notes

• Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
• Mega Cab inch's with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
• Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
• Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Includes

• BDS012216, 2019-2024 Ram 3500 2 inch Rear Box 4 3/8 inch U-bolt w/ overload (UPC 658848612123)
• BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2 (UPC 658848612437)
• BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2 (UPC 658848612444)
• BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas (UPC 658848616374)
• BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel (UPC 658848619764)
• FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
• FOX98224759, Fox 2.0 Shock 30.05 x 18.45 x 2- EB1/EB1
