2019-2024 Ram HD 4" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1676H)

Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Features

• Heavy duty 4-Link control arms and conversion brackets improve strength, handling and caster control
• Gas-specific Pro-Ride coil springs for a great ride on any terrain
• Forged drop pitman arm and track bar bracket to correct steering angles
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

Shock Features

• Nitrogen-charged
• Twin-tube design
• 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8-inch high-flow piston
• Self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: 4-Link
• Rear Lift Method: Block
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch
• Shocks Included: Yes

Notes

• A DEF tank relocation bracket (part# 122409) is required for this kit to work with Dually or Mega Cab models with Aisin transmissions (8-bolt).
• Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
• Vehicles equipped with a Manual T-case require BDS122422 Manual transfer case shifter extension.
• Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 Carrier bearing drop.
• This rear box kit is for models without a factory Rear Overload Leaf. Select the rear box kit based on whether or not your RAM has a factory Rear Overload Leaf.

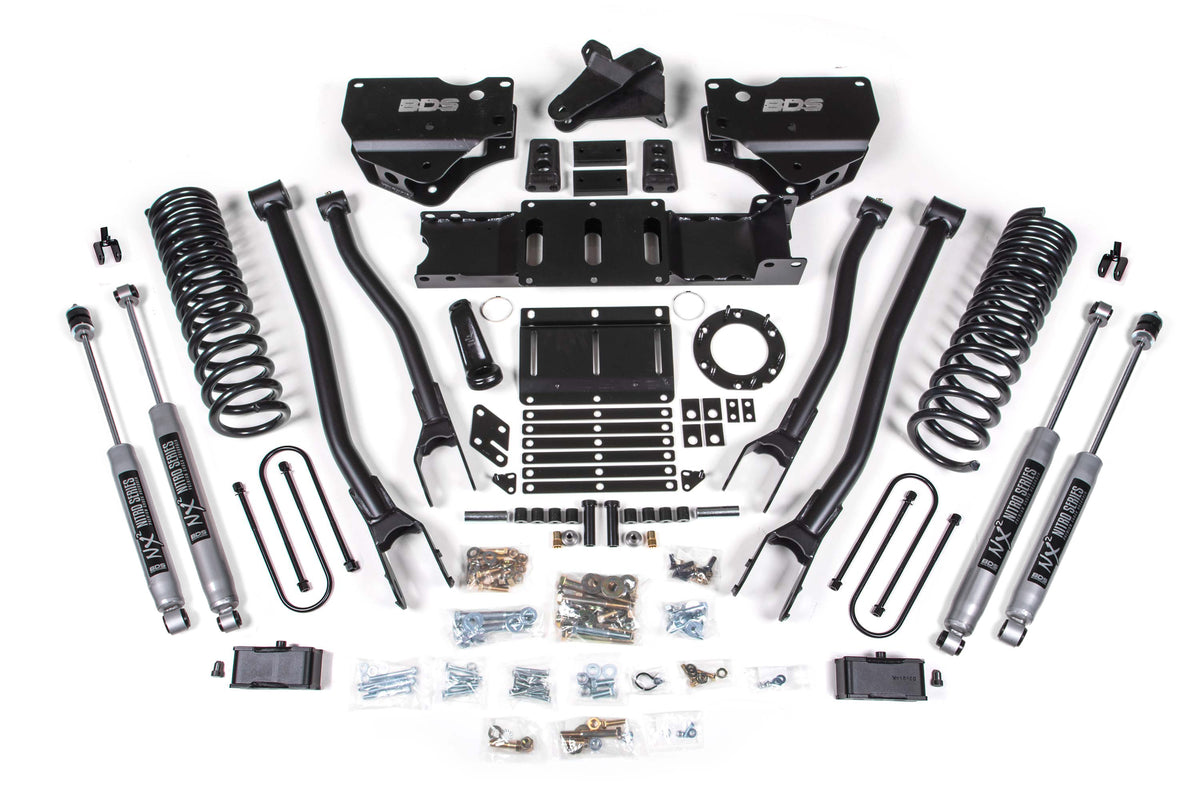

Includes

• BDS012328 - 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/o overload (UPC 711745611511)
• BDS012433 - 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1 of 2 (UPC 658848612437)
• BDS012434 - 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 2 of 2 (UPC 658848612444)
• BDS032302 - 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122626 - 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas (UPC 658848619788)
• BDS85700 - Shock 25.20 x 15.20 x 2-3/8, S50/EB2 (UPC 711745609495), Qty 2
• BDS85759 - Shock 29.80 x 17.60 x 2-3/8, EB1/EB1 (UPC 711745609686), Qty 2

Manufacturer Description

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned NX2 nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft, so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of NX2 Nitro shocks.
