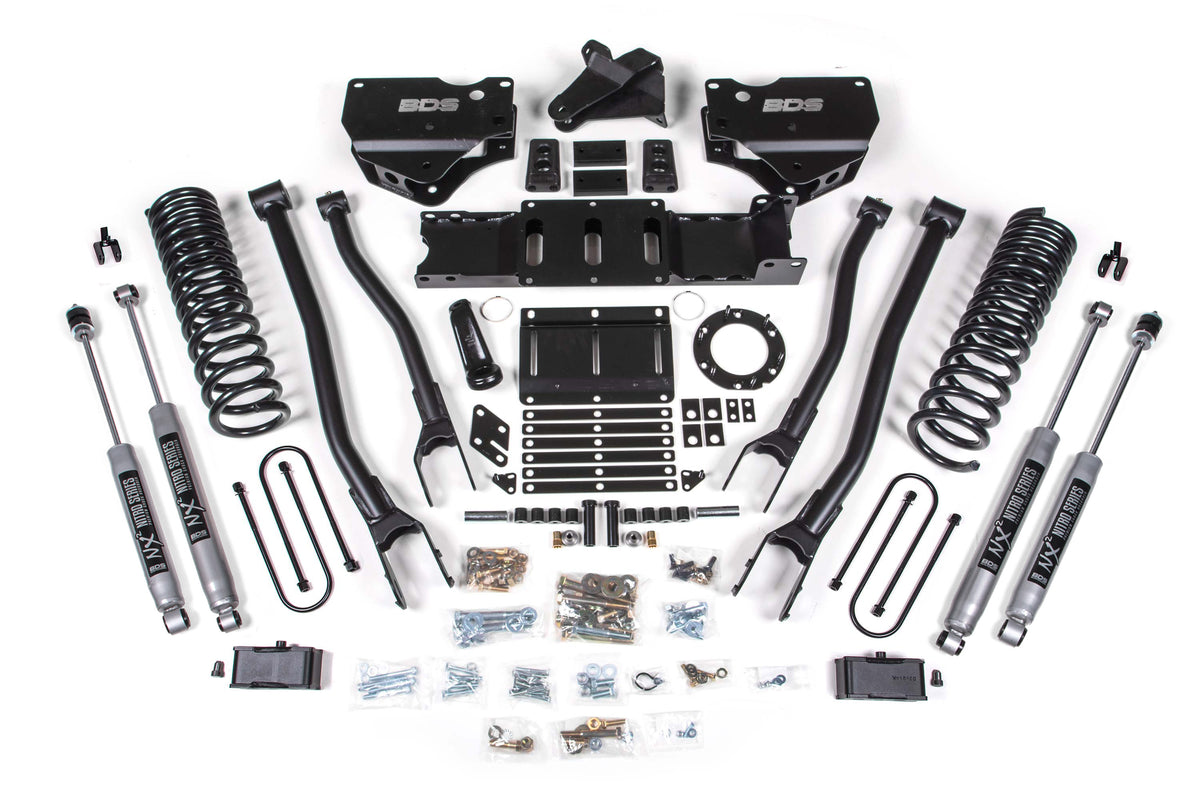

2019-2024 Ram HD 4" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1676FS)

Raise your RAM 3500 gas powered truck to the next heights with this 4-inch lift kit with 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35 inch tires.

Features

• Heavy duty 4-Link control arms and conversion brackets improve strength, handling and caster control
• Gas-specific Pro-Ride coil springs for a great ride on any terrain
• Forged drop pitman arm and track bar bracket to correct steering angles
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts

Shock Features

• 2-inch Impact extruded aluminum body
• Internal floating piston monotube design
• CNC machined 6061-T6 aluminum mounting ends
• Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design
• Application-specific valving to maximize performance
• Long-lasting clear anodized finish

Specs

• Front Lift Method: 4-Link
• Rear Lift Method: Block
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch
• Shocks Included: Yes

Notes

• A DEF tank relocation bracket (part# 122409) is required for this kit to work with Dually or Mega Cab models with Aisin transmissions (8-bolt).
• Exhaust modification is required to clear the front driveshaft. The vehicle can be driven w/o a front driveshaft to an exhaust shop.
• Vehicles equipped with a Manual T-case require BDS122422 Manual transfer case shifter extension.
• Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 Carrier bearing drop.
• This rear box kit is for models without a factory Rear Overload Leaf. Select the rear box kit based on whether or not your RAM has a factory Rear Overload Leaf.

Includes

• BDS012328 - 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/o overload (UPC 711745611511)
• BDS012433 - 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1 of 2 (UPC 658848612437)
• BDS012434 - 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 2 of 2 (UPC 658848612444)
• BDS032302 - 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122626 - 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas (UPC 658848619788)
• FOX98224700 - Fox 2.0 Shock 25.65 x 16.05 x 2, S50/EB1, Qty 2
• FOX98224759 - Fox 2.0 Shock 30.05 x 18.45 x 2, EB1/EB1, Qty 2

Manufacturer Description

Up front the lift kit includes gas-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned FOX 2.0 nitrogen charged shocks. At this height, the transfer case needs to be indexed to allow use of the factory front driveshaft, so an indexing ring and new transmission crossmember are supplied. In the rear this kit utilizes a high-strength steel lift block, longer u-bolts and a matching set of FOX 2.0 Performance shocks.
