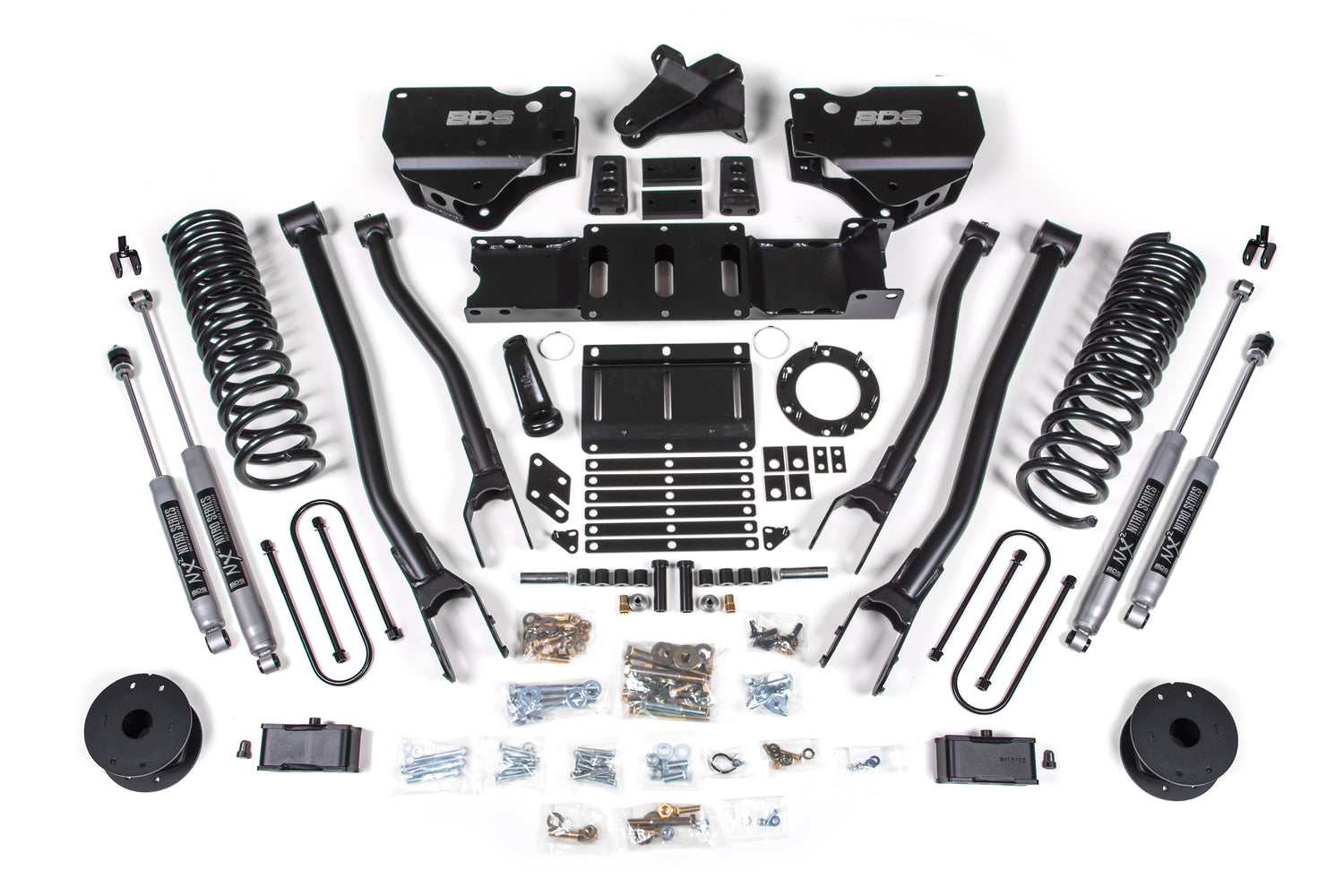

2019-2024 Ram HD 4" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1723FS)

BDS 4" 4-Link conversion lift kit for the 2019-2024 Ram 3500 with factory rear air bags, clearing up to 37" tires. The front uses Pro-Ride coil springs, high-strength tubular replacement radius arms that mount in the factory location and offer caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. A t-case indexing ring and new transmission crossmember let you keep the factory front driveshaft. The rear runs a high-strength steel lift block, heavy duty air bag spacer, and longer u-bolts.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs
• Front track bar relocation bracket re-positions the axle
• Forged drop pitman arm corrects steering angles
• Front sway bar correction maintains handling performance
• HD transmission crossmember and t-case indexing ring allow use of factory driveshafts
• FOX 2.0 Performance Series IFP monotube shocks
• 2" Impact extruded aluminum body with CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design with application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 20x9
• Back Spacing: 5.625

Notes

• Fits OE air ride systems only.
• Exhaust modification is required to clear the front driveshaft. The vehicle can be driven without a front driveshaft to an exhaust shop.
• Vehicles with a manual t-case require BDS122422 manual transfer case shifter extension.
• Vehicles with a 2-piece rear driveshaft (carrier bearing) require BDS122406 carrier bearing drop.

Includes

• BDS012319, 2019-2024 Ram 3500 Auto Level Air Suspension 3 inch Rear w/o overload (UPC 711745611474)
• BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2 (UPC 658848612437)
• BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2 (UPC 658848612444)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas (UPC 658848619788)
• FOX98224700, Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
• FOX98224758, Fox 2.0 Shock 27.95 x 17.35 x 2- EB1/EB1 (UPC 692878899062)
