2019-2024 Ram HD 4" Lift Kit with FOX 2.5 Performance Elite Shocks (BDS1701FPE)

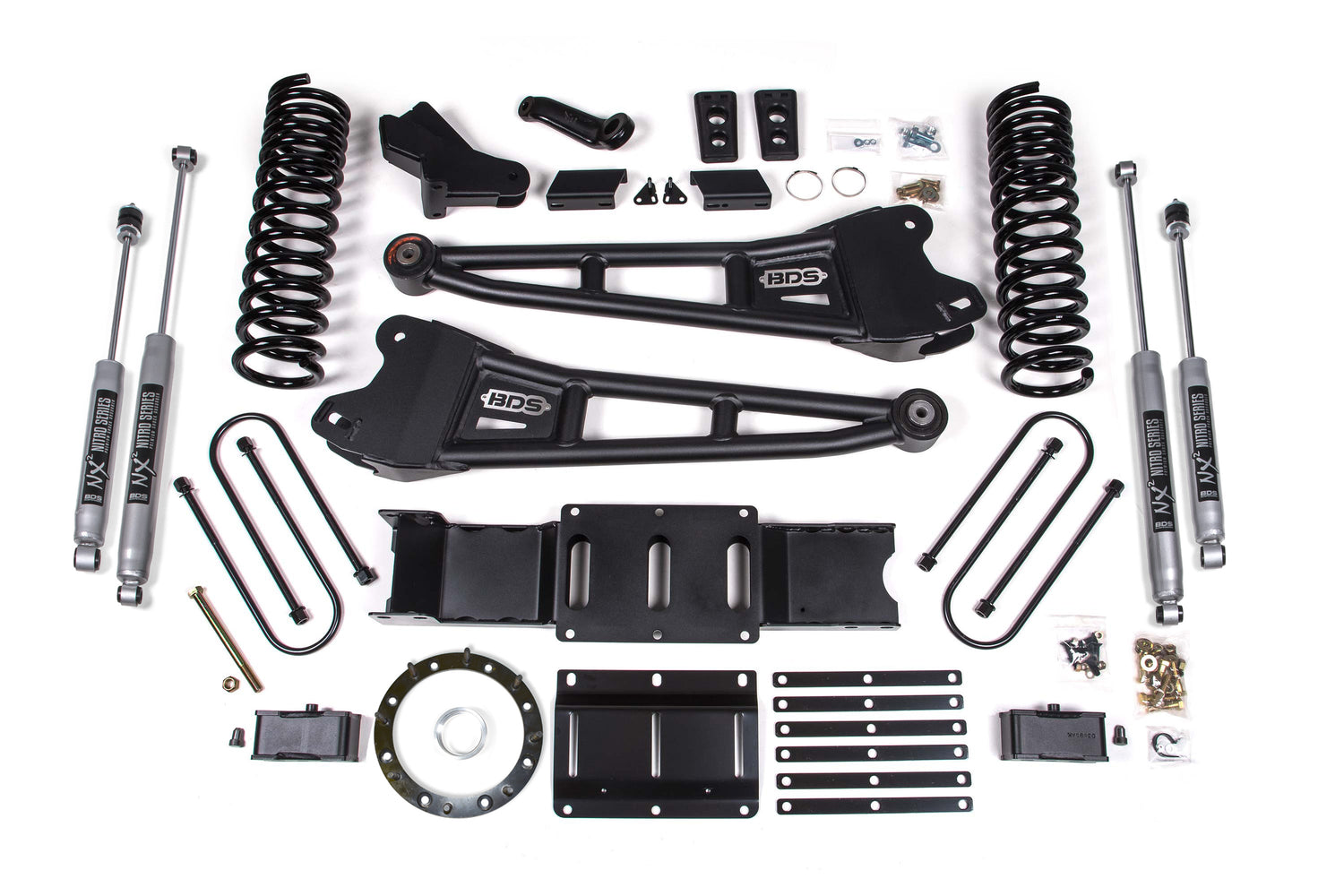

This BDS 4" radius arm lift kit fits the 2019-2024 Ram 3500 gas truck, with clearance for up to 37" tires. Up front it uses high-strength tubular replacement radius arms that mount in the factory location and offer caster adjustment, gas-specific Pro-Ride progressive rate coil springs, a forged drop pitman arm and track bar drop bracket for steering correction, sway bar relocation, brake line brackets and FOX 2.5 Performance Elite shocks. At this height the transfer case is indexed with a supplied indexing ring and new transmission crossmember to allow use of the factory front driveshaft. In the rear it uses a high-strength fabricated lift block, longer u-bolts and a matching set of shocks.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 or FOX series IFP gas shocks for improved ride and offroad performance
• 2.5" Impact extruded aluminum body
• 7/8" hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 17x9, 20x9
• Back Spacing: 5.625/5.625

Notes

• Select rear box kit based on whether or not your Ram has factory Rear Overload Leaf.
• Exhaust modification is required to clear the front driveshaft. The vehicle can be driven without a front driveshaft to an exhaust shop.
• A DEF tank relocation bracket BDS122409 is required for this kit to work with Dually or Mega Cab models with Aisin Transmissions (8-bolt).
• Vehicles equipped with a Manual T-case require BDS122422 Manual transfer case shifter extension.
• Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 Carrier bearing drop.

Includes

• BDS012329, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/ overload (UPC 658848612291)
• BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit (UPC 658848612420)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas (UPC 658848619788)
• FOX88326063, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 2-3.5 inch Lift, Dual Speed Compression Adjust
• FOX88326101, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 2-3.5 inchРЎСљ Lift, Dual Speed Compression Adjust
