2019-2024 Ram HD 4" Lift Kit with NX2 Nitro Shocks (BDS1701H)

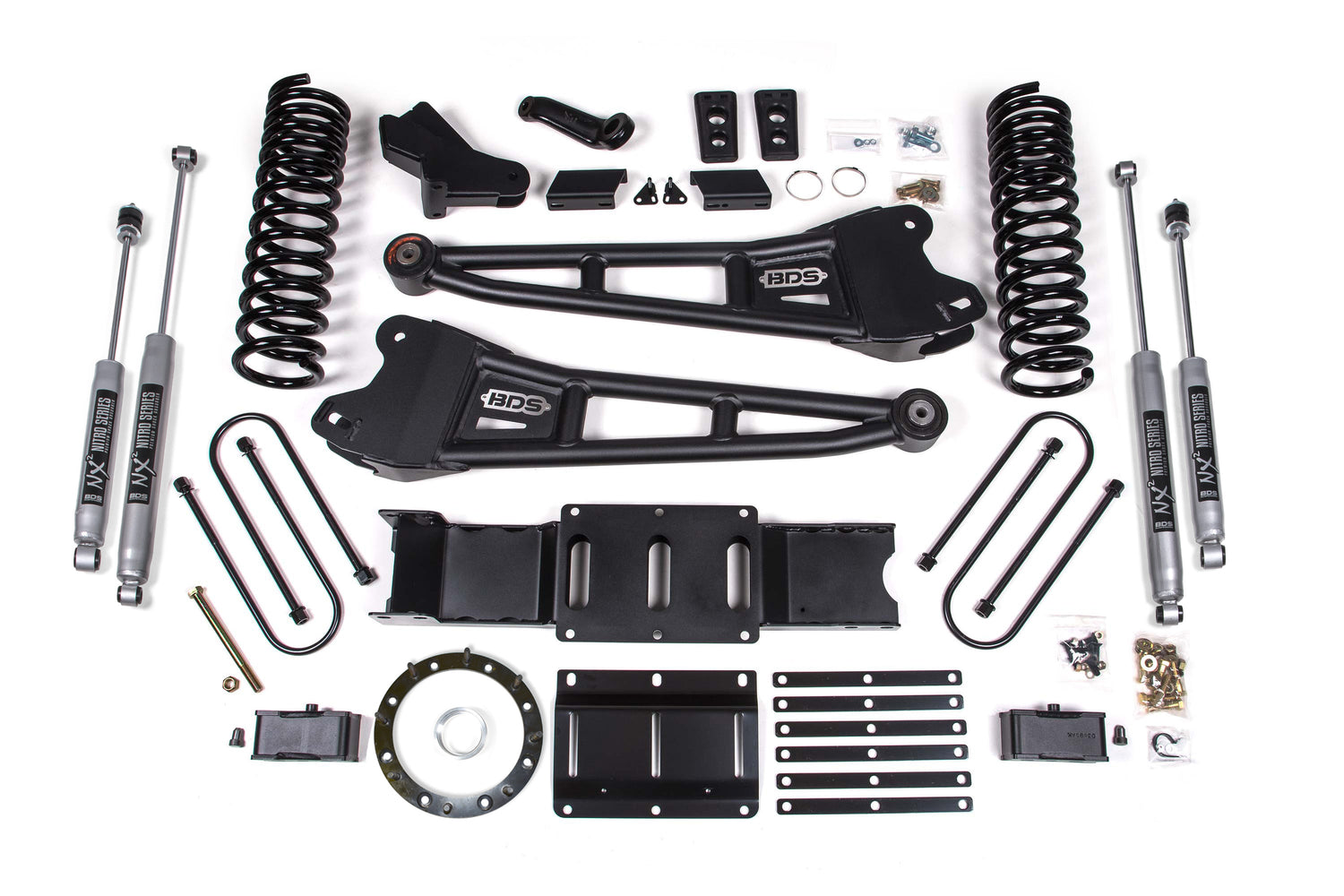

BDS 4" radius arm lift kit for the 2019-2024 Ram 3500 gas, clearing up to 37" tires. The front uses gas-specific progressive-rate Pro-Ride coil springs, high-strength tubular replacement radius arms that mount in the factory location and offer caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. A t-case indexing ring and new transmission crossmember let you keep the factory front driveshaft. The rear runs a high-strength fabricated lift block and longer u-bolts.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs
• Front track bar relocation bracket re-positions the axle
• Forged drop pitman arm corrects steering angles
• Front sway bar correction maintains handling performance
• HD transmission crossmember and t-case indexing ring allow use of factory driveshafts
• BDS NX2 nitrogen-charged gas shocks
• Twin-tube design with 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston and self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Blocks
• Shocks Included: Yes
• Front Lift Height: 4 inch
• Rear Lift Height: 3 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x12.5
• Wheel Diameter: 17x9, 20x9
• Back Spacing: 5.625/5.625

Notes

• Exhaust modification is required to clear the front driveshaft. The vehicle can be driven without a front driveshaft to an exhaust shop.
• Select the rear box kit based on whether your RAM has the factory rear overload leaf.
• Dually or Mega Cab models with Aisin (8-bolt) transmissions require DEF tank relocation bracket BDS122409.
• Vehicles with a manual t-case require BDS122422 manual transfer case shifter extension.
• Vehicles with a 2-piece rear driveshaft (carrier bearing) require BDS122406 carrier bearing drop.

Includes

• BDS012329, 2019-2024 Ram 3500 3 inch Rear Box 4 3/8 inch U-bolt w/ overload (UPC 658848612291)
• BDS012431, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4 inch Front Box Kit (UPC 658848612420)
• BDS032302, 2013-2024 Ram 3500 / 2014-2024 2500 Ram Coils 3 inch Diesel - 4 inch Gas (UPC 658848616343)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas (UPC 658848619788)
• BDS85700, Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2 (UPC 711745609495)
• BDS85759, Shock- 29.80 x 17.60 x 2-3/8 - EB1/EB1 (UPC 711745609686)
