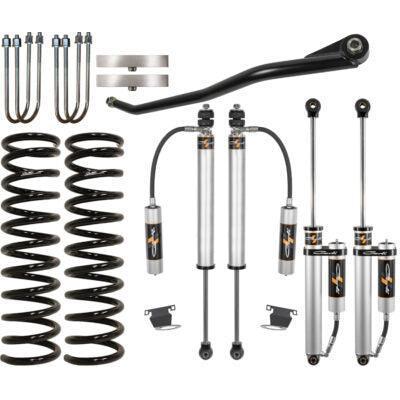

2019-2025 Ram 3500 Diesel 2.5" Lift Carli-Spec Backcountry Leveling System & 1" Block (CS-DLVL-BC-CS-19-D)

Carli Suspension

Price Beat Guarantee

We'll beat any competitor by $5. Guaranteed.

$3,961.44 CAD
Special Order - Average 2-4 Weeks for Fulfillment

Build Your Kit

Review 'Additional Info' for required and optional components

Torsion Sway Bar

Optional

Radius Arm Drop Bracket

Optional

Leaf spring Shackle

Optional

Much of the jarring ride of the leaf-spring rear can be attributed to the factory vulcanized bushings in the leaf spring pack and shackle. The factory shackle is very strong BUT the design is not conducive to a smooth ride. The Carli shackle is constructed of 1/4″ American cold-rolled steel. The mid-length gusset ensures no deflection while the serviceable bushings offer a far superior ride to the bind of the factory bushings.

Low Mount Steering Stabilizer

Optional

Bolt in steering stabilizer replacing the OEM unit in the factory location. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the left-hand pull inherent to tires like Nitto Trail Grapplers. Run in conjunction with the Carli High Mount for the ultimate Dual, Opposing Steering Stabilizer combination that's infinitely adjustable.

High-Mount Steering Stabilizer

Optional

Bolt in compliment to the Carli Low-Mount Steering Stabilizer. Adjustable from 70-200 psi to run neutral (no directional influence at 70psi) or at 200psi to counter the right-hand pull inherent to tires like Toyo Mud Terrains. This is NOT a primary stabilizer and MUST be run with either a Carli or OEM lower stabilizer in the factory location.

Radius Arm

Optional

Lifetime Ball Joints

Optional

Subtotal

Part Specs
Warranty
Description

The perfect lift kit for those wanting optimal performance on highways and off-road, this Backcountry lift kit includes Carli custom-tuned 2.0 remote reservoir shocks built with 6063 Aluminum, 5/8" hardened steel chrome plated shaft, and 6061 billet rod ends. Multi-Rate Coil Springs provide a slightly softer, more compliant ride at low compression, and become firmer as more force is applied.

Part Number: CS-DLVL-BC-CS-19-D

Features
  • Designed for those seeking the best on and off-road performance on a budget, with no loss of towing capacity
  • Multi-rate front coil springs, front and rear shock package, 1" block and u-bolt kit, and adjustable track bar
  • Increases wheel travel to 9.5" front and 11.3" rear
  • Allows for the fitment of 35" tires
Notes
  • Not compatible with factory rear air assist trucks
  • This system is tuned for the 3500s equipped with rear leaf springs. It will install on the 3500 trucks equipped with the factory auto-leveling air assist, but the tuning is NOT refined to the platform. Carli recommends you measure the truck as it often takes less than 2.5" of front lift to level the Air-Assist Rams
  • This system will NOT be upgradeable to any other Carli Suspension Systems
  • Fits 2019+ 3500 SRW. For 2019+ 3500 DRW, use other option (CS-DLVL-BC-CS-19-D) with NO BLOCK

Warranty
Limited 1 (One) Year Warranty
