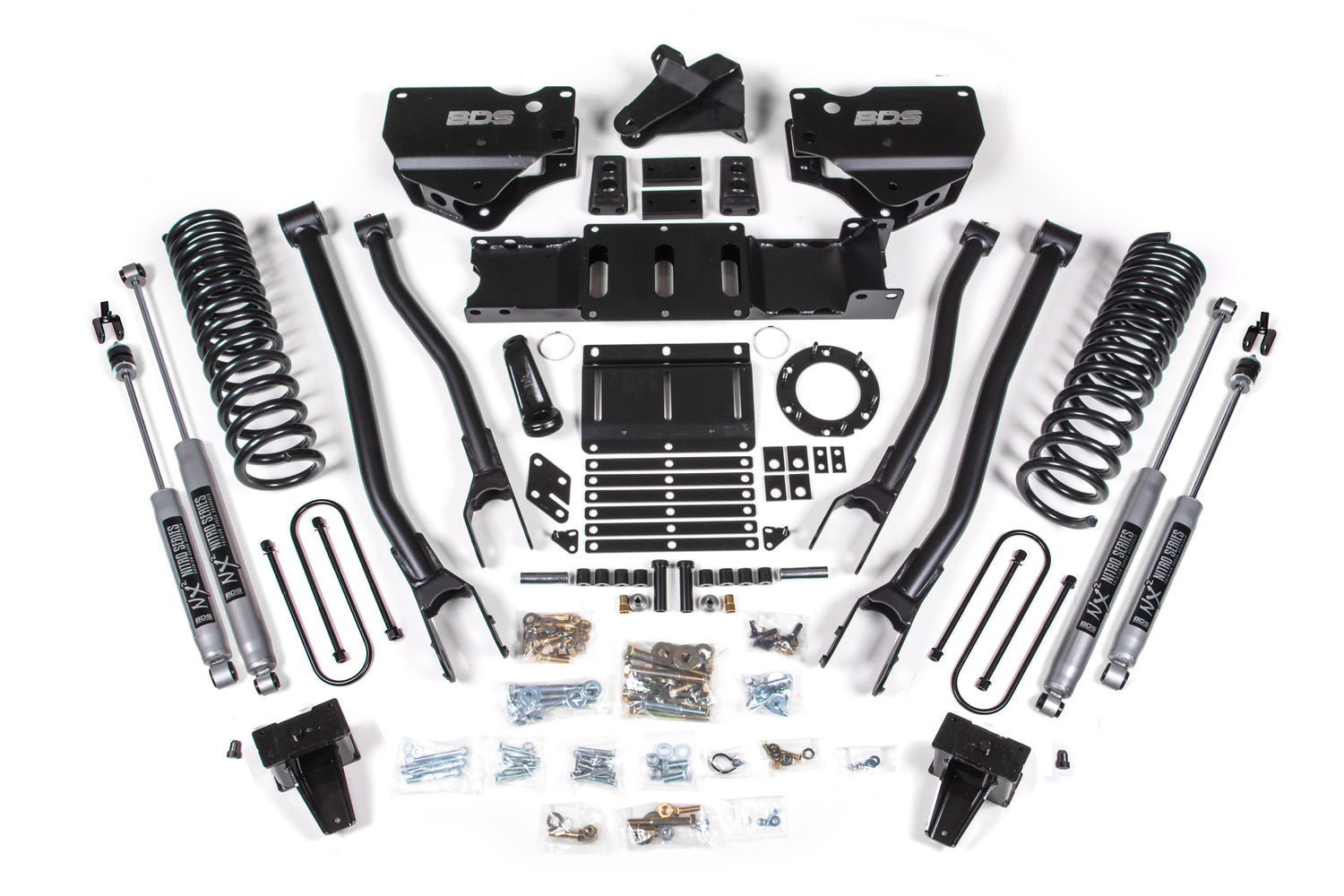

2019-2024 Ram HD 5.5" 4-Link Conversion Kit with FOX 2.5 Performance Elite Shocks (BDS1695FPE)

This BDS 5.5" lift kit with 4-Link conversion fits the 2019-2024 Ram 3500 gas truck, with clearance for up to 37" tires. Up front it converts the factory stamped steel radius arms to a BDS 4-link using high-strength 1/4" steel brackets and HD upper and lower control arms, plus gas-specific Pro-Ride progressive rate coil springs, a forged drop pitman arm and track bar drop bracket for steering correction, sway bar relocation, brake line brackets and FOX 2.5 Performance Elite shocks. At this height the transfer case is indexed with a supplied indexing ring and new transmission crossmember to allow use of the factory front driveshaft. In the rear it uses a high-strength steel lift block, longer u-bolts and a matching set of shocks.

Features

• Heavy duty 4-link improves strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 or FOX series IFP gas shocks for improved ride and offroad performance
• 2.5" Impact extruded aluminum body
• 7/8" hard chrome plated heat-treated alloy steel shaft
• External reservoir design separates shock oil from the high-pressure nitrogen
• Dual Speed Compression Adjuster comes standard
• Fully serviceable for a lifetime of use
• 1-year Manufacturer's Warranty

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 5 inch

Notes

• Trimming may be required.
• Wheel/tire fitment: 37 x 12.5 with 20 x 9 and 5.625" backspace.

Includes

• BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2 (UPC 658848612437)
• BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2 (UPC 658848612444)
• BDS012527, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/ overload (UPC 658848612642)
• BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas (UPC 658848616374)
• BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas (UPC 658848619788)
• FOX88326064, Kit: 2014-2024 Ram 2500, Front, 2.5 Truck Fox Performance Elite Series, R/R, 6 inch Lift, Dual Speed Compression Adjust
• FOX88326102, Kit: 2014-2024 Ram 3500, Rear, 2.5 Truck Fox Performance Elite Series, P/B, 4-6 inchРЎСљ Lift, Dual Speed Compression Adjust
