2019-2024 Ram HD 5.5" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1694H)

BDS 5.5" 4-Link conversion lift kit for the 2019-2024 Ram 3500 gas, clearing up to 37" tires. The front converts the factory stamped steel radius arms to a BDS 4-link with HD upper and lower control arms on 1/4" steel brackets to optimize geometry and limit caster change, plus gas-specific progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar bracket for steering correction, and sway bar relocation. A t-case indexing ring and new transmission crossmember let you keep the factory front driveshaft. The rear uses a high-strength steel lift block and longer u-bolts.

Features

• Heavy duty 4-link improves strength, handling and caster control
• Front high strength progressive rate coil springs
• Front track bar relocation bracket re-positions the axle
• Forged drop pitman arm corrects steering angles
• Front sway bar correction maintains handling performance
• HD transmission crossmember and t-case indexing ring allow use of factory driveshafts
• BDS NX2 nitrogen-charged gas shocks
• Twin-tube design with 10-stage velocity-sensitive valving
• Dual-welded ends for increased strength
• 1-3/8" high-flow piston and self-lubricating seals
• Silver powder coat finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 5.5 inch
• Rear Lift Height: 5 inch

Notes

• Trimming may be required.
• Select the rear box kit based on whether your RAM has the factory rear overload leaf.
• Recommended tire/wheel: 37x12.5 with 20x9 and 5.625" backspacing.

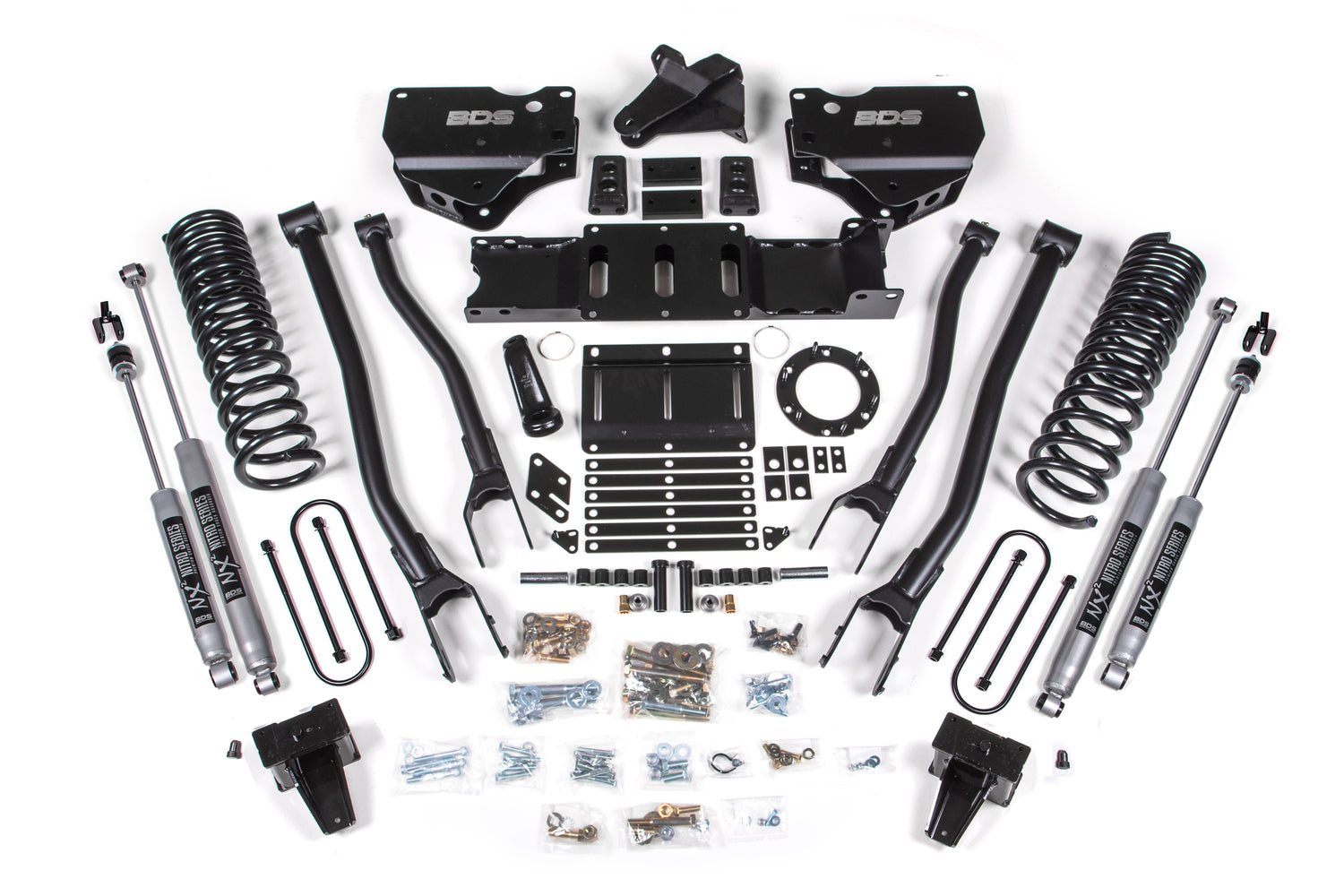

Includes

• BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2 (UPC 658848612437)
• BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2 (UPC 658848612444)
• BDS012526, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/o overload (UPC 658848612635)
• BDS032491, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 Coil Springs - 4 inch Diesel/5.5 inch Gas (UPC 658848616374)
• BDS122626, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Gas (UPC 658848619788)
• BDS85714, Shock - 26.78 x 15.96 x 2-3/8 - S50/EB2 (UPC 711745609549)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
