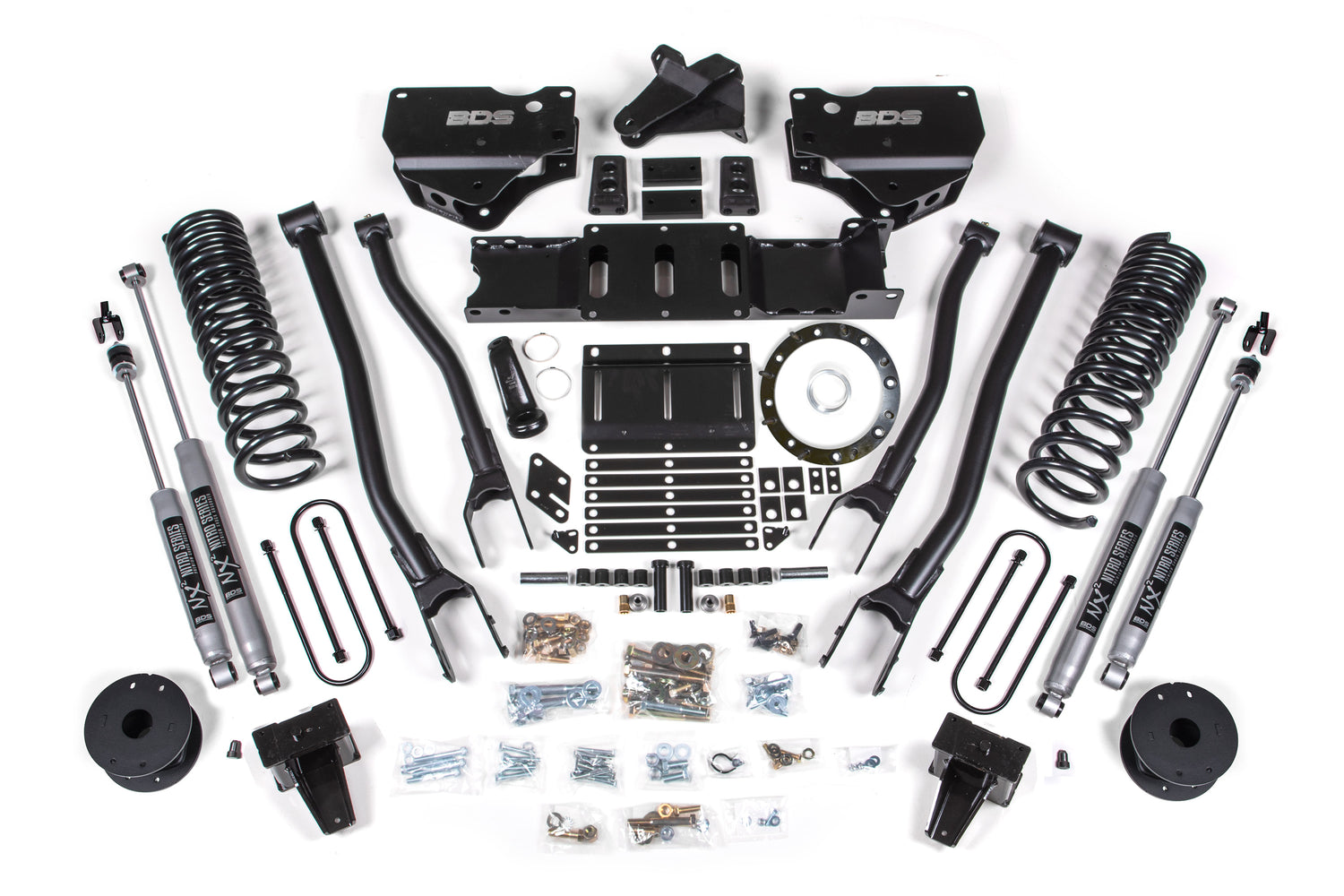

2019-2024 Ram HD 6" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1732FS)

BDS 6" 4-Link lift kit for the 2019-2024 Ram 3500 diesel with factory rear air ride, clearing up to 37" tires. The front converts the factory stamped steel radius arms to a BDS 4-link with HD upper and lower control arms on 1/4" steel brackets to optimize geometry and limit caster change, plus diesel-specific Pro-Ride coil springs, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, and brake line brackets. An ARP-stud t-case indexing ring and high-clearance transmission crossmember clock the transfer case and let you keep the factory driveshafts. The rear runs high-strength steel lift blocks with add-a-leaf springs, heavy duty air bag spacers, and u-bolts.

Features

• Heavy duty 4-link improves strength, handling and caster control
• Front high strength progressive rate coil springs
• Front track bar relocation bracket re-positions the axle
• Forged drop pitman arm corrects steering angles
• Front sway bar correction maintains handling performance
• HD transmission crossmember and ARP-stud t-case indexing ring allow use of factory driveshafts
• Comes standard with 6-bolt indexing ring kit
• FOX 2.0 Performance Series IFP monotube shocks
• 2" Impact extruded aluminum body with CNC machined 6061-T6 aluminum mounting ends
• 5/8" hard chrome plated heat-treated alloy steel shaft
• Race-developed high-flow piston design with application-specific valving
• Long-lasting clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Recommended Tire & Wheel Fitment

• Tire Size: 37x13.5
• Wheel Diameter: 18x9, 20x9
• Back Spacing: 5.625/5.625

Notes

• Fits OE air ride systems only.
• Dually with 8-bolt (Aisin) transmission requires BDS122409 DEF relocation kit.
• Mega Cab with 8-bolt (Aisin) transmission requires BDS122409 DEF relocation kit.
• Vehicles with a manual t-case require BDS122423 manual transfer case shifter extension.
• Vehicles with a 2-piece rear driveshaft (carrier bearing) require BDS122406 carrier bearing drop.

Includes

• BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2 (UPC 658848612437)
• BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2 (UPC 658848612444)
• BDS012626, 2019-2024 Ram 3500 Auto Level Air Suspension 6 inch Rear (UPC 658848612826)
• BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel (UPC 658848616428)
• BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel (UPC 658848619764)
• FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
• FOX98224769, Fox 2.0 Shock 31.02 x 18.95 x 2- EB1/EB1
