2019-2024 Ram HD 6" 4-Link Conversion Kit with FOX 2.0 Performance Shocks (BDS1692FS)

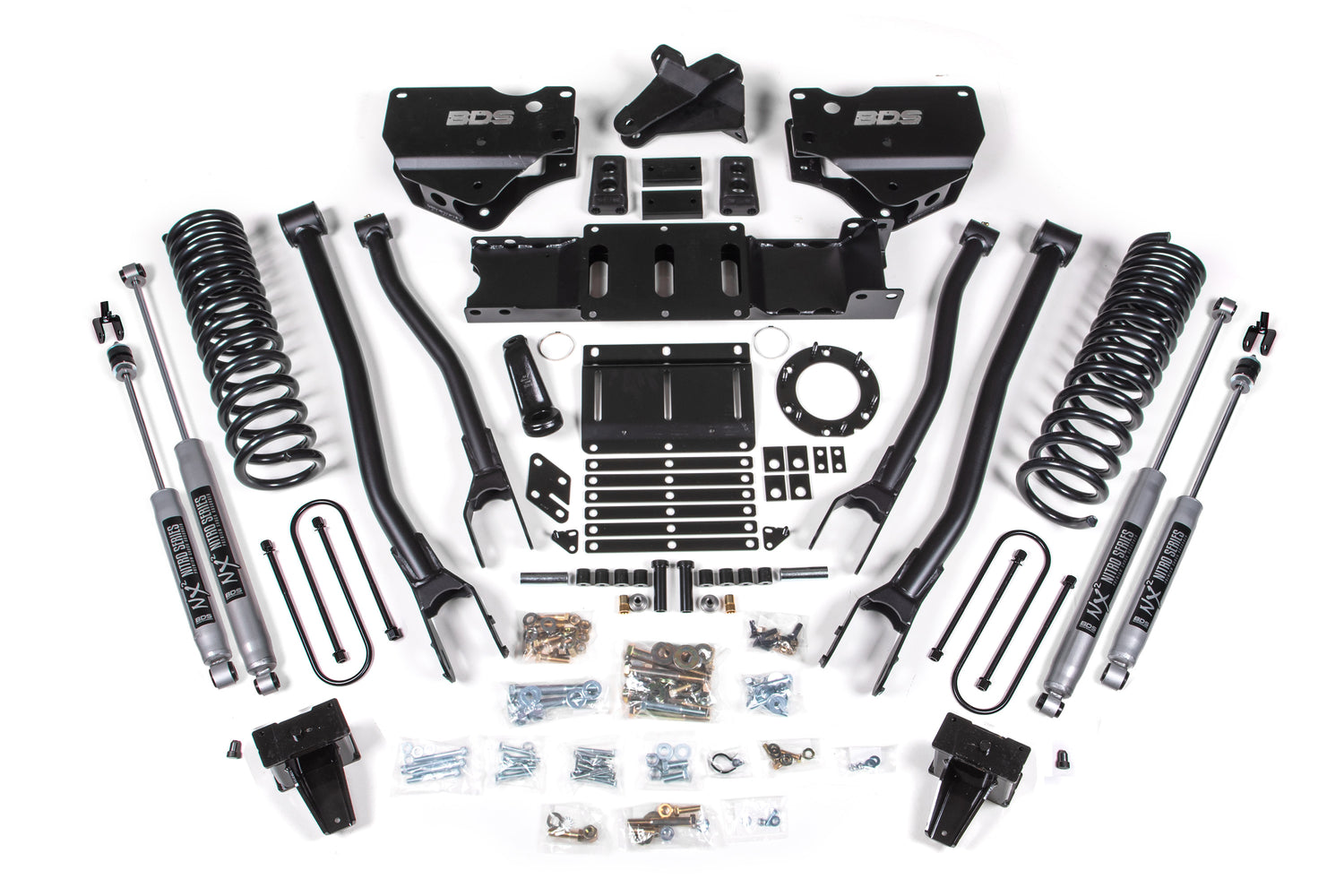

BDS Suspension built this 4-Link conversion lift kit to set your 2019-2024 diesel Ram 3500 up right with 6" of lift and clears up to 37" tires. It comes with everything to do the job: a bolt-on 4-link control arm conversion, progressive-rate Pro-Ride coil springs, a forged drop pitman arm and track bar bracket for steering correction up front, a rear lift block, longer u-bolts out back, a transmission crossmember and t-case indexing ring to run the factory front driveshaft, and a matched set of FOX 2.0 Performance Series shocks.

The 4-link conversion replaces the factory stamped-steel radius arms to optimize suspension geometry, adding strength and stability while limiting caster change through wheel travel.

Features

• Heavy duty 4-link improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX performance series Internal Floating Piston gas shocks to improved ride and offroad performance

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Notes

• Dually with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
• Mega Cab models with 8-bolt Transmission (Aisin), require BDS122409 Def Relocation Kit
• Vehicles equipped with a Manual T-case requires BDS122423 Manual transfer case shifter extension
• Vehicles equipped with a 2-piece rear drive shaft (carrier bearing), require BDS122406 Carrier bearing drop.

Includes

• BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2 (UPC 658848612437)
• BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2 (UPC 658848612444)
• BDS012526, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/o overload (UPC 658848612635)
• BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel (UPC 658848616428)
• BDS122421, 2019-2024 Ram 3500 T-Case Index 18deg - 8 Bolt (UPC 658848619542)
• FOX98224714, Fox 2.0 Shock 26.74 x 16.65 x 2 - S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
