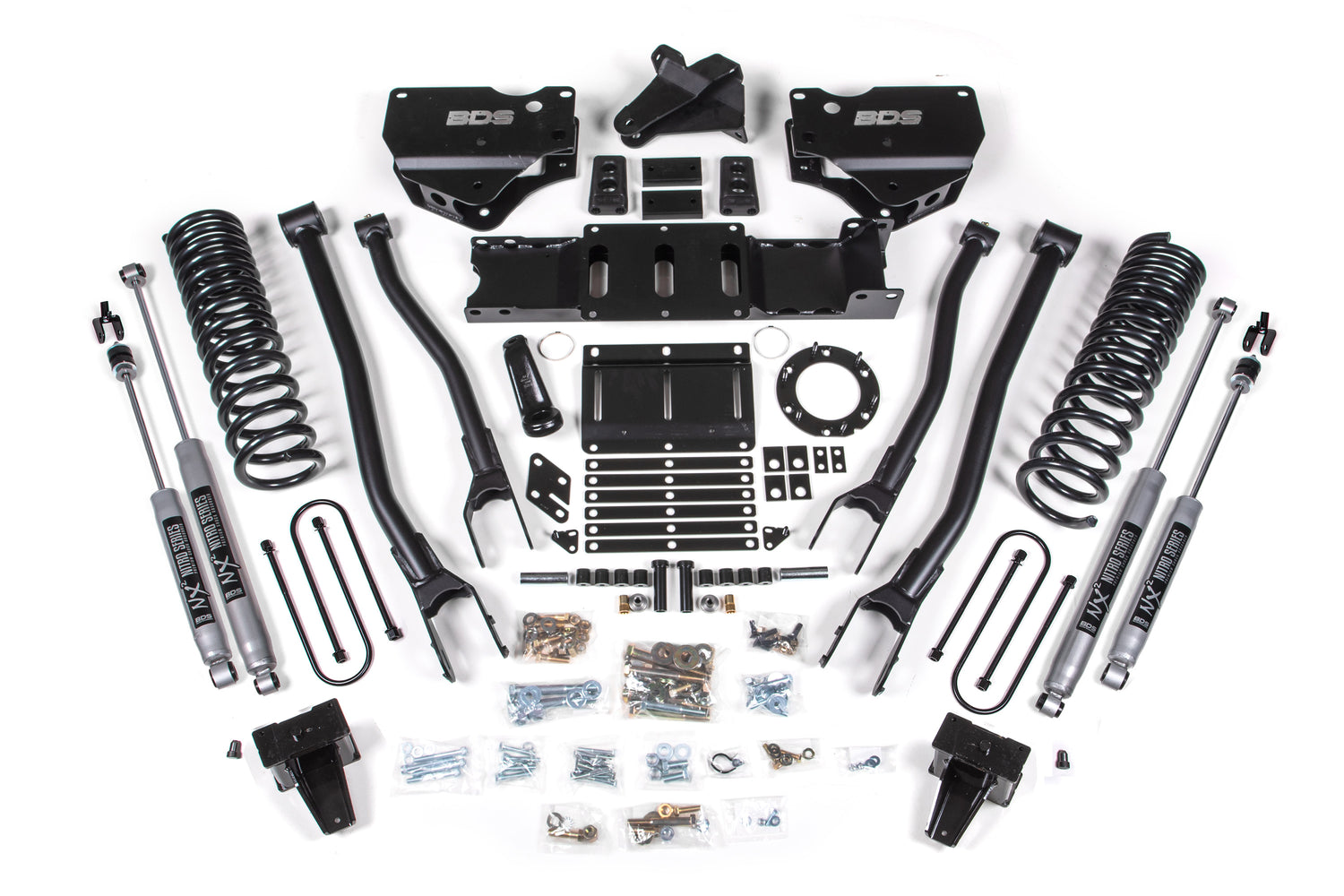

2019-2024 Ram HD 6" 4-Link Conversion Kit with NX2 Nitro Shocks (BDS1690H)

Raise your RAM 3500 diesel to new heights with this BDS 6" lift kit with 4-Link conversion, with clearance for up to 37" tires. Up front it includes diesel-specific Pro-Ride coil springs, 4-Link control arms and conversion brackets, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision tuned NX2 or FOX 2.0 shocks. The 4-link converts the factory stamped steel radius arms to correct axle positioning and limit caster change through wheel travel. At this height the transfer case is indexed using a supplied indexing ring and new transmission crossmember. The rear uses a high-strength steel lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks.

Features

• Heavy duty 4-link improves strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• BDS NX2 gas or FOX Performance Series IFP gas shocks for improved ride and offroad performance
• NX2 shock: nitrogen-charged twin-tube design, 10-stage velocity-sensitive valving, dual-welded ends, 1-3/8" high-flow piston, self-lubricating seals, silver powder coat finish
• Kits come standard with 6-Bolt indexing ring kit

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 inch
• Rear Lift Height: 5 inch

Notes

• Select rear box kit based on whether or not your RAM has the factory rear overload leaf.
• Dually with 8-bolt transmission (Aisin) requires BDS122409 DEF relocation kit.
• Mega Cab with 8-bolt transmission (Aisin) requires BDS122409 DEF relocation kit.
• Vehicles equipped with a manual t-case require BDS122423 manual transfer case shifter extension.
• Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 carrier bearing drop.

Includes

• BDS012433, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit 1of2 (UPC 658848612437)
• BDS012434, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 4-Link Box Kit - 2 of 2 (UPC 658848612444)
• BDS012526, 2019-2024 Ram 3500 5 inch Rear Box 4 3/8 inch U-bolt w/o overload (UPC 658848612635)
• BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 inch Coils - Diesel (UPC 658848616428)
• BDS122624, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 T-Case Index - 6 Bolt - Diesel (UPC 658848619764)
• BDS85714, Shock - 26.78 x 15.96 x 2-3/8 - S50/EB2 (UPC 711745609549)
• BDS85761, Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1 (UPC 711745609709)
