2019-2024 Ram HD 6" Lift Kit with FOX 2.0 Performance Shocks (BDS1685FS)

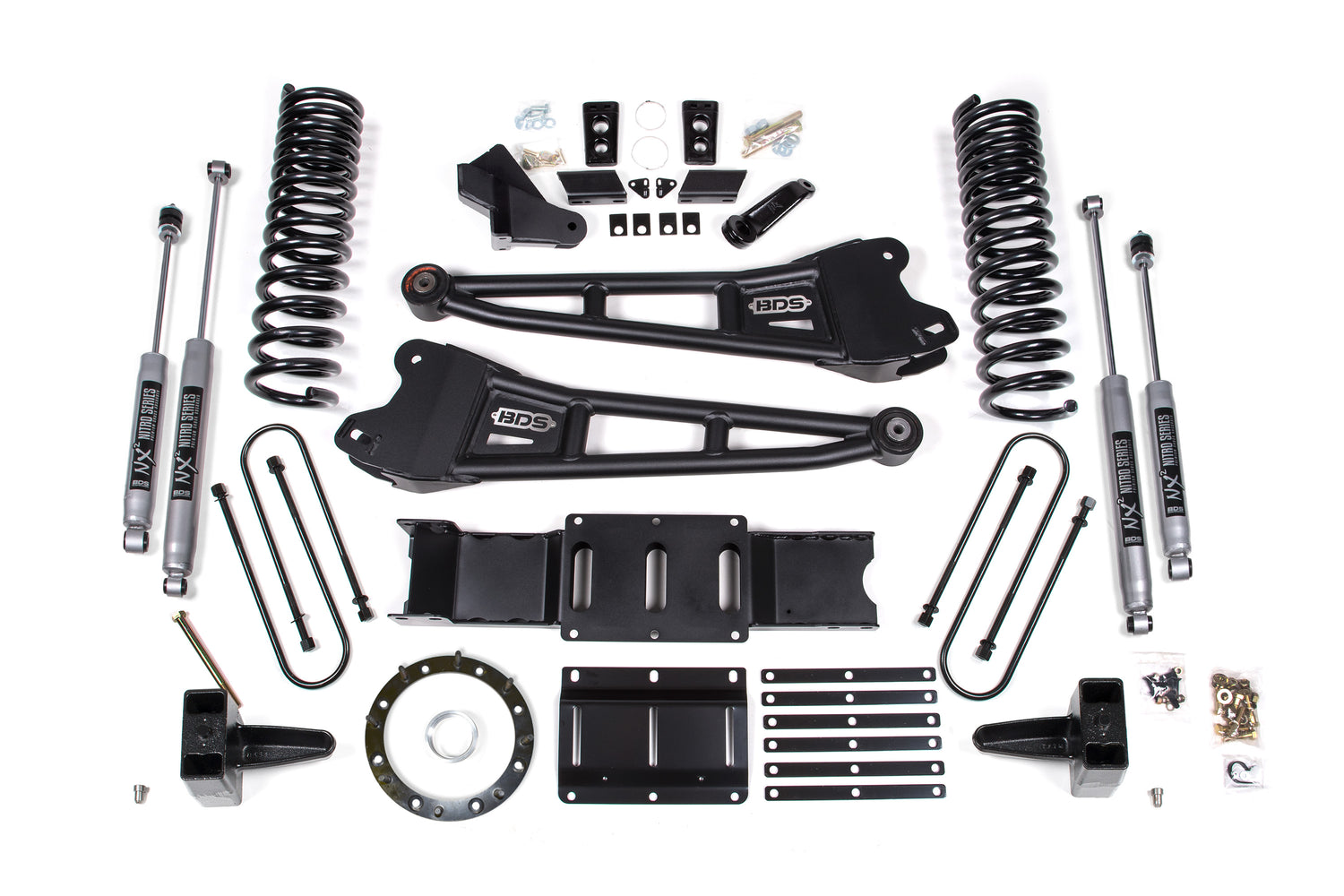

Raise your RAM 3500 diesel to new heights with this BDS 6" radius arm lift kit, with clearance for up to 37" tires. Up front it includes diesel-specific Pro-Ride coil springs, heavy-duty replacement tubular radius arms with caster adjustment, a forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets, and precision tuned NX2 or FOX 2.0 shocks. At this height the transfer case is indexed using a supplied indexing ring and new transmission crossmember. The rear uses a high-strength steel lift block, longer u-bolts, and a matching set of NX2 Nitro or FOX 2.0 Performance shocks. This is the 8-bolt Aisin transmission version, which also includes an internal shaft seal extension and new shaft seal.

Features

• Heavy duty tubular radius arms improve strength, handling and caster control
• Front high strength progressive rate coil springs for a great ride on any terrain
• Front track bar relocation bracket to re-position axle
• Forged drop pitman arm to correct steering angles
• Front sway bar correction to maintain handling performance
• HD transmission crossmember and t-case indexing ring to correct front driveline angles and allow use of factory driveshafts
• 8-bolt kit includes internal shaft seal extension and new shaft seal
• BDS NX2 gas or FOX Performance Series IFP gas shocks for improved ride and offroad performance
• FOX 2.0 shock: 2" Impact extruded aluminum body, IFP monotube design, 6061-T6 mounting ends, 5/8" hard chrome shaft, application-specific valving, clear anodized finish

Specs

• Front Lift Method: Coil Spring
• Rear Lift Method: Block
• Shocks Included: Yes
• Front Lift Height: 6 Inch
• Rear Lift Height: 5 Inch

Notes

• Select rear box kit based on whether or not your RAM has the factory rear overload leaf.
• This kit is for the optional Aisin heavy-duty 6-speed transmission in 3500 trucks, which uses a different 8-bolt transfer case mounting pattern.
• Dually with 8-bolt transmission (Aisin) requires BDS122409 DEF relocation kit.
• Mega Cab with 8-bolt transmission (Aisin) requires BDS122409 DEF relocation kit.
• Vehicles equipped with a manual t-case require BDS122423 manual transfer case shifter extension.
• Vehicles equipped with a 2-piece rear drive shaft (carrier bearing) require BDS122406 carrier bearing drop.

Includes

• BDS012527, 2019-2024 Ram 3500 5 Inch Rear Box 4 3/8 Inch U-bolt w/ overload (UPC 658848612642)
• BDS012614, 2019-2024 Ram 2500 / 2019-2024 Ram 3500 6 Inch Radius Arm Front Box Kit (UPC 658848612758)
• BDS032602, 2013-2024 Ram 3500 / 2014-2024 Ram 2500 6 Inch Coils - Diesel (UPC 658848616428)
• BDS122321, 2013-2024 Ram 2500 /2013-2024 Ram 3500 Radius Arm Box Kit (UPC 658848619429)
• BDS122625, 2019-2024 Ram 3500 T-Case Index 15deg - 8 Bolt (UPC 658848619771)
• FOX98224752, Fox 2.0 Shock 28.25 x 17.15 x 2- S50/EB1
• FOX98224761, Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
