2019-2024 Ram 3500 HD High Output Diesel 4WD 4.5" Coil Lift Kit w/ Falcon 2.1 Shocks (49-19431)

Description

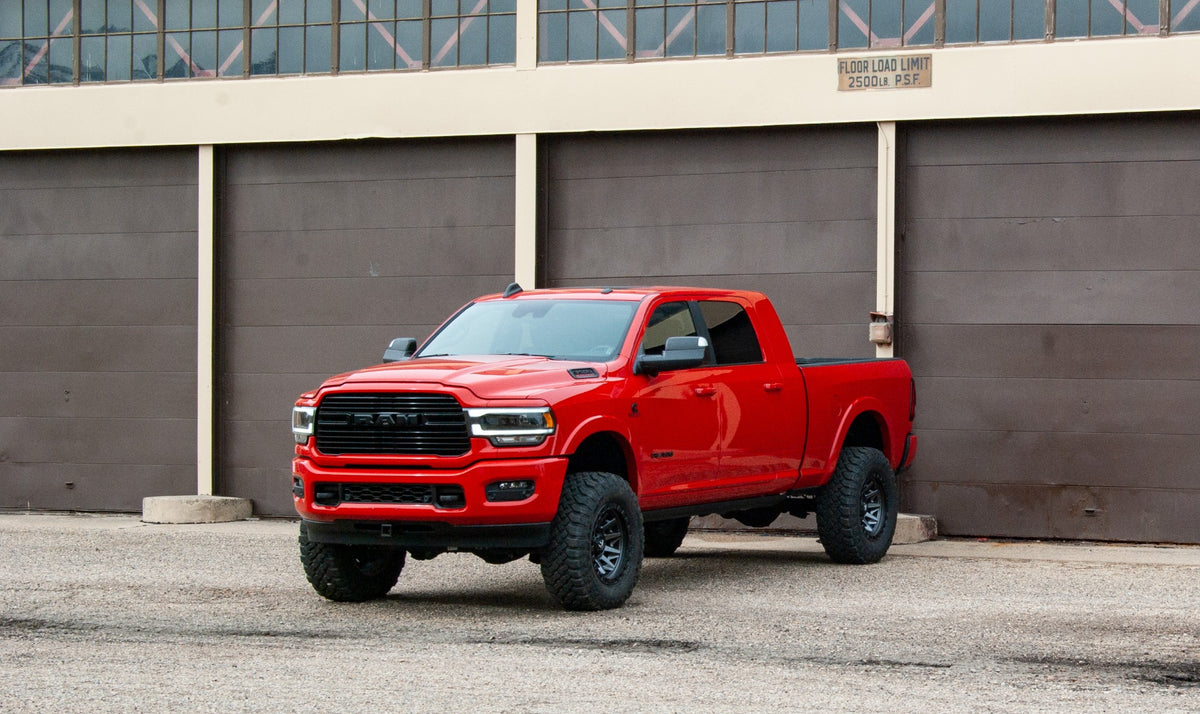

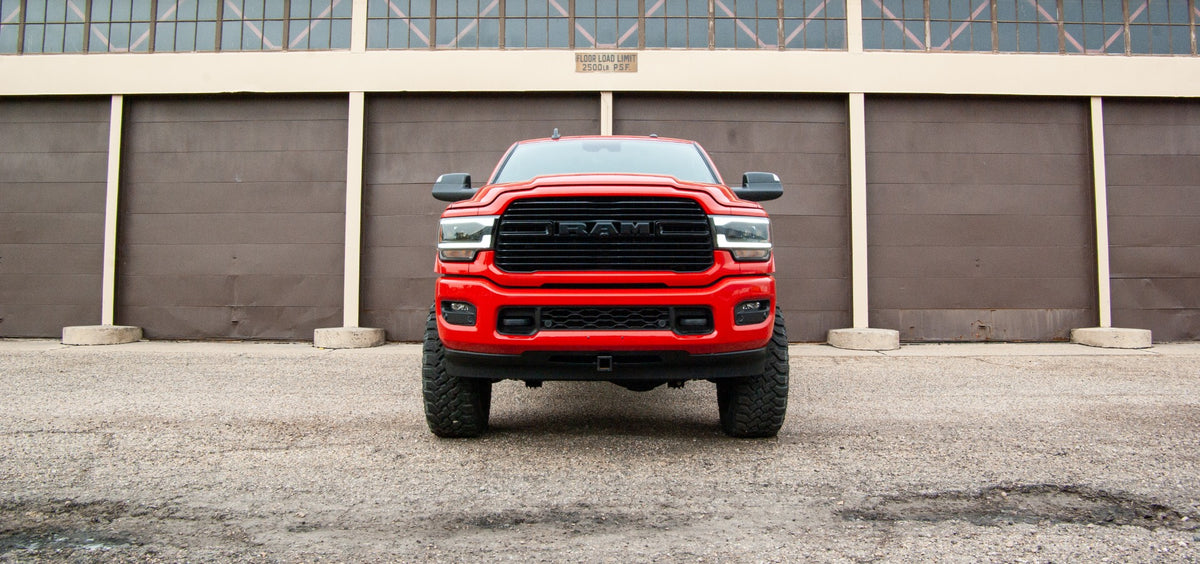

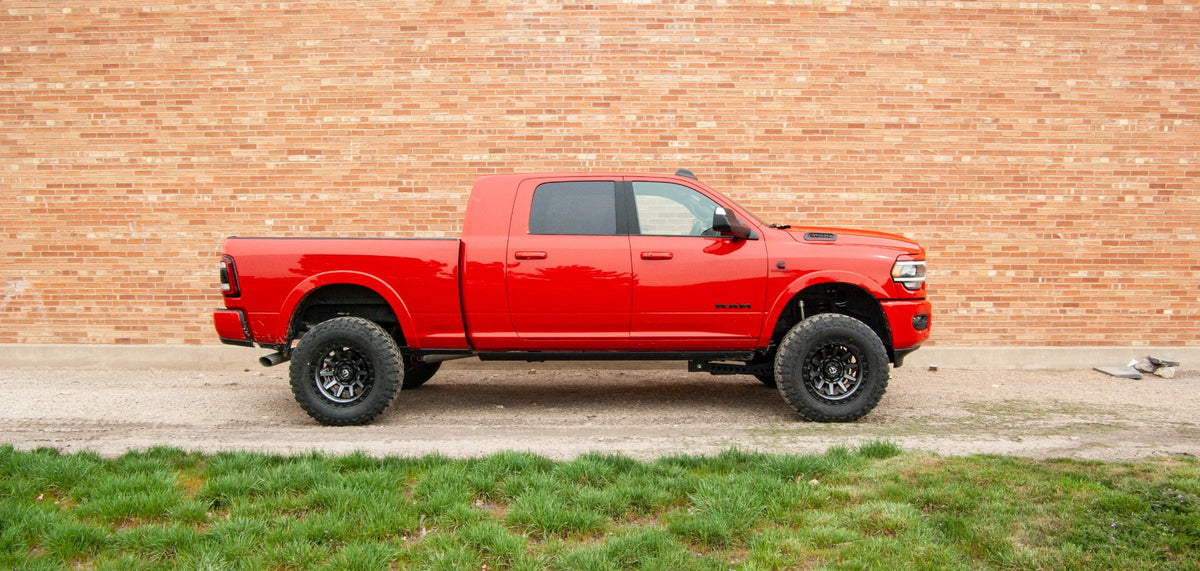

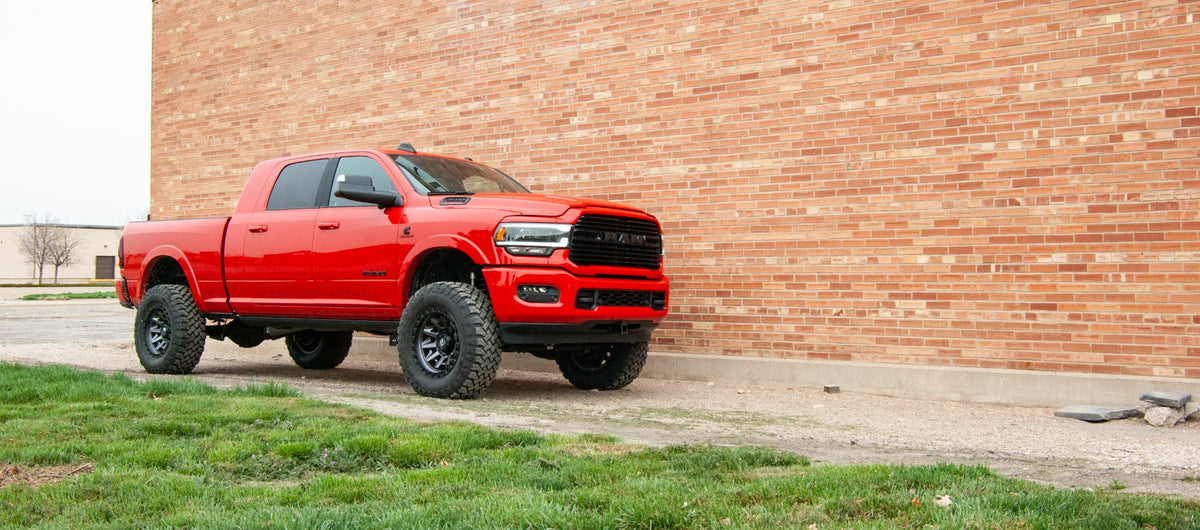

The ReadyLIFT 4.5-inch Coil Spring Lift Kit with Falcon 2.1 shocks is built for 2019-2024 Ram 3500 HD 4WD trucks with the 6.7L Cummins High Output diesel. It replaces the previous 49-19430 kit and adds four vehicle-specific Falcon 2.1 Monotube Shocks for improved ride quality, stability and control. The kit pairs heavy-duty front coil springs and 3-inch rear tapered blocks with a full set of geometry correction parts, including radius arm drops, a track bar bracket, drop pitman arm, sway bar drops and ReadyLIFT's billet Driveline Indexing System, so it clears 37-inch tires without driveline vibration or a vague steering feel.

Features

• 4.5 inches of front lift with 3-inch rear tapered blocks
• Four Ram 3500 specific Falcon 2.1 Monotube Shocks
• Large 2.3-inch shock body for increased oil capacity and heat dissipation
• Heavy-duty 3/4-inch induction-hardened, chrome-plated shock shaft and 6061-T6 billet aluminum piston
• CNC-machined 6061-T6 billet Driveline Indexing System re-clocks the transfer case for improved front driveline angles
• Heavy-duty radius arm drops, track bar bracket, drop pitman arm and sway bar drops maintain suspension and steering geometry
• Heavy-duty transmission crossmember included

Notes

• Ram TSB 03-003-23 (ratchet type click heard in 4WD while turning): recommended driveline for the 68RFE is Adams Driveshaft ASDRAM-1350F-5GEN
• Estimated installation time: 12 hours +/- 1 hour, excluding alignment and wheel/tire assembly. Alignment and headlamp aim should be checked after installation

Compatibility Notes

• Only for the 6.7L Cummins High Output engine with the Aisin AS69RC transmission
• Not compatible with standard output 6.7L diesel engines, HEMI gasoline engines, dually models, Classic models, factory air suspension, Auto Level systems (factory helper bags), or any automatic-leveling rear air suspension
• Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT

Tire Fitment

• Maximum tire size: 37x12.50
• Wheel: 20" x 9" wide, -18 offset

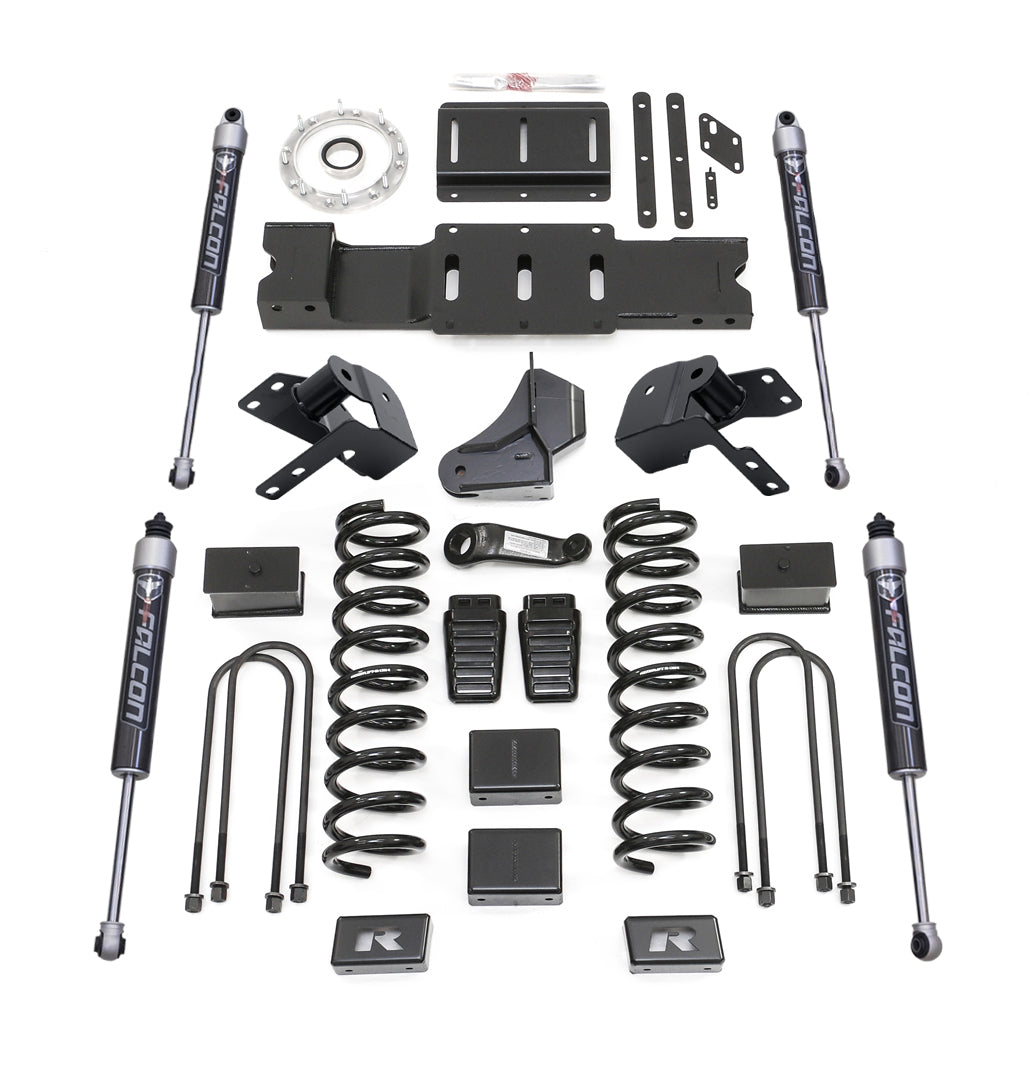

Kit Contents

• 4.5" Front Lift Springs
• 3-Inch Fabricated Rear Blocks
• 19-21 Ram 3500 U-Bolts for 4.5-Inch Kit
• Falcon 2.1 Monotube Shocks, Front (pair)
• Falcon 2.1 Monotube Shocks, Rear (pair)
• Radius Arm Drops, Driver and Passenger
• Front Track Bar Bracket
• Sway Bar Drop Brackets, Driver and Passenger
• Replacement Front Bump Stops
• Rear Bump Stop Extensions
• Drop Pitman Arm
• Transmission Connector Bracket
• Transmission Crossmember
• Transmission Harness Bracket
• Transmission Mounting Plate
• Transmission Mount Spacer
• 8 Bolt Clocking Ring
• Front and Rear Brakeline Brackets
• E-Brake Extension
• Transfer Case Spacer
• Auto Trans Extension Housing Seal (MOPAR)
• Hardware Pack
