2019-2024 Ram HD 4.5" SST Lift Kit (69-19450)

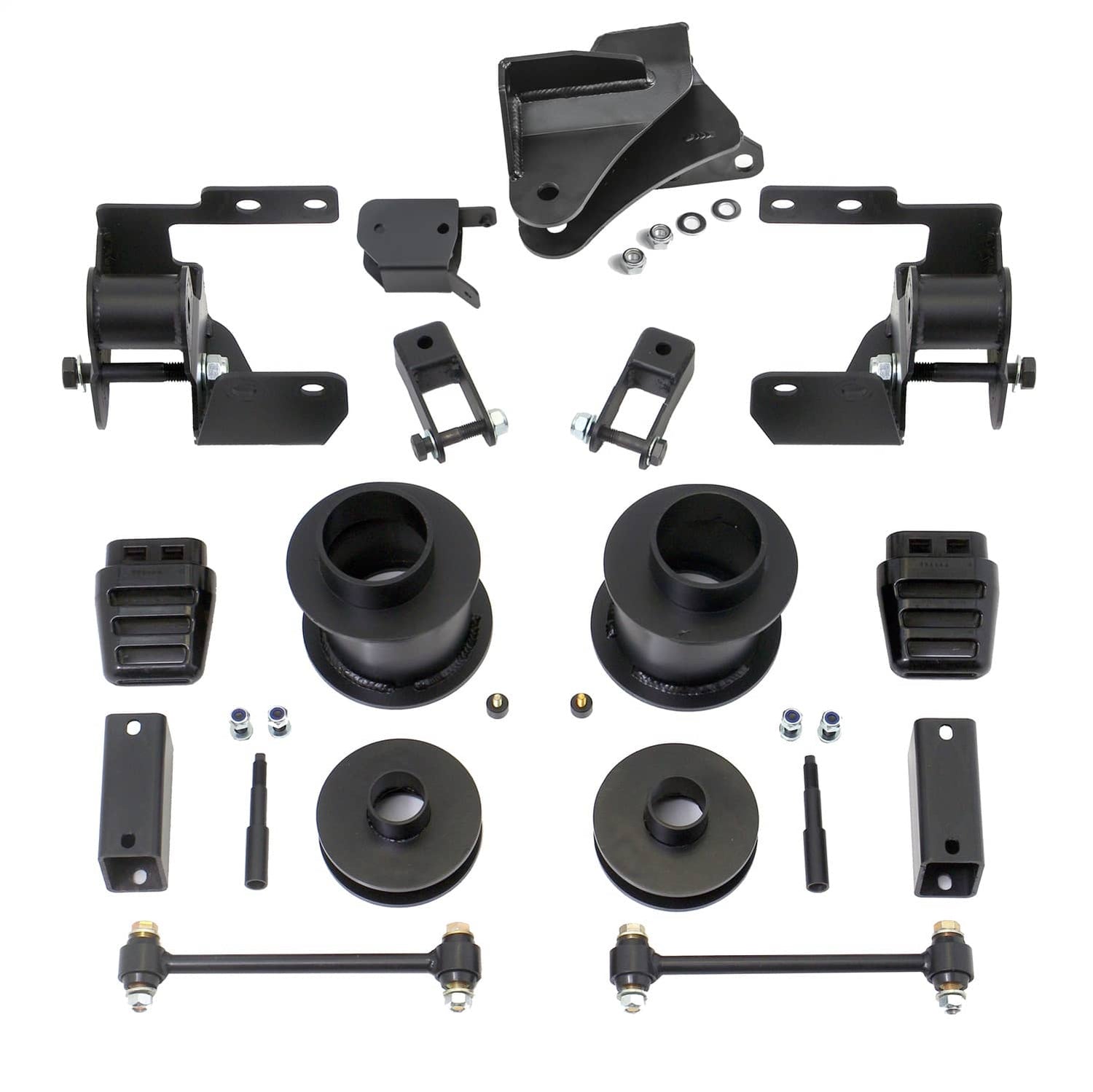

ReadyLIFT provides a great bolt-on lift solution for getting maximum lift suitable for running negative offset wheels with up to a 37 inch tall tire. The all-new 4.5" SST Lift Kit provides 4.5 inches of front lift and 2.5 inches of rear lift, offering a great no-modifications required lift kit that will lift your truck up nicely while keeping the factory ride and handling characteristics. The kit includes heavy-duty fabricated steel coil spring spacers for the front and rear, which have been a part of this kit since release. This comprehensive package now includes both front and rear track bar relocation brackets to ensure perfect suspension geometry and maintain that factory ride. Kit also includes necessary front radius arm drop brackets, front/rear shock extensions, bump stop extensions, longer sway bar end links, and front sway bar frame side spacers.

Features

• Max Lift: 4.5 inches Front / 2.5 inches Rear
• Includes laser cut heavy-duty steel front and rear coil spring spacers
• Includes front and rear track bar relocation brackets to ensure perfect suspension geometry
• Includes necessary front radius arm drop brackets
• Includes front/rear shock extensions, bump stop extensions, longer sway bar end links, and front sway bar frame side spacers
• No cutting of original equipment manufacturer parts or welding required
• Allows for up to 37 inch tall tires

Specs

• Front Lift: 4.5 inches (Coil Spring Spacers)
• Rear Lift: 2.5 inches (Coil Spring Spacers)
• Max Tire Size: 37 inches (Max on up to a -18 offset wheel)

Compatibility Notes

• Fits Dodge Ram HD 2500 4WD new body style trucks with rear coil springs from 2019 to 2025.
• For Diesel Engine trucks only (Not for use with gas engine).
• Not Compatible with Power Wagon or snow prep package or ambulance package equipped vehicles.
• Does not work with Factory Air suspension or Auto Level system (factory helper bags).
• Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT.
• Recommended driveline for the 68RFE transmission is Adams Drive Shaft SKU:ASDRAM-1350F-5GEN.

Notes

• The product is backed by a Limited Lifetime Warranty.
• Your vehicle may require alignment, and headlamps/ADAS systems must be checked and adjusted for proper aim and function after product installation.
• RAM TSB 03-003-23: Symptom/Vehicle Issue: Ratchet Type Click, Clicking Noise Heard In Four Wheel Drive (4WD) While Turning.
