2019-2024 Ram HD 6" Lift Kit w/ Bilstein Shocks Ring and Crossmember Standard Output Diesel Motor (49-19630)

The ReadyLIFT 6-inch Big Lift Kit for 2019-2024 Ram 3500 Standard Output Diesel trucks is a comprehensive suspension overhaul designed for maximum clearance and superior ride quality. Featuring heavy-duty radius arm drop brackets and 6-inch front lift springs, this system provides a commanding stance and the room to run 37-inch off-road tires. The kit includes application-specific geometry corrections, such as a forged dropped pitman arm and a heavy-duty transmission crossmember, ensuring your truck remains stable and centered both on and off the road.

Features

• Driveline Indexing System (DIS) re-clocks the transfer case to optimize driveline angles and eliminate potential vibrations.
• Includes heavy-duty radius arm drop brackets to maintain proper caster and steering geometry.
• Forged dropped pitman arm and track bar relocation bracket ensure precise steering and centered axle alignment.
• Heavy-duty 3/16-inch plate steel front skid plate offers essential protection for the differential and underbody.
• Retains the factory turning radius and overall towing performance of the Ram 3500.
• Fabricated 5-inch tapered rear lift blocks with integrated bump stop landings maintain proper rake.

Notes

• Professional installation is highly recommended due to the complexity of the transfer case clocking and suspension geometry.
• A vehicle alignment and headlamp aim adjustment are required after installation for safety.
• The "Auto 4 Hi" feature should not be used once the lift is installed.

Compatibility Notes

• Fits 2019–2024 Ram 3500 4WD trucks with the Standard Output 6.7L Cummins Diesel and 68RFE transmission.
• Identify the SO engine by the transmission dipstick located on the right (passenger) side of the truck.
• Not compatible with High Output (H.O.) Aisin models, gasoline engines, dually models, or single cab trucks.
• Will not fit trucks equipped with factory automatic-leveling rear air suspension.

Tire Fitment

• Maximum Tire Diameter: 37x13.50.
• Recommended Setup: 37x12.50 tires on a 9-inch wide wheel with -18 offset for a rub-free fit.
• Tire manufacturer dimensions vary; test fitting is recommended before final assembly.

Shock Specs

• Shock Type: Bilstein 5100 Series Monotube Shocks (Front and Rear).
• Design: Monotube gas pressure technology for fade-free performance on or off-road.
• Valving: Digressive valving instantly reacts to changing road conditions for improved control.
• Durability: Zinc-plated bodies with a clear coat finish for high corrosion resistance.

Specs

• Front Lift Height: 6 inches.
• Rear Lift Height: 5 inches.

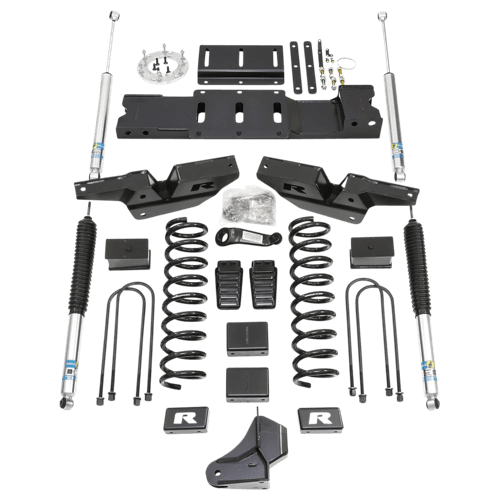

• Kit Contents: Front coil springs, radius arm drop brackets, dropped pitman arm, track bar relocation bracket, DIS transfer case clocking ring kit, transmission crossmember, 5" rear blocks, extended U-bolts, and Bilstein 5100 shocks.
