2019-2024 Ram HD 4WD 6" Lift Kit w/ 5100 Series Bilstein Shocks (49-1961)

The ReadyLIFT 6-inch Lift Kit with Bilstein Shocks and Driveline Indexing Kit is a premium, all-new 4-corner coil spring suspension system designed for the Ram 2500 HD. It provides a substantial 6-inch front lift and 3.5-inch rear lift. This kit addresses potential driveline vibration issues common after lifting by including the Driveline Indexing System (DIS), which features a CNC-machined billet Aluminum transfer case clocking ring and a new heavy-duty transmission crossmember to re-position the transmission and pinion angle for a smoother driving experience. The kit includes Bilstein 5100 series shocks, tuned specifically for the Ram 2500 HD, ensuring a great ride and controlled performance.

Features

• Provides 6-inch front lift and 3.5-inch rear lift.
• Includes the Driveline Indexing System (DIS) with a transfer case clocking ring and a new heavy-duty transmission crossmember.
• Comes with four Bilstein 5100 series shocks tuned specifically for the Ram 2500 HD.
• Features heavy-duty radius arm drop brackets.
• Includes heavy-duty fabricated steel front and rear track bar brackets.
• Comes with a dropped cast iron Pitman arm.
• Includes front and rear sway bar relocation brackets and bump stop extensions.

Notes

• The Driveline Indexing System (DIS) is included to address driveline angle sensitivity after lifting, which can cause a slight vibration.
• A special note addresses the RAM TSB 03-003-23 for a clicking noise heard in 4WD while turning.

Compatibility Notes

• For use on Diesel engine Ram 2500 4WD HD trucks only.
• Does not work with Factory Air suspension or Auto Level system (factory helper bags).
• Single Cab configuration has not been validated for fitment and drivability by ReadyLIFT.

Tire Fitment

• Maximum tire diameter is 37x13.50.
• Maximum recommended wheel size is 9.5-10 inches wide with -18 offset.

Specs

• Front Lift: 6.0 inches
• Rear Lift: 3.5 inches
• Maximum Tire Diameter: 37x13.50
• Shock Type: Bilstein 5100 series Front and Rear Shocks

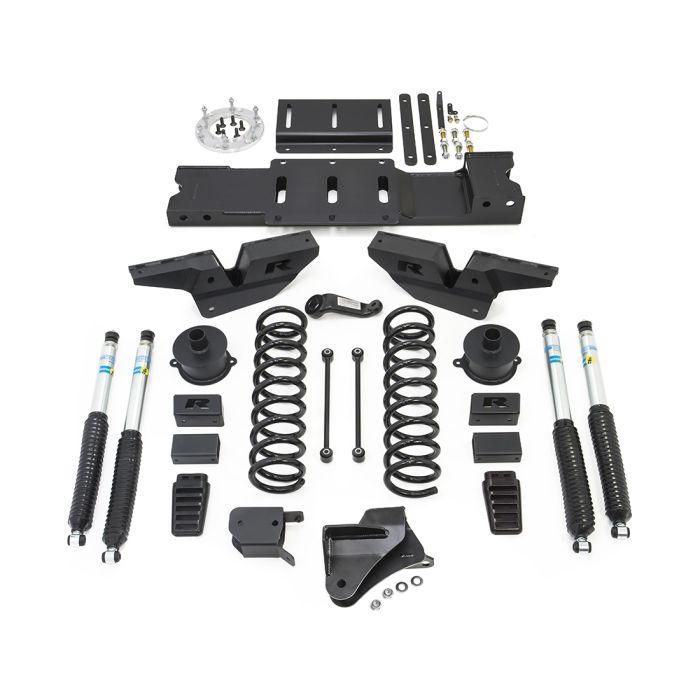

• Kit Contents: 6-inch lift front springs, 3.5-inch lift rear coil spring spacers, Radius arm drop brackets, Pitman arm, Bump stops and extensions, Front sway bar spacers, Rear sway bar end links, Front track bar relocation bracket, Transmission crossmember, Transfer case clocking ring, and Bilstein 5100 series shocks.
