2019-2024 Ram HD 6" MAX3.3 Suspension System w Falcon 3.3 Shocks (43-19642)

The ReadyLIFT 6-inch MAX3.3 Suspension System for the 2019-2024 Ram 2500 with Standard Output Diesel motor is an all-inclusive performance lift kit. It features Falcon 3.3 Fast Adjust shocks for precise ride tuning and heavy-duty tubular radius arms to maintain proper alignment. To ensure a smooth, vibration-free ride, the kit includes a CNC-machined Driveline Indexing System (DIS) that re-clocks the transfer case. This system provides the clearance needed for aggressive 37-inch tires while maintaining factory turning radius and articulation for superior performance on and off-road.

Features

• Provides a 6-inch front lift and a coil spring rear lift for a perfectly leveled stance.
• Includes Falcon 3.3 Fast Adjust Dampers with two separate knobs for fine-tuning handling.
• Driveline Indexing System (DIS) re-clocks the transfer case to improve front output shaft angles and reduce vibration.
• Heavy-duty tubular radius arms correct caster angles and allow for additional tire clearance.
• Maintains factory suspension geometry, articulation, and turning radius.
• Includes a forged dropped pitman arm and heavy-duty track bar brackets for precise steering control.
• Equipped with bump stop extensions to prevent over-compression of the shocks.

Notes

• Designed for smooth operation on or off-road by addressing driveline angle sensitivity.
• Vehicle alignment, headlamp aim, and Advanced Driver Assistance Systems (ADAS) should be adjusted following installation.
• Recommended driveline for the 68RFE transmission is the Adams Drive Shaft (SKU: ASDRAM-1350F-5GEN).

Compatibility Notes

• Fits 2019-2024 Ram 2500 4WD models with the Standard Output Cummins turbodiesel engine.
• Not compatible with HEMI gasoline engines, dually models, or Classic models.
• Not compatible with models equipped with factory automatic-leveling rear air suspension.

Tire Fitment

• Maximum Tire Size: 37x12.50.
• Recommended Wheel: 9-inch wide wheel with +01 to +18 offset for no rubbing.
• Compatible with up to -18 offset wheels on a 9-inch wide rim.

Shock Specs

• Shock Type: Falcon 3.3 Fast Adjust Dampers (Front and Rear).
• Adjustability: 3-position Fast Adjust Knob (Soft, Custom, Firm) and 8-position Micro Adjust Dial.
• Technology: Volume Optimized Damping (VOD) with a digressive linear piston for reduced body roll and bottom-out protection.
• Construction: Hard-anodized large bore 6061-T6 aluminum shock body for impact and corrosion resistance.
• Fluid: Red Line high VI shock oil ensures consistent performance from -50°F to 450°F.

Specs

• Lift Height: 6 inches (Front) / 4 inches (Rear).
• DIS Material: CNC-machined 6061-T6 Billet Aluminum.
• Radius Arm Design: Inward-formed tubular steel for increased tire clearance.

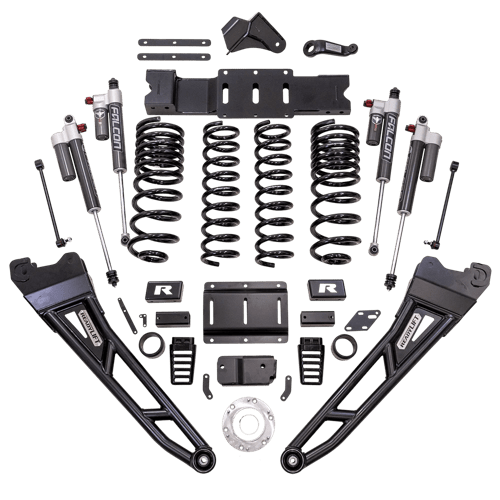

• Kit Contents: 6" Front Lift Springs, 4" Rear Lift Spacers, Falcon 3.3 Shocks, Tubular Radius Arms, Front/Rear Track Bar Brackets, Sway Bar Drop Brackets/Endlinks, Driveline Indexing System, Dropped Pitman Arm, and Bump Stop Extensions.
