2019-2024 Ram HD S2 Sports Reverse Kit (BAJ448038)

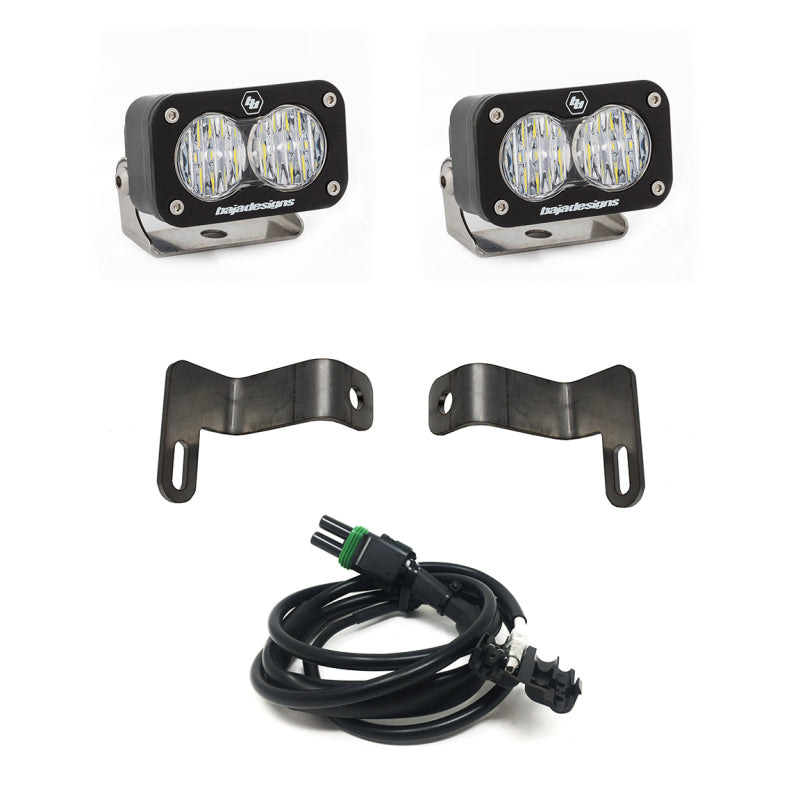

The S2 Sport Reverse Kit for the 2019+ Ram 2500 and 3500 is a compact yet powerful lighting solution designed to solve the common issue of inadequate factory backup lights. This kit features dual S2 Sport LED pods with Wide Cornering (W/C) optics, providing an expansive, smooth field of light that illuminates the area directly behind and to the sides of the truck. This setup is ideal for increasing safety during night-time reversing, trailer hitching, or illuminating a campsite, and significantly improves the clarity of the rear-view camera.

Features

• Vehicle-specific mounting brackets designed for a clean, low-profile rear installation
• Wide Cornering (W/C) optics provide a 42-degree flattened horizontal beam for maximum peripheral coverage
• MoistureBlock technology ensures the units are waterproof, rainproof, and submersible
• CopperDrive system manages thermal levels to maintain consistent 100 percent power output
• 5000K daylight color temperature helps reduce eye strain and enhances rear-view camera performance
• Hard-coated polycarbonate lenses and powder-coated cast aluminum housings
• uService design allows for user-replaceable lenses and optics

Specifications

• Lumens: 1,581 per light
• Total Kit Lumens: 3,162
• Wattage: 12.4W per light
• Amperage: 0.9A per light
• IP69K waterproof rating
• IK10 compliant for mechanical impact resistance

Notes

• Designed specifically for 2019-current Ram 2500 and 3500 Heavy Duty models (including Big Horn, Laramie, and Limited).
• The compact 3-inch wide footprint of the S2 allows for powerful lighting without a bulky visual presence.
